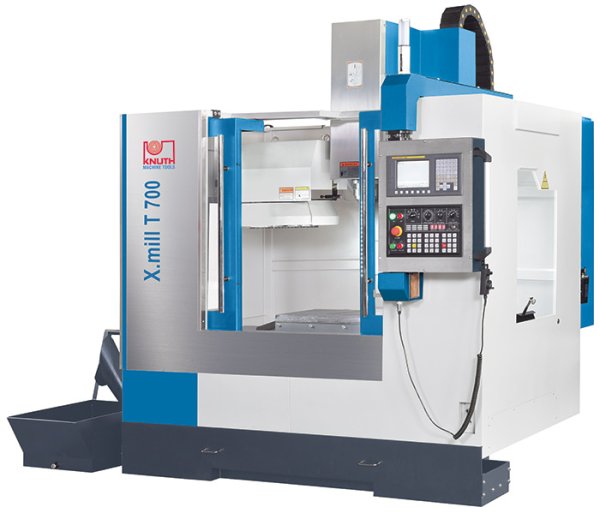

X.mill T Series

The X.mill T series is the newest generation of our vertical machining centers, with modern high-performance compact CNC controls. Whether equipped with Siemens or Fanuc controls, this series offers an excellent price-performance ratio. Wide range of accessories for easy adaptation to meet your specific requirements. Using state-of-the-art FEM Analysis Software, we were able to achieve the highest machine frame rigidity in this machine class
The X.mill T series is the newest generation of our vertical machining centers, with modern high-performance compact CNC controls. Whether equipped with Siemens or Fanuc controls, this series offers a...
read more
Models
X.mill T 1000 FA X.mill T 1000 SI X.mill T 700 FA X.mill T 700 SI X.mill T 800 FA X.mill T 800 SI
Table dimensions
43 in x 22 in
43 in x 22 in
35 in x 18 in
35 in x 18 in
35 in x 22 in
35 in x 22 in
Travel X-axis
39.4 in
39.4 in
27.6 in
27.6 in
31.5 in
31.5 in
Travel Y-axis
22 in
22 in
18 in
18 in
20 in
20 in
Travel Z-axis
22 in
22 in
22 in
22 in
22 in
22 in
Spindle speed
10000 rpm
10000 rpm
10000 rpm
10000 rpm
10000 rpm
10000 rpm
Spindle mount
SK 40 ISO 7388-1 (DIN 69871)
SK 40 ISO 7388-1 (DIN 69871)
SK 40 ISO 7388-1 (DIN 69871)
SK 40 ISO 7388-1 (DIN 69871)
SK 40 ISO 7388-1 (DIN 69871)
SK 40 ISO 7388-1 (DIN 69871)
Rapid feed X-, Y-, Z- axis
1417 in/min
1417 in/min
1417 in/min
1417 in/min
1417 in/min
1417 in/min
Number of tool stations
20 positions
20 positions
20 positions
20 positions
20 positions
20 positions
Weight
10120 lbs
10120 lbs
9240 lbs
9240 lbs
9680 lbs
9680 lbs
View Machine
View Machine
View Machine
View Machine
View Machine
View Machine
-
Table dimensions
Travel X-axis
Travel Y-axis
Travel Z-axis
Spindle speed
Spindle mount
Rapid feed X-, Y-, Z- axis
Number of tool stations
Weight
X.mill T 1000 FA
Table dimensions 43 in x 22 in
Travel X-axis 39.4 in
Travel Y-axis 22 in
Travel Z-axis 22 in
Spindle speed 10000 rpm
Spindle mount SK 40 ISO 7388-1 (DIN 69871)
View Machine
X.mill T 1000 SI
Table dimensions 43 in x 22 in
Travel X-axis 39.4 in
Travel Y-axis 22 in
Travel Z-axis 22 in
Spindle speed 10000 rpm
Spindle mount SK 40 ISO 7388-1 (DIN 69871)
View Machine
X.mill T 700 FA
Table dimensions 35 in x 18 in
Travel X-axis 27.6 in
Travel Y-axis 18 in
Travel Z-axis 22 in
Spindle speed 10000 rpm
Spindle mount SK 40 ISO 7388-1 (DIN 69871)
View Machine
X.mill T 700 SI
Table dimensions 35 in x 18 in
Travel X-axis 27.6 in
Travel Y-axis 18 in
Travel Z-axis 22 in
Spindle speed 10000 rpm
Spindle mount SK 40 ISO 7388-1 (DIN 69871)
View Machine
X.mill T 800 FA
Table dimensions 35 in x 22 in
Travel X-axis 31.5 in
Travel Y-axis 20 in
Travel Z-axis 22 in
Spindle speed 10000 rpm
Spindle mount SK 40 ISO 7388-1 (DIN 69871)
View Machine
X.mill T 800 SI
Table dimensions 35 in x 22 in
Travel X-axis 31.5 in
Travel Y-axis 20 in
Travel Z-axis 22 in
Spindle speed 10000 rpm
Spindle mount SK 40 ISO 7388-1 (DIN 69871)
View Machine
