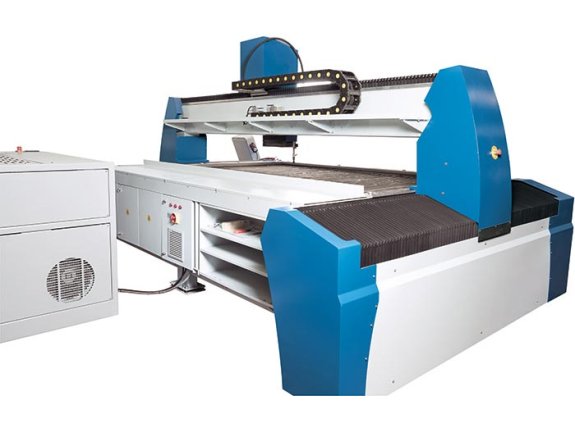

Water-Jet 5X 3020

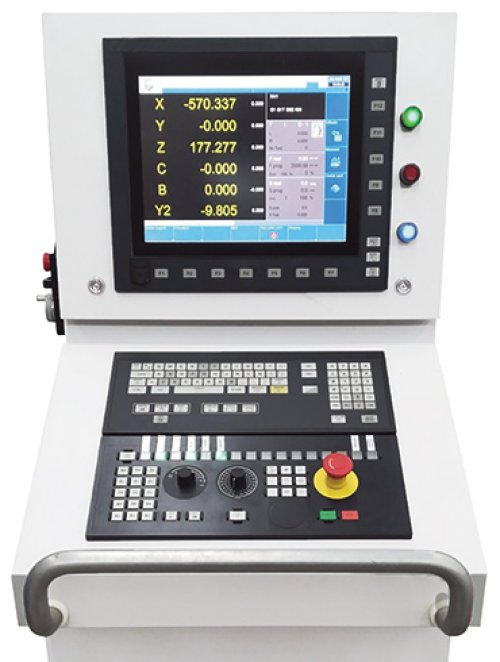

FAGOR 8065 CNC

FAGOR CNC 8065

CNC CONTROL UNIT AND CAD/CAM SOFTWARE Powerful CNC with ergonomic design

• New series with touchscreen monitor, integrated mouse and USB port
• Rugged design with component technology that meets IP65 (NEMA12) standards
• Higher precision: Pre-programmed travel direction reversals are analyzed up front in order to adjust machining conditions according to the machine dynamics

Software:

• The IGEMS Software package allows you to create and import 2D and 3D drawings, define tool paths, and arrange nesting layouts

IGEMS CAD

• Multi-layered 2D drawings with great features
• We offer you a complete 2D CAD with layers, dimensions and many more features for making perfect drawings.

IGEMS CAM

• Geometry optimization for damaged drawings
• This module includes different applications for optimizing the contour. It will reduce the number of objects in a contour without destroying the measurements and can be used to remove overlapping geometries or to clean up geometries with gaps and other defects.

Data Exchange

• Import more file types
• With the DataExchange module you can import several other file formats in addition to the standard .dxf, .dwg, .acd & dig files. With this module, you can import .wmf, .ps, .eps, .gen, .geo, .igs, .mec, .ord & .tag files. You can also import your NC code back into igems with the special command NC reader.

IGEMS AWJ

• Optimized technology for even better cuts
• This is a result of our focused efforts in the area of abrasive water-jet technology. This technology needed optimized cutting speeds in order to provide the perfect combination of high-quality cutting and high cutting speeds. We started to develop this solution already in 1989. Today, this technology is successfully deployed on machines in all parts of the world.
• The AWJ module accounts for parameters such as material thickness, material quality, pressure, abrasive flow etc. to optimize the cutting speed. The module is essential for cutting with water-jet machines.

IGEMS 5X-CAM

• 2D and 3D Cutting
• Now you can import 3D files into IGEMS and place tool paths on your model’s contour. We worked on this feature during the last year and are very proud of the result.
• There are many settings in 3D-Software, but we believe in simplicity of use. So we streamlined the system and reduced complexity to provide you with an easy to use 3D software for quick application of tool paths.
• The module includes functions for defining surfaces/edges, adding tool paths and customizing leads, collision control, etc. This module is part of the regular Bevel module and can be downloaded by any user with an Update subscription.

IGEMS Nesting (Level 1)

• Semi-automatic nesting commands
• The nesting modules let you arrange parts in an ideal layout on a sheet in order to reduce waste to a minimum. Nest 1 includes several semi-automatic nesting strategies, including circular, rectangular and individual nesting patterns.
