Plasma-Jet TrueCut 2040 H

SKU : 144015

The machines of the Plasma-Jet TrueCut H-series are highly specialized cutting systems for the production or individual production of complex parts. This series is designed for high loads in multi-shift operation and is equipped with the latest Hypertherm technology and high-quality components.The extensive optional equipment enables versatile, tailor-made solutions for specific customer requirements. For example with several torches, oxy-fuel cutting heads, miter cuts or pipe processing units.

  • Independent table for high accuracy
  • Powerful ProNest LT nesting software for optimised production
  • Customised for the use of HYPERTHERM plasma sources (option)
  • High productivity, designed for multi-shift operation
  • Extensive options for customised solutions
Working Area
Cutting Width 79 in
Cutting length 157 in
Table height 28 in
Table load capacity 106 lbs/ft²
Rapid feed 709 in/min
Measures and Weights
Weight 9020 lbs

Construction

  • Stand-alone cutter table features rigid steel construction for high load capacity
  • Stand-alone table eliminates thermal and mechanical influences on the plasma cutter system
  • Table is prepared for dust collection system, being equipped with electro-pneumatically actuated suction flaps for an efficient fume extraction of the segment where the cutting process is momentary in action

Transmission and drives

  • Dynamic AC servo drives from Panasonic on all axes with maintenance-free, zero-backlash planetary gears
  • Low-wear and low-maintenance helical gears are designed for continuous operation
  • Linear guides on all axes are designed for long life and smooth motion even at high speeds. Linear guides on X and Y axes are 0.79/1.18" wide
  • The structure of the machine and the selection of components are designed to enable multi-shift operation

Cutting head

  • Z axis with ball screw transmission and servo-driven automatic torch height control
  • Quick-coupling for cutter head allows quick head exchanges for reduced tooling time
  • Use the existing cutting parameters stored in the control to find the optimum cut
  • Optimum bed speed even for fine contours and tight radii
  • Available with 5-axis cutter head, tube cutter, and many more options

Control

  • CNC controller from Hypertherm - Edge CONNECT
  • The ProNest LT Software is delviered as standard

Table is prepared for filter system (automatic closure control) SKU:
Table is prepared for filter system (automatic closure control)
Table is prepared for filter system (automatic closure control) SKU:
Panasonic servo-motors and drives
Panasonic servo-motors and drives SKU:
Automatic torch height control with Hypertherm THC sensor
Automatic torch height control with Hypertherm THC sensor SKU:
Cutter torch with magnetic coupling and crash sensor
Cutter torch with magnetic coupling and crash sensor SKU:

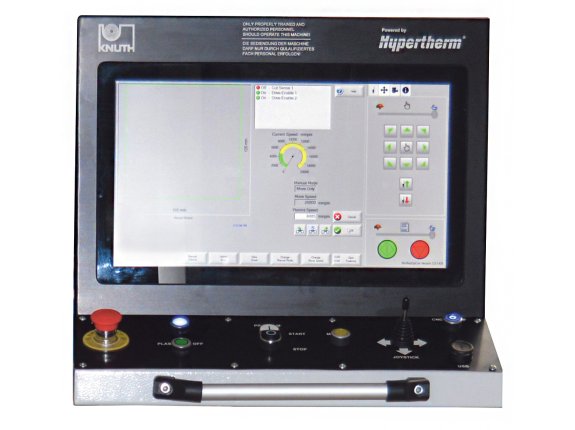

Hypertherm Edge Connect CNC Unit
Hypertherm Edge Connect CNC Unit SKU:

Hypertherm EDGE® Connect

  • EDGE® Connect, Hypertherm’s newest Computer Numeric Control (CNC) platform, delivers unmatched reliability, powerful embedded capabilities, and a high level of customizability
  • With Patented CutPro® Wizard, even new operators can be cutting production parts in less than five minutes
  • On-screen Software Operator’s Console (Soft OpCon) allows easy setup and operation of cutting station and manual motion
  • Integrated communications with plasma and torch height control systems deliver automated and expert control using installed factory or custom cut charts
  • Custom cut charts can be created and controlled in the part program or made available to the CutPro Wizard
  • EDGE Connect runs on the Windows® 10 Enterprise operating system

Phoenix® buit-in software

  • Phoenix® software is the core operational interface and is common across the entire Hypertherm family of CNC systems
  • Contains built-in cut charts for automatically setting process parameters for mild steel, stainless, and aluminum to enable consistently optimized cutting performance
  • The wizards and diagnostic support tools enable easy setup, use and rapid troubleshooting
  • Built-in help and cutting optimization tips for improving table performance and process outcomes at the touch of a button
19” touchscreen by ELO
19” touchscreen by ELO SKU:
Ethercat-E
Ethercat-E SKU:
Laser pointer
Laser pointer SKU:
ProNest LT
ProNest LT SKU:

Hypertherm Edge Connect CNC Unit

Hypertherm EDGE® Connect

  • EDGE® Connect, Hypertherm’s newest Computer Numeric Control (CNC) platform, delivers unmatched reliability, powerful embedded capabilities, and a high level of customizability
  • With Patented CutPro® Wizard, even new operators can be cutting production parts in less than five minutes
  • On-screen Software Operator’s Console (Soft OpCon) allows easy setup and operation of cutting station and manual motion
  • Integrated communications with plasma and torch height control systems deliver automated and expert control using installed factory or custom cut charts
  • Custom cut charts can be created and controlled in the part program or made available to the CutPro Wizard
  • EDGE Connect runs on the Windows® 10 Enterprise operating system

Phoenix® buit-in software

  • Phoenix® software is the core operational interface and is common across the entire Hypertherm family of CNC systems
  • Contains built-in cut charts for automatically setting process parameters for mild steel, stainless, and aluminum to enable consistently optimized cutting performance
  • The wizards and diagnostic support tools enable easy setup, use and rapid troubleshooting
  • Built-in help and cutting optimization tips for improving table performance and process outcomes at the touch of a button
