Knuth

KNWP H Series

This series of hydraulic workshop presses with motor drive are designed with a stable portal with adjustable, open support table and are suitable for applications such as pressing in and out bearings, for assembly and straightening work or for testing workpieces. The laterally positionable working cylinder facilitates set-up without the workpiece having to be moved. These presses are almost indispensable in technical workshops and maintenance departments.
This series of hydraulic workshop presses with motor drive are designed with a stable portal with adjustable, open support table and are suitable for applications such as pressing in and out bearings,...
read more
Models
attributes.MEG-000008.MER-002612
33 in
40 in
43 in
37 in
40 in
61 in
61 in
61 in
Pressure force
66 t
110 t
176 t
88 t
132 t
176 t
198 t
220 t
Operating pressure (max.)
5.800 psi
5.800 psi
5.800 psi
5.800 psi
5.800 psi
5.800 psi
5.800 psi
5.800 psi
Stroke
15.7 in
15.7 in
15.7 in
15.7 in
15.7 in
15.7 in
15.7 in
15.7 in
Forward motion speed
0.24 in/s
0.28 in/s
0.24 in/s
0.21 in/s
0.23 in/s
0.24 in/s
0.31 in/s
0.25 in/s
Press speed
0.24 in/s
0.28 in/s
0.24 in/s
0.21 in/s
0.23 in/s
0.24 in/s
0.31 in/s
0.25 in/s
Return speed
0.39 in/s
0.53 in/s
0.39 in/s
0.33 in/s
0.37 in/s
0.39 in/s
0.52 in/s
0.43 in/s
Motor rating hydraulic pump
4 Hp
5.4 Hp
7.4 Hp
4 Hp
10.1 Hp
7.4 Hp
10.1 Hp
10.1 Hp
Hydraulic tank volume
1.58 gal
2.9 gal
3.96 gal
1.58 gal
2.9 gal
3.96 gal
5.81 gal
5.81 gal
Weight
1.540 lbs
5.390 lbs
2.860 lbs
1.595 lbs
2.750 lbs
3.850 lbs
4.620 lbs
5.720 lbs
-
attributes.MEG-000008.MER-002612
Pressure force
Operating pressure (max.)
Stroke
Forward motion speed
Press speed
Return speed
Motor rating hydraulic pump
Hydraulic tank volume
Weight
KNWP H 60
attributes.MEG-000008.MER-002612 33 in
Pressure force 66 t
Operating pressure (max.) 5.800 psi
Stroke 15.7 in
Forward motion speed 0.24 in/s
Press speed 0.24 in/s
View Machine

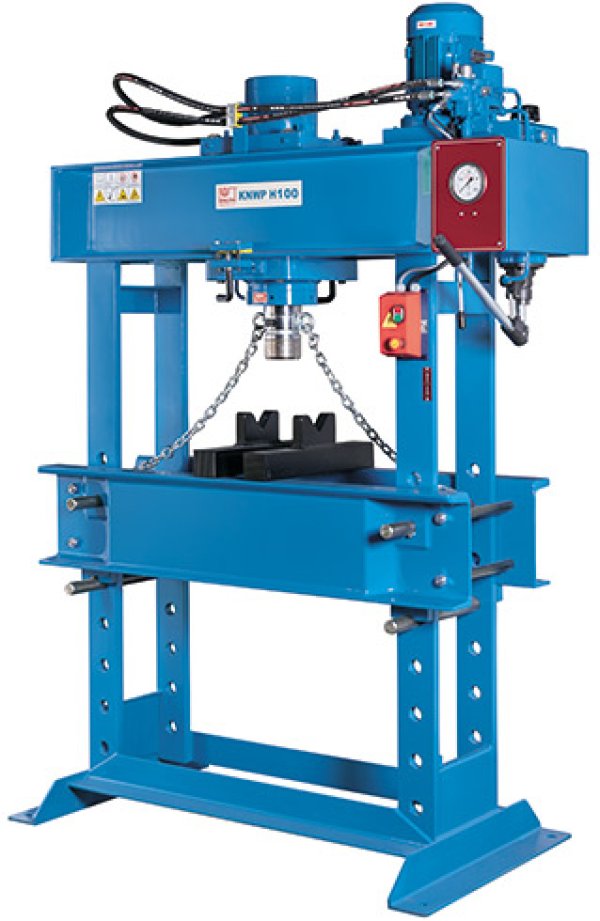

KNWP H 100
attributes.MEG-000008.MER-002612 40 in
Pressure force 110 t
Operating pressure (max.) 5.800 psi
Stroke 15.7 in
Forward motion speed 0.28 in/s
Press speed 0.28 in/s
View Machine
KNWP H 160
attributes.MEG-000008.MER-002612 43 in
Pressure force 176 t
Operating pressure (max.) 5.800 psi
Stroke 15.7 in
Forward motion speed 0.24 in/s
Press speed 0.24 in/s
View Machine
KNWP H 80
attributes.MEG-000008.MER-002612 37 in
Pressure force 88 t
Operating pressure (max.) 5.800 psi
Stroke 15.7 in
Forward motion speed 0.21 in/s
Press speed 0.21 in/s
View Machine
KNWP H 120
attributes.MEG-000008.MER-002612 40 in
Pressure force 132 t
Operating pressure (max.) 5.800 psi
Stroke 15.7 in
Forward motion speed 0.23 in/s
Press speed 0.23 in/s
View Machine
KNWP H 160 L
attributes.MEG-000008.MER-002612 61 in
Pressure force 176 t
Operating pressure (max.) 5.800 psi
Stroke 15.7 in
Forward motion speed 0.24 in/s
Press speed 0.24 in/s
View Machine
KNWP H 180
attributes.MEG-000008.MER-002612 61 in
Pressure force 198 t
Operating pressure (max.) 5.800 psi
Stroke 15.7 in
Forward motion speed 0.31 in/s
Press speed 0.31 in/s
View Machine
KNWP H 200
attributes.MEG-000008.MER-002612 61 in
Pressure force 220 t
Operating pressure (max.) 5.800 psi
Stroke 15.7 in
Forward motion speed 0.25 in/s
Press speed 0.25 in/s
View Machine
