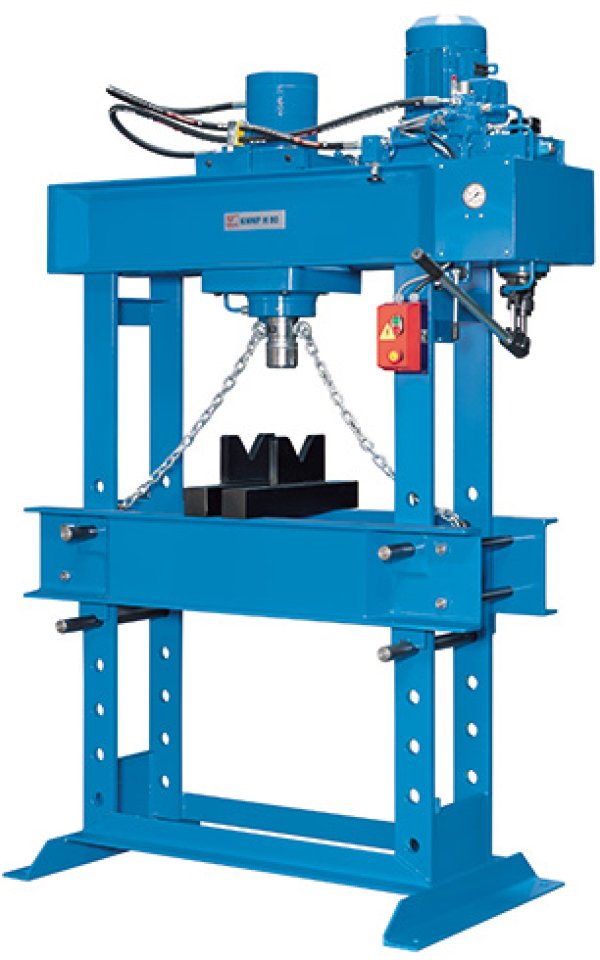

KNWP H Series

This series of hydraulic workshop presses with motor drive are designed with a stable portal with adjustable, open support table and are suitable for applications such as pressing in and out bearings, for assembly and straightening work or for testing workpieces. The laterally positionable working cylinder facilitates set-up without the workpiece having to be moved. These presses are almost indispensable in technical workshops and maintenance departments.
This series of hydraulic workshop presses with motor drive are designed with a stable portal with adjustable, open support table and are suitable for applications such as pressing in and out bearings,...
read more
Models
KNWP H 60 KNWP H 100 KNWP H 160 KNWP H 80 KNWP H 120 KNWP H 160 L KNWP H 180 KNWP H 200
Working width
830 mm
1020 mm
1100 mm
930 mm
1020 mm
1550 mm
1550 mm
1550 mm
Pressure force
60 t
100 t
160 t
80 t
120 t
160 t
180 t
200 t
Operating pressure (max.)
400 bar
400 bar
400 bar
400 bar
400 bar
400 bar
400 bar
400 bar
Stroke
400 mm
400 mm
400 mm
400 mm
400 mm
400 mm
400 mm
400 mm
Forward motion speed
6,1 mm/s
7,12 mm/s
6,2 mm/s
5,4 mm/s
5,8 mm/s
6,2 mm/s
8 mm/s
6,4 mm/s
Press speed
6,1 mm/s
7,12 mm/s
6,2 mm/s
5,4 mm/s
5,8 mm/s
6,2 mm/s
8 mm/s
6,4 mm/s
Return speed
10 mm/s
13,42 mm/s
9,8 mm/s
8,3 mm/s
9,5 mm/s
9,8 mm/s
13,3 mm/s
11,04 mm/s
Motor rating hydraulic pump
3 kW
4 kW
5,5 kW
3 kW
7,5 kW
5,5 kW
7,5 kW
7,5 kW
Hydraulic tank volume
6 l
11 l
15 l
6 l
11 l
15 l
22 l
22 l
Weight
700 kg
1000 kg
1300 kg
725 kg
1250 kg
1750 kg
2100 kg
2600 kg
View Machine
View Machine
View Machine
View Machine
View Machine
View Machine
View Machine
View Machine
-
Working width
Pressure force
Operating pressure (max.)
Stroke
Forward motion speed
Press speed
Return speed
Motor rating hydraulic pump
Hydraulic tank volume
Weight
KNWP H 60
Working width 830 mm
Pressure force 60 t
Operating pressure (max.) 400 bar
Stroke 400 mm
Forward motion speed 6,1 mm/s
Press speed 6,1 mm/s
View Machine
KNWP H 100
Working width 1020 mm
Pressure force 100 t
Operating pressure (max.) 400 bar
Stroke 400 mm
Forward motion speed 7,12 mm/s
Press speed 7,12 mm/s
View Machine
KNWP H 160
Working width 1100 mm
Pressure force 160 t
Operating pressure (max.) 400 bar
Stroke 400 mm
Forward motion speed 6,2 mm/s
Press speed 6,2 mm/s
View Machine
KNWP H 80
Working width 930 mm
Pressure force 80 t
Operating pressure (max.) 400 bar
Stroke 400 mm
Forward motion speed 5,4 mm/s
Press speed 5,4 mm/s
View Machine
KNWP H 120
Working width 1020 mm
Pressure force 120 t
Operating pressure (max.) 400 bar
Stroke 400 mm
Forward motion speed 5,8 mm/s
Press speed 5,8 mm/s
View Machine
KNWP H 160 L
Working width 1550 mm
Pressure force 160 t
Operating pressure (max.) 400 bar
Stroke 400 mm
Forward motion speed 6,2 mm/s
Press speed 6,2 mm/s
View Machine
KNWP H 180
Working width 1550 mm
Pressure force 180 t
Operating pressure (max.) 400 bar
Stroke 400 mm
Forward motion speed 8 mm/s
Press speed 8 mm/s
View Machine
KNWP H 200
Working width 1550 mm
Pressure force 200 t
Operating pressure (max.) 400 bar
Stroke 400 mm
Forward motion speed 6,4 mm/s
Press speed 6,4 mm/s
View Machine
