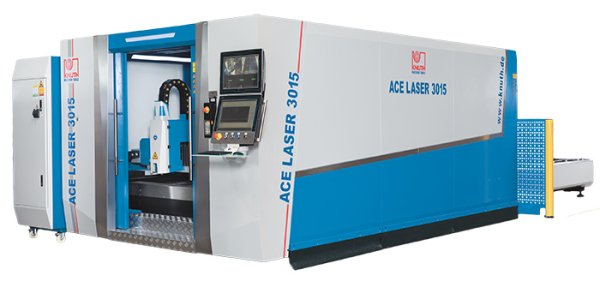

ACE Laser IPG Series

The machines of the ACE Laser series offer a cutting system that sets new standards in price and performance. They are optimally designed for the cutting process and excellent part quality. The machines guarantee productivity, safety and reliability.

6 models · Table dimensions 118 in x 59 in – 236 in x 79 in · Fiber laser 2,000–4,000 W

Call
More about the series ↓

The 6 ACE Laser IPG models

Sorted by size

Model Table dimensionsFiber laser Stock Request a quote
ACE Laser 3015 2.0 IPGItem No. 490000
Table dimensions118 in x 59 in
Fiber laser2,000 W
Details
ACE Laser 3015 4.0 IPGItem No. 490003
Table dimensions118 in x 59 in
Fiber laser4,000 W
Details
ACE Laser 4020 2.0 IPGItem No. 490001
Table dimensions157 in x 79 in
Fiber laser2,000 W
Details
ACE Laser 4020 4.0 IPGItem No. 490004
Table dimensions157 in x 79 in
Fiber laser4,000 W
Details
ACE Laser 6020 2.0 IPGItem No. 490002
Table dimensions236 in x 79 in
Fiber laser2,000 W
Details
ACE Laser 6020 4.0 IPGItem No. 490005
Table dimensions236 in x 79 in
Fiber laser4,000 W
Details

You will receive price and delivery time free of charge by email. Not sure which model fits?

All technical data compared
Feature ACE Laser 3015 2.0 IPGACE Laser 3015 4.0 IPGACE Laser 4020 2.0 IPGACE Laser 4020 4.0 IPGACE Laser 6020 2.0 IPGACE Laser 6020 4.0 IPG
Table dimensions 118 in x 59 in118 in x 59 in157 in x 79 in157 in x 79 in236 in x 79 in236 in x 79 in
Workpiece weight (max.) 2,200 lbs2,200 lbs3,300 lbs3,300 lbs4,400 lbs4,400 lbs
Axis acceleration X- / Y-axis 33 ft/s²33 ft/s²33 ft/s²33 ft/s²26 ft/s²26 ft/s²
Travel X-axis 59.8 in59.8 in79.5 in79.5 in79.5 in79.5 in
Travel Y-axis 120 in120 in159 in159 in238 in238 in
Travel Z-axis 4 in4 in4 in4 in5 in5 in
Change time at cutting table 10 sec - 15 sec10 sec - 15 sec12 sec - 17 sec12 sec - 17 sec15 sec - 20 sec15 sec - 20 sec
Fiber laser 2,000 W4,000 W2,000 W4,000 W2,000 W4,000 W
Machine drive capacity X-axis 1.3 Hp1.3 Hp1.3 Hp1.3 Hp2.7 Hp2.7 Hp
Machine drive capacity Y-axis 2 Hp2 Hp2 Hp2 Hp2.7 Hp2.7 Hp
Overall dimensions (length x width x height) 386 in x 146 in x 85 in386 in x 146 in x 85 in408 in x 169 in x 87 in408 in x 169 in x 87 in642 in x 187 in x 87 in642 in x 187 in x 87 in
Weight 17,600 lbs17,600 lbs19,800 lbs19,800 lbs39,160 lbs39,160 lbs
Data sheet PDFPDFPDFPDFPDFPDF

Standard on every ACE Laser IPG

  • Complete system with CNC control (FSCUT2000)
  • IPG fiber laser
  • Fiberoptic cable
  • Precitec high-pressure cutter head
  • Automatic focus position adjustment
  • Full protective housing
  • Automatic changing table system
  • Dust collector and filtration unit
  • Central lubrication
  • Recirculating water cooling system for the laser source
  • CAD/CAM software (CypCut)
  • Operating manual and programming instructions

And 1 more items. Full list per model under "Details".

About the ACE Laser IPG series

The machines of the ACE Laser series offer a cutting system that sets new standards in price and performance. They are optimally designed for the cutting process and excellent part quality. The machines guarantee productivity, safety and reliability. Comprehensive standard equipment ensures efficiency and versatility. These properties make the ACE Laser the ideal choice for industrial laser cutting applications, from complex workpieces with a lot size of 1 to large series production in electronics, aerospace or the automotive industry.
