ACE Laser 4020 4.0 IPG - Fiber laser cutting system with shuttle table, wide machining and performance spectrum, gas console and filtered vacuum system
Protection of the working area through ergonomic housing with protective special glass windows and two front doors with locking system

Protection of the working area through ergonomic housing with protective special glass windows and two front doors with locking system

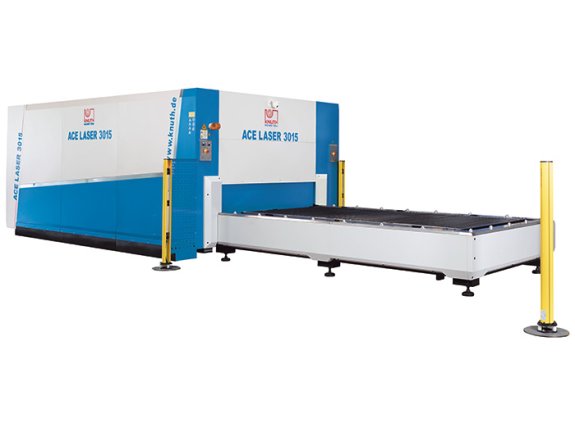

Automatic exchange table system with light safe system

Automatic exchange table system with light safe system

ACE Laser 4020 4.0 IPG - Fiber laser cutting system with shuttle table, wide machining and performance spectrum, gas console and filtered vacuum system
Protection of the working area through ergonomic housing with protective special glass windows and two front doors with locking system
Automatic exchange table system with light safe system

FIBER LASER CUTTING MACHINE

ACE Laser 4020 4.0 IPG

Item No. 490004
Table dimensions
157 in x 79 in
Beam power max.
4,000 W
Cutting capacity in structural steel
0.47 in
Cutting capacity in stainless steel
0.24 in
  • Included: Complete system with CNC control (FSCUT2000), IPG fiber laser, Fiberoptic cable all 13 items
Call

Free and without obligation. You will receive price and delivery time by email.

Data sheet (PDF)

Your KNUTH advisory team
Questions about accessories or installation?

Working Area
Table dimensions 157 in x 79 in
Workpiece weight (max.) 3,300 lbs
Axis acceleration X- / Y-axis 33 ft/s²
Axis acceleration Z axis 16 ft/s²
Travels
Travel X-axis 79.5 in
Travel Y-axis 159 in
Travel Z-axis 4 in
Rapid Feed
X-axis rapid feed 327 fpm
Y-axis rapid feed 327 fpm
Change time at cutting table 12 sec - 17 sec
Laser
Fiber laser 4,000 W
Shaft length 1,08 ± 10% µm
Beam power max. 4,000 W
Pulse frequency 50~5k Hz
Power consumption 26.82 Hp
Cutting capacity in structural steel 0.47 in
Cutting capacity in stainless steel 0.24 in
Cutting capacity in aluminum 0.197 in
Drive Capacity
Machine drive capacity X-axis 1.3 Hp
Machine drive capacity Y-axis 2 Hp
Machine drive capacity Z-axis 0.5 Hp
Measures and Weights
Overall dimensions (length x width x height) 408 in x 169 in x 87 in
Weight 19,800 lbs

The machines of the ACE Laser series offer a cutting system that sets new standards in price and performance. They are optimally designed for the cutting process and excellent part quality. The machines guarantee productivity, safety and reliability. Comprehensive standard equipment ensures efficiency and versatility. These properties make the ACE Laser the ideal choice for industrial laser cutting applications, from complex workpieces with a lot size of 1 to large series production in electronics, aerospace or the automotive industry.

  • Rugged design with high quality components
  • Complete cutting package
  • Comprehensive KNUTH service: setup, commissioning, and maintenance

  • This state-of-the-art laser cutting system features a gantry-style construction with drives on both sides and a large working area of 118 x 59 inch up to 236 inch x 79 inch that can accommodate most of the common plate sizes
  • The Y axis portal features an aluminum die-cast construction with low weight and high rigidity for excellent dynamics
  • Thermal treatment of the meticulously welded machine frame and all structural parts reliably eliminates production-related material stresses – ensuring long-lasting, precise alignment of all components. This ensures long-term and reproducible cutting edge accuracy and long machine life
  • The precision linear guides require minimal maintenance and are designed for long-lasting precision and high cutting speeds
  • High-precision rack-and-pinion gears on the Z and Y axis ensure superior and reliable positioning accuracy
  • Powerful servo-motors on all axes
  • For the safety of people and the environment, the cutting system is equipped with a machine housing and filter extraction system. Special protective glass windows make it possible to observe the cutting process
  • An automatic shuttle table system minimizes production downtimes, since the table can be loaded and unloaded during the cutting process
  • Perpendicularity or squareness tolerance for laser cutting acc. to DIN EN ISO 9013-1

Control

  • Easy operation with user-friendly optimized interface
  • A technology database includes cutting parameters and pre-set cycles for various metals
  • The efficient processing of all cutting jobs is further supported by user-friendly software for the selection of process parameters
  • Solenoid and proportional valves regulate the gas pressures (set in the control) during the cutting process

Cutting head

  • High-quality cutter head made by Precitec with motorized focus position adjustment, integrated collision guard, and level control
  • Maintenance-free beam guide is provided by a flexible fiberoptic cable and ensures a long tool life

Laser Sources

  • The ytterbium fiber laser provides 1000 to 4000 W beam power, is made by the renowned manufacturer, IPG, and ensures maximum cut quality and productivity
  • The maintenance-free laser source reduces maintenance and operating cost

Complete system with CNC control (FSCUT2000) Item No.

CNC-Controller

  • Machine is equipped with a powerful CNC system with a large display and intuitive user interface
  • The 2 installed video camera enable full visualization of the loading and cutting process
  • A remote controller is delivered as standard for quicker and easier machine preparation
  • Remote access possible thought Ethernet

CypCut – Built-in Nesting and Cutting Software

  • Supports most common file extensions (Ai, DXF, PLT, LXD)
  • Material library with many functions for storing the cutting parameters
  • Automatic nesting with various options and patterns for minimum material loss
  • Real time laser power adjustment
  • Breakpoint memory which allows you to get positioned at any point of the process or temporarily stop and start from another point
Complete system with CNC control (FSCUT2000)
Complete system with CNC control (FSCUT2000) Item No.

CNC-Controller

  • Machine is equipped with a powerful CNC system with a large display and intuitive user interface
  • The 2 installed video camera enable full visualization of the loading and cutting process
  • A remote controller is delivered as standard for quicker and easier machine preparation
  • Remote access possible thought Ethernet

CypCut – Built-in Nesting and Cutting Software

  • Supports most common file extensions (Ai, DXF, PLT, LXD)
  • Material library with many functions for storing the cutting parameters
  • Automatic nesting with various options and patterns for minimum material loss
  • Real time laser power adjustment
  • Breakpoint memory which allows you to get positioned at any point of the process or temporarily stop and start from another point
IPG fiber laser
IPG fiber laser Item No.
Fiberoptic cable
Fiberoptic cable Item No.
Precitec high-pressure cutter head
Precitec high-pressure cutter head Item No.
Automatic focus position adjustment
Automatic focus position adjustment Item No.
Full protective housing
Full protective housing Item No.
  • Working area covered by ergonomic housing with protective special glass windows front doors with interlock system
  • The design might have slight variations based on the optional equipment and cutting size
Automatic changing table system
Automatic changing table system Item No.

Minimizes production downtime using the second table for setting the plates or unloading the cut parts, during the cutting process

Dust collector and filtration unit
Dust collector and filtration unit Item No.
  • Top quality W3 Dedusting Class certified filtration unit with HEPA 14 filter quality
  • Unit capacity depends on machine cutting surface and the power of the laser source
Central lubrication
Central lubrication Item No.

Mounted behind the bridge, this unit ensures automatic central lubrication, which minimizes service requirements and greatly increases machine reliability

Recirculating water cooling system for the laser source
Recirculating water cooling system for the laser source Item No.
  • Energy efficient water chiller with very high cooling performance to deliver a constant laser power for best cutting quality and speed
  • Standard features include automatic temperature adjustment, parameters setting, pressure and level control
CAD/CAM software (CypCut)
CAD/CAM software (CypCut) Item No.
  • CAD/CAM Software wich provides all the necessary features and tools to manipulate your design
  • Includes drawing import and editing, nesting, path generation and realtime process control
Operating manual and programming instructions
Operating manual and programming instructions Item No.
Automatic gas console with electrovalves for Oxygen and Nitrogen
Automatic gas console with electrovalves for Oxygen and Nitrogen Item No.
  • Integrated in the machine, this unit adjusts and maintains gas pressure when cutting with oxygen to ensure the best cutting quality
  • It's controlled by the CNC unit and while cutting it doesn't require any assistance from the operator
Refrigerated compressed air dryers
  • Dew point +3°C
  • Max. working pressure: 16 bar
  • Flow rate: 0,88 m3/min
  • Connection: 1/2"
  • Dimensions (LxWxH): 16.26x14.37x21.93"
  • Including first and second stage filters
Refrigerated compressed air dryers Item No. 251090
Refrigerated compressed air dryers
  • Dew point +3°C
  • Max. working pressure: 16 bar
  • Flow rate: 0,88 m3/min
  • Connection: 1/2"
  • Dimensions (LxWxH): 16.26x14.37x21.93"
  • Including first and second stage filters
