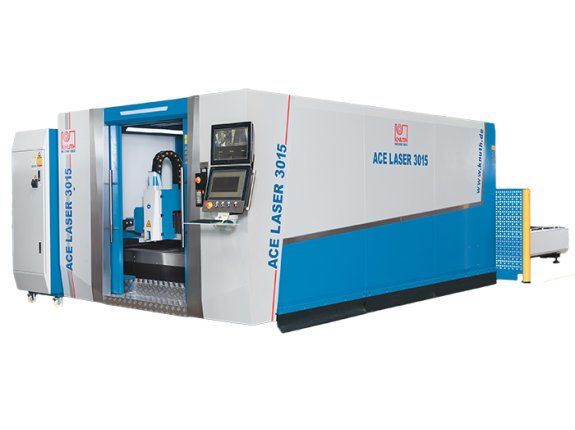

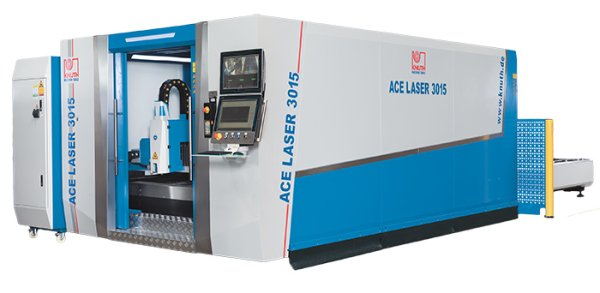

ACE Laser 3015 2.0 IPG - Fiber laser cutting system with shuttle table, wide machining and performance spectrum, gas console and filtered vacuum system

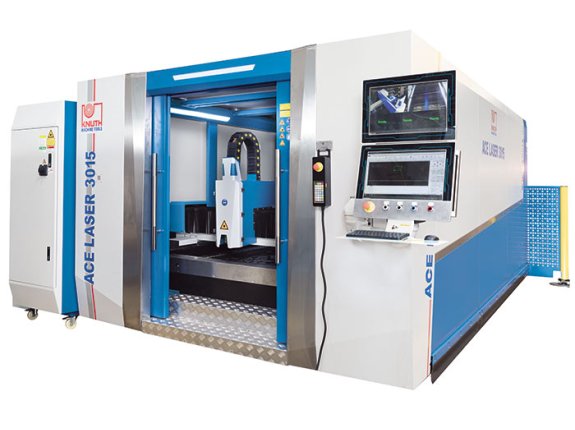

Protection of the working area through ergonomic housing with protective special glass windows and two front doors with locking system

Protection of the working area through ergonomic housing with protective special glass windows and two front doors with locking system

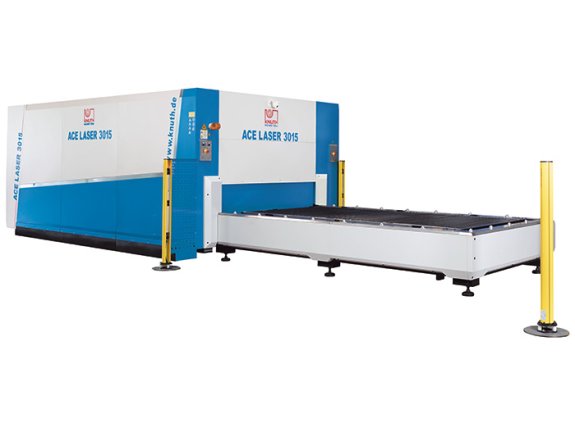

Automatic exchange table system with light safe system

Automatic exchange table system with light safe system

ACE Laser 3015 2.0 IPG - Fiber laser cutting system with shuttle table, wide machining and performance spectrum, gas console and filtered vacuum system
Protection of the working area through ergonomic housing with protective special glass windows and two front doors with locking system
Automatic exchange table system with light safe system

ACE Laser 3015 2.0 IPG

SKU : 490000

The machines of the ACE Laser series offer a cutting system that sets new standards in price and performance. They are optimally designed for the cutting process and excellent part quality. The machines guarantee productivity, safety and reliability. Comprehensive standard equipment ensures efficiency and versatility. These properties make the ACE Laser the ideal choice for industrial laser cutting applications, from complex workpieces with a lot size of 1 to large series production in electronics, aerospace or the automotive industry.

  • Rugged design with high quality components
  • Complete cutting package
  • Comprehensive KNUTH service: setup, commissioning, and maintenance
In Stock
Working Area
Table dimensions 118 in x 59 in
Workpiece weight (max.) 2200 lbs
Axis acceleration X- / Y-axis 33 ft/s²
Axis acceleration Z axis 16 ft/s²
Travels
Travel X-axis 59.8 in
Travel Y-axis 120 in
Travel Z-axis 4 in
Rapid Feed
X-axis rapid feed 327 fpm
Y-axis rapid feed 327 fpm
Change time at cutting table 10 sec - 15 sec
Laser
Fiber laser 2000 W
Shaft length 108 ± 10% µm
Beam power max. 2000 W
Pulse frequency 50~5k Hz
Power consumption 26.82 Hp
Cutting capacity in structural steel 0.47 in
Cutting capacity in stainless steel 0.24 in
Cutting capacity in aluminum 0.197 in
Drive Capacity
Machine drive capacity X-axis 1.3 Hp
Machine drive capacity Y-axis 2 Hp
Machine drive capacity Z-axis 0.5 Hp
Measures and Weights
Overall dimensions (length x width x height) 386 in x 146 in x 85 in
Weight 17600 lbs

  • This state-of-the-art laser cutting system features a gantry-style construction with drives on both sides and a large working area of 118 x 59 inch up to 236 inch x 79 inch that can accommodate most of the common plate sizes
  • The Y axis portal features an aluminum die-cast construction with low weight and high rigidity for excellent dynamics
  • Thermal treatment of the meticulously welded machine frame and all structural parts reliably eliminates production-related material stresses – ensuring long-lasting, precise alignment of all components. This ensures long-term and reproducible cutting edge accuracy and long machine life
  • The precision linear guides require minimal maintenance and are designed for long-lasting precision and high cutting speeds
  • High-precision rack-and-pinion gears on the Z and Y axis ensure superior and reliable positioning accuracy
  • Powerful servo-motors on all axes
  • For the safety of people and the environment, the cutting system is equipped with a machine housing and filter extraction system. Special protective glass windows make it possible to observe the cutting process
  • An automatic shuttle table system minimizes production downtimes, since the table can be loaded and unloaded during the cutting process
  • Perpendicularity or squareness tolerance for laser cutting acc. to DIN EN ISO 9013-1

Control

  • Easy operation with user-friendly optimized interface
  • A technology database includes cutting parameters and pre-set cycles for various metals
  • The efficient processing of all cutting jobs is further supported by user-friendly software for the selection of process parameters
  • Solenoid and proportional valves regulate the gas pressures (set in the control) during the cutting process

Cutting head

  • High-quality cutter head made by Precitec with motorized focus position adjustment, integrated collision guard, and level control
  • Maintenance-free beam guide is provided by a flexible fiberoptic cable and ensures a long tool life

Laser Sources

  • The ytterbium fiber laser provides 1000 to 4000 W beam power, is made by the renowned manufacturer, IPG, and ensures maximum cut quality and productivity
  • The maintenance-free laser source reduces maintenance and operating cost

CypCut CNC controler SKU:

CNC-Controller

  • Machine is equipped with a powerful CNC system with a large display and intuitive user interface
  • The 2 installed video camera enable full visualization of the loading and cutting process
  • A remote controller is delivered as standard for quicker and easier machine preparation
  • Remote access possible thought Ethernet

CypCut – Built-in Nesting and Cutting Software

  • Supports most common file extensions (Ai, DXF, PLT, LXD)
  • Material library with many functions for storing the cutting parameters
  • Automatic nesting with various options and patterns for minimum material loss
  • Real time laser power adjustment
  • Breakpoint memory which allows you to get positioned at any point of the process or temporarily stop and start from another point
CypCut CNC controler
CypCut CNC controler SKU:

CNC-Controller

  • Machine is equipped with a powerful CNC system with a large display and intuitive user interface
  • The 2 installed video camera enable full visualization of the loading and cutting process
  • A remote controller is delivered as standard for quicker and easier machine preparation
  • Remote access possible thought Ethernet

CypCut – Built-in Nesting and Cutting Software

  • Supports most common file extensions (Ai, DXF, PLT, LXD)
  • Material library with many functions for storing the cutting parameters
  • Automatic nesting with various options and patterns for minimum material loss
  • Real time laser power adjustment
  • Breakpoint memory which allows you to get positioned at any point of the process or temporarily stop and start from another point
IPG fiber laser
IPG fiber laser SKU:
Fiberoptic cable
Fiberoptic cable SKU:
Precitec high-pressure cutter head
Precitec high-pressure cutter head SKU:
Automatic focus position adjustment
Automatic focus position adjustment SKU:
Full protective housing
Full protective housing SKU:
  • Working area covered by ergonomic housing with protective special glass windows front doors with interlock system
  • The design might have slight variations based on the optional equipment and cutting size
Automatic changing table system
Automatic changing table system SKU:

Minimizes production downtime using the second table for setting the plates or unloading the cut parts, during the cutting process

Dust collector and filtration unit
Dust collector and filtration unit SKU:
  • Top quality W3 Dedusting Class certified filtration unit with HEPA 14 filter quality
  • Unit capacity depends on machine cutting surface and the power of the laser source
Central lubrication
Central lubrication SKU:

Mounted behind the bridge, this unit ensures automatic central lubrication, which minimizes service requirements and greatly increases machine reliability

Recirculating water cooling system for the laser source
Recirculating water cooling system for the laser source SKU:
  • Energy efficient water chiller with very high cooling performance to deliver a constant laser power for best cutting quality and speed
  • Standard features include automatic temperature adjustment, parameters setting, pressure and level control
CAD/CAM software (CypCut)
CAD/CAM software (CypCut) SKU:
  • CAD/CAM Software wich provides all the necessary features and tools to manipulate your design
  • Includes drawing import and editing, nesting, path generation and realtime process control
Operating manual and programming instructions
Operating manual and programming instructions SKU:
Automatic gas console with electrovelves for Oxygen and Nitrogen
Automatic gas console with electrovelves for Oxygen and Nitrogen SKU:
  • Integrated in the machine, this unit adjusts and maintains gas pressure when cutting with oxygen to ensure the best cutting quality
  • It's controlled by the CNC unit and while cutting it doesn't require any assistance from the operator
Refrigerated compressed air dryers
  • Dew point +3°C
  • Max. working pressure: 16 bar
  • Flow rate: 0,88 m3/min
  • Connection: 1/2"
  • Dimensions (LxWxH): 16.26x14.37x21.93"
  • Including first and second stage filters
Refrigerated compressed air dryers SKU: 251090
Refrigerated compressed air dryers
  • Dew point +3°C
  • Max. working pressure: 16 bar
  • Flow rate: 0,88 m3/min
  • Connection: 1/2"
  • Dimensions (LxWxH): 16.26x14.37x21.93"
  • Including first and second stage filters
Tube cutter 236 inch (for 1.3-4 HP) SKU: 253237
Tube cutter 236 inch (for 1.3-4 HP)
  • Tube machining station designed for tubes with 6.000 mm length and 8 inch diameter
  • Two mechanical chucks precisely guide the material under the cutter head
  • Includes CypCut-Tube software, which was design especially for tube cutting. Drawing data can be imported and exported via the widely used, neutral IGES file format.
