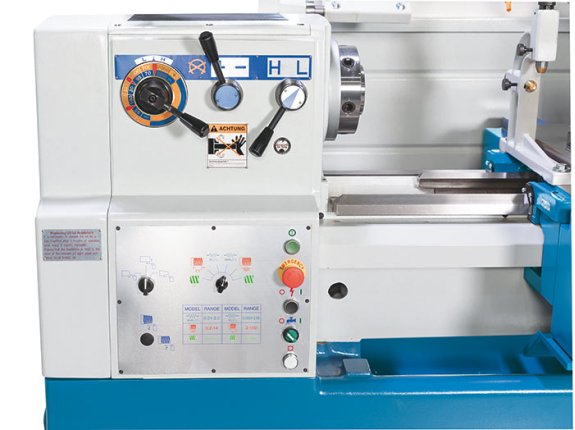

Intuitive operation - feeds and thread cutting features are selected via rotary switch

Intuitive operation - feeds and thread cutting features are selected via rotary switch

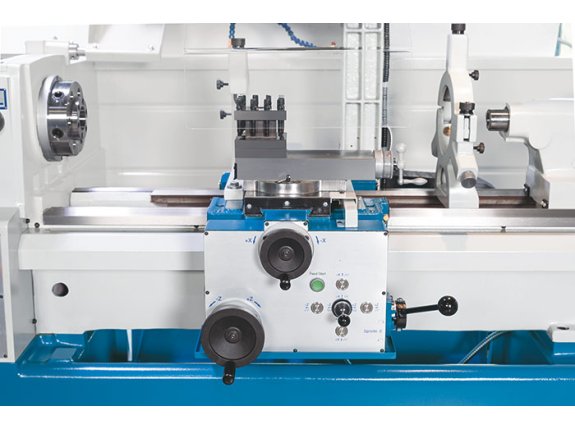

Axes are powered by high-quality servo drives that translate your hand movements with the precision and dynamics of modern CNC machines

Axes are powered by high-quality servo drives that translate your hand movements with the precision and dynamics of modern CNC machines

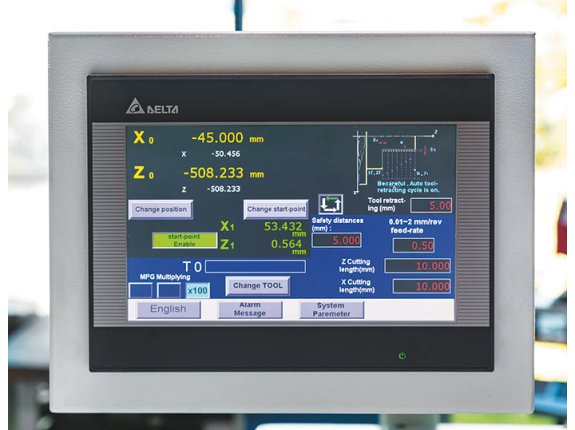

Large color touchscreen provides a graphic display of machining operations and lists editable parameters

Large color touchscreen provides a graphic display of machining operations and lists editable parameters

Servoturn® 410 NC - A modern conventional lathe extended with CNC functions for turning tapers and radii
Intuitive operation - feeds and thread cutting features are selected via rotary switch
Axes are powered by high-quality servo drives that translate your hand movements with the precision and dynamics of modern CNC machines
Large color touchscreen provides a graphic display of machining operations and lists editable parameters

Servoturn® 410 NC

SKU : 470546
New

The Servoturn series of universal lathes combines the most modern feed technology with classic mechanical engineering. In contrast to standard conventional lathes, this series has ball screw drives and electronic hand wheels on all axes. High-torque servo motors implement every feed movement with the dynamics of modern CNC machines. Without gear change wheels and gears, feed and thread pitches can be selected electronically. Rapid traverses on all axes reduce non-productive time and electronic stops offer high repeat accuracy.

  • Intuitive operation
  • Servo drive for feed and tapping
  • Turning of tapers and radii
  • Clear touch screen
  • Electronic handwheels
Working Area
Center width 40 in
Turning diameter over bed 16 in
Turning diameter over support 9 in
Turning diameter without gap bridge 20 in
Bed width 12 in
Travels
Travel X-axis 9.4 in
Travel Z1-axis 5 in
Headstock
Spindle speed 30 rpm - 2000 rpm
Spindle bore 2 in
Spindle mount D1/6
Spindle taper MT 6
Feed
Feed X-axis 0.00039 in/R - 0.07874 in/R
Feed Z-axis 0.00039 in/R - 0.07874 in/R
Threading
Threading, metric 0.02 mm - 14 mm
Threading, diametric 6 DP - 100 DP
Threading, module 0.1 mm - 5 mm
Threading, withworth 2 TPI - 100 TPI
Leadscrew 1.26 in x 0.24 in
Tailstock
Tailstock taper 4 MT
Tailstock quill diameter 2 in
Tailstock quill stroke 5 in
Drive Capacity
Motor rating main drive 5 Hp
Motor rating coolant pump 0.1 Hp
Measures and Weights
Overall dimensions (length x width x height) 87 in x 39 in x 48 in
Weight 3850 lbs

  • A heavy ribbed machine bed and a massive one-piece cast-iron frame provide the solid basis for this machine
  • Wide, hardened and ground guideways ensure superior turning results and long life
  • Removable bridge allows machining of workpieces with larger diameters
  • The massive headstock is equipped with a large main spindle that runs on two high-capacity tapered roller bearings and one grooved ball bearing
  • The main drive features a wide speed range with 12 gear steps that easily can be selected via shifting
  • Feeds, thread types, and contours are designed simply and intuitively with electronic selection via a headstock-mounted rotary switch
  • In addition to standard machining tasks with extensive thread options, this machine can be used for turning tapers and radii
  • Values for travel distances, feed speeds, and thread leads are input via touchscreen at the control
  • Micro-control via electronic hand-wheels offering the same handling and postioning as with a conventional machine, just smoother and more precise
  • Ball screws in Z and X axes ensure considerably less errors due to loseness (backlash), resulting in significantly higher precision
  • A manual central lubrication system simplifies maintenance and supplies all guideways with lubricant

Delta servoconventional CNC control SKU:
Delta servoconventional CNC control
Delta servoconventional CNC control SKU:
Fixed splash guard (wall)
Fixed splash guard (wall) SKU:
Chuck guard
Chuck guard SKU:

Chuck guard with integrated interlock system

Protective shield for support
Protective shield for support SKU:
Coolant system
Coolant system SKU:
Leadscrew cover
Leadscrew cover SKU:
Work lamp
Work lamp SKU:
Manual central lubrication
Manual central lubrication SKU:
4-station tool holder
4-station tool holder SKU:
  • classic 4 station tool holder
  • section size 45×45
Fastening bolts
Fastening bolts SKU:
Operator instructions
Operator instructions SKU:
