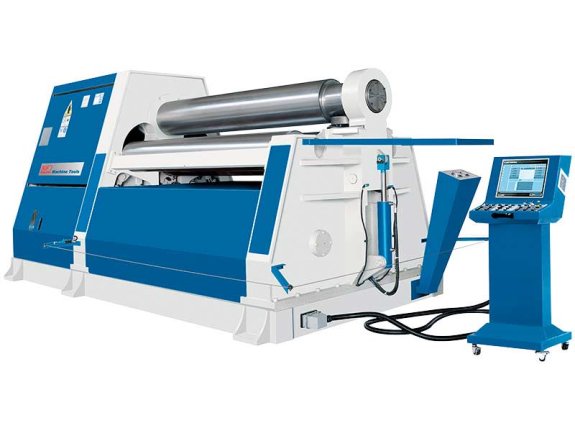

RBM 25/45 NC Teach In

SKU : 131917

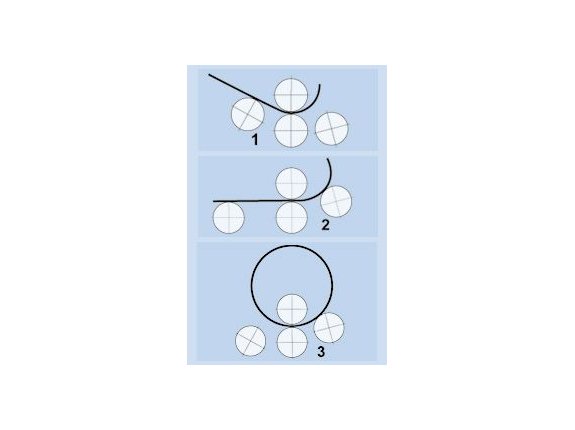

RBM is a series of 4-roll bending machines that are particularly suited for large sheet metal thicknesses. The advantage of this design is that the bending process is done in one operation. The NC control also enables the work steps carried out to be saved and automatically repeated. Special features such as conical bending can be controlled via the control panel. This means that the models in this series can be used for a wide range of applications in shipbuilding, steel and container construction.

  • Bending solution for thick materials
  • NC-Teach-In programming
  • 4 rollers with symmetrical structure
  • Hydraulic roller drive
  • Hardened rollers and conical bender
Working Area
Working length 102 in
Plate thickness (max.) 1.77 in
Max. plate thickness for bending 1.38 in
Upper roll diameter 18 in
Lower roll diameter 17 in
Side roll diameter 14 in
Drive Capacity
Motor rating hydraulic pump 40.2 Hp
Measures and Weights
Overall dimensions (length x width x height)-height 236 in x 91 in x 102 in
Weight 66000 lbs

  • Massive machine frame, based on an advanced design and many years of experience
  • Hydraulic safety chuck for easy removal of the part
  • Roller feed and adjustment of parallelism and taper at the control panel
  • All rollers are hardened and equipped with precision bearings
  • Hydraulically driven top and bottom rollers
  • Hydraulic components from Parker / Bosch
  • Electric components from Siemens and Telemanique
  • Minimum bending diameter = 3 x Ø of the top roller

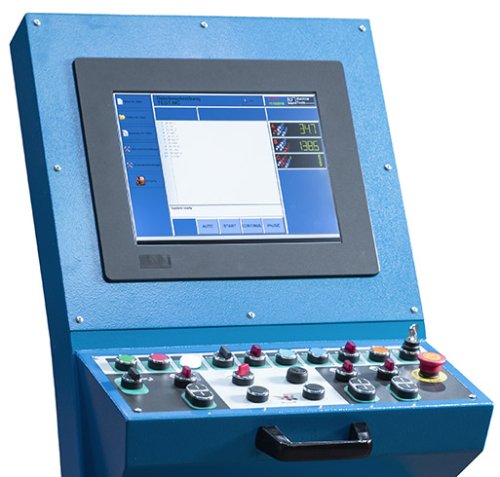

NC-Teach-In control SKU:

Playback programming:This programming feature allows you to easily repeat a bending process. The initial bending process must be performed manually and saved step-by-step. For the next machining process, you merely retrieve the saved program and the bending process will be performed automatically.

Direct programming: This feature allows the direct input of coordinates and is intended for experienced operators and tested machining processes.

NC-Teach-In control
NC-Teach-In control SKU:

Playback programming:This programming feature allows you to easily repeat a bending process. The initial bending process must be performed manually and saved step-by-step. For the next machining process, you merely retrieve the saved program and the bending process will be performed automatically.

Direct programming: This feature allows the direct input of coordinates and is intended for experienced operators and tested machining processes.

Hardened rollers
Hardened rollers SKU:

Facilite the rolling of harder materials like stainless steel

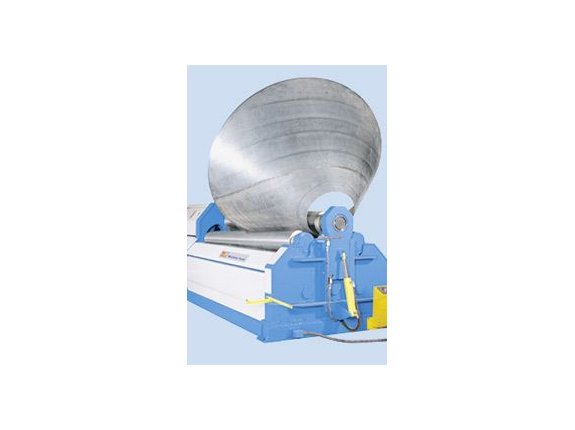

Conical bending feature
Conical bending feature SKU:
Digital display
Digital display SKU:
Control panel
Control panel SKU:
Operator manual
Operator manual SKU:

NC-Teach-In control

Playback programming:This programming feature allows you to easily repeat a bending process. The initial bending process must be performed manually and saved step-by-step. For the next machining process, you merely retrieve the saved program and the bending process will be performed automatically.

Direct programming: This feature allows the direct input of coordinates and is intended for experienced operators and tested machining processes.

Resources & Downloads

  • RBM 25/45 NC Teach In Brochure.pdf (0.77MB)

Similar Products

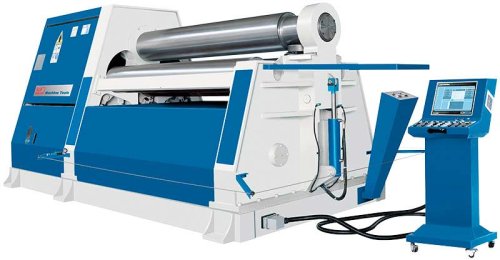

RBM 40/16 NC Teach In - Heavy NC-controlled version with hydraulically driven rollers for processing large thick plates of heavy plate
