KRM ST Series

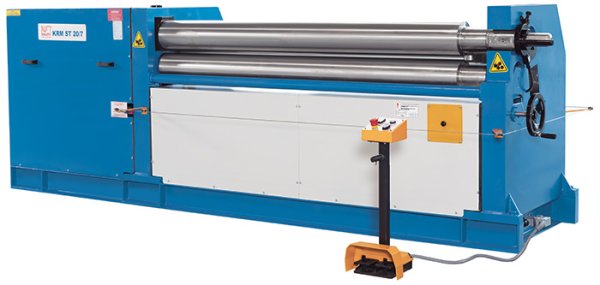

The models in our KRM ST series take on bending work on workpieces up to 3000 mm (118 in.) in length. The heavy, medium-capacity round bending machines have a solid, closed machine frame and a motor-driven rear roller. Conical bending and pre-bending are among the features that allow you a wide range of applications for individual production in metalworking, steel and metal construction.
The models in our KRM ST series take on bending work on workpieces up to 3000 mm (118 in.) in length. The heavy, medium-capacity round bending machines have a solid, closed machine frame and a motor-d...
read more
Models
KRM ST 30/5 KRM ST 15/8 KRM ST 20/6 KRM ST 20/7 KRM ST 25/5 KRM ST 25/6 KRM ST 30/4
Working length
120 in
61 in
81 in
81 in
100 in
100 in
120 in
Plate thickness (max.) - 450 N/mm²
0.197 in
0.315 in
0.236 in
0.276 in
0.197 in
0.236 in
0.157 in
Bending diameter (min.)
12 in
10 in
10 in
11 in
11 in
11 in
11 in
Roll diameter
8 in
7 in
7 in
7 in
7 in
7 in
7 in
Motor rating main drive
5.4 Hp
5.4 Hp
5.4 Hp
5.4 Hp
5.4 Hp
5.4 Hp
5.4 Hp
Overall dimensions (length x width x height)
205 in x 38 in x 52 in
132 in x 29 in x 42 in
152 in x 29 in x 42 in
166 in x 38 in x 52 in
172 in x 38 in x 52 in
186 in x 38 in x 52 in
205 in x 38 in x 52 in
Weight
8800 lbs
4070 lbs
4620 lbs
6820 lbs
6710 lbs
7480 lbs
8250 lbs
View Machine
View Machine
View Machine
View Machine
View Machine
View Machine
View Machine
-
Working length
Plate thickness (max.) - 450 N/mm²
Bending diameter (min.)
Roll diameter
Motor rating main drive
Overall dimensions (length x width x height)
Weight
KRM ST 30/5
Working length 120 in
Plate thickness (max.) - 450 N/mm² 0.197 in
Bending diameter (min.) 12 in
Roll diameter 8 in
Motor rating main drive 5.4 Hp
Overall dimensions (length x width x height) 205 in x 38 in x 52 in
View Machine
KRM ST 15/8
Working length 61 in
Plate thickness (max.) - 450 N/mm² 0.315 in
Bending diameter (min.) 10 in
Roll diameter 7 in
Motor rating main drive 5.4 Hp
Overall dimensions (length x width x height) 132 in x 29 in x 42 in
View Machine
KRM ST 20/6
Working length 81 in
Plate thickness (max.) - 450 N/mm² 0.236 in
Bending diameter (min.) 10 in
Roll diameter 7 in
Motor rating main drive 5.4 Hp
Overall dimensions (length x width x height) 152 in x 29 in x 42 in
View Machine
KRM ST 20/7
Working length 81 in
Plate thickness (max.) - 450 N/mm² 0.276 in
Bending diameter (min.) 11 in
Roll diameter 7 in
Motor rating main drive 5.4 Hp
Overall dimensions (length x width x height) 166 in x 38 in x 52 in
View Machine
KRM ST 25/5
Working length 100 in
Plate thickness (max.) - 450 N/mm² 0.197 in
Bending diameter (min.) 11 in
Roll diameter 7 in
Motor rating main drive 5.4 Hp
Overall dimensions (length x width x height) 172 in x 38 in x 52 in
View Machine
KRM ST 25/6
Working length 100 in
Plate thickness (max.) - 450 N/mm² 0.236 in
Bending diameter (min.) 11 in
Roll diameter 7 in
Motor rating main drive 5.4 Hp
Overall dimensions (length x width x height) 186 in x 38 in x 52 in
View Machine
KRM ST 30/4
Working length 120 in
Plate thickness (max.) - 450 N/mm² 0.157 in
Bending diameter (min.) 11 in
Roll diameter 7 in
Motor rating main drive 5.4 Hp
Overall dimensions (length x width x height) 205 in x 38 in x 52 in
View Machine
