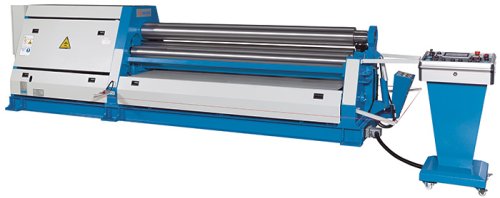

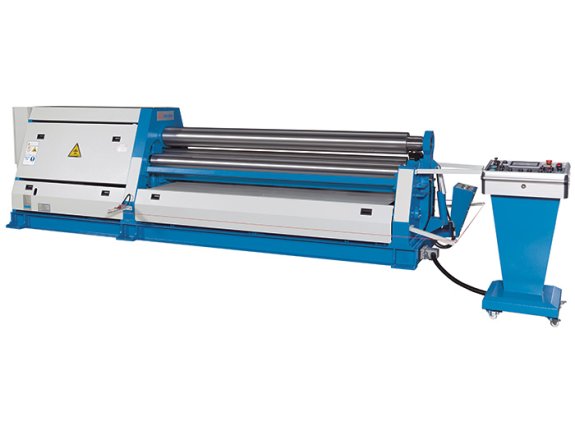

RBM 25/25

SKU : 131912

RBM is a series of 4-roll bending machines that are particularly suited for large sheet metal thicknesses. The advantage of this design is that the bending process can be done in one operation, and the operator only has to find one position for the side rolls. With special features such as conical bending that can be controlled via the control panel, the models in this series enable a wide range of applications in shipbuilding, steel and container construction.

  • Bending solution for thick materials
  • 4 rollers with symmetrical structure
  • Hydraulic roller drive
  • Hardened rollers
  • Conical bender
Working Area
Working length 102 in
Plate thickness (max.) 0.98 in
Max. plate thickness for bending 0.79 in
Upper roll diameter 14 in
Lower roll diameter 13 in
Side roll diameter 10 in
Drive Capacity
Motor rating hydraulic pump 24.8 Hp
Measures and Weights
Overall dimensions (length x width x height)-height 199 in x 75 in x 67 in
Weight 25960 lbs

  • Massive machine frame, based on an advanced design and many years of experience
  • Hydraulic safety chuck for easy removal of the part
  • Roller feed and adjustment of parallelism and taper at the control panel
  • All rollers are hardened and equipped with precision bearings
  • Hydraulically driven top and bottom rollers
  • Hydraulic components from Parker / Bosch

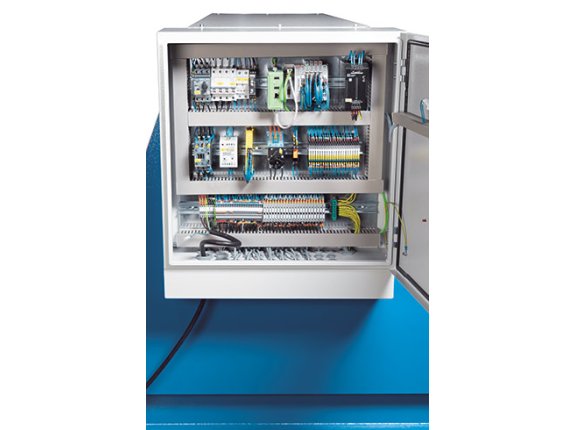

  • Electric components from Siemens and Telemanique
  • Minimum bending diameter = 3 x Ø of the top roller

Hardened rollers SKU:

Facilite the rolling of harder materials like stainless steel

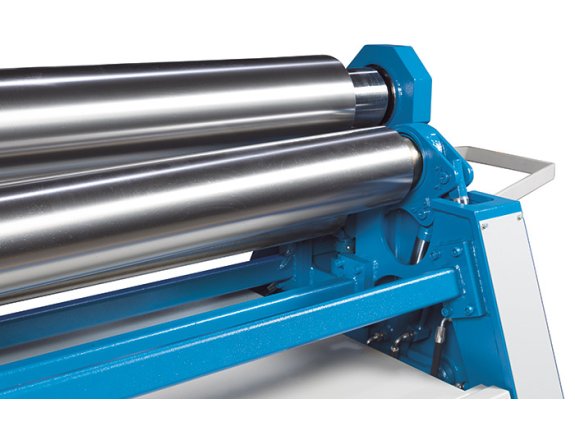

Hardened rollers
Hardened rollers SKU:

Facilite the rolling of harder materials like stainless steel

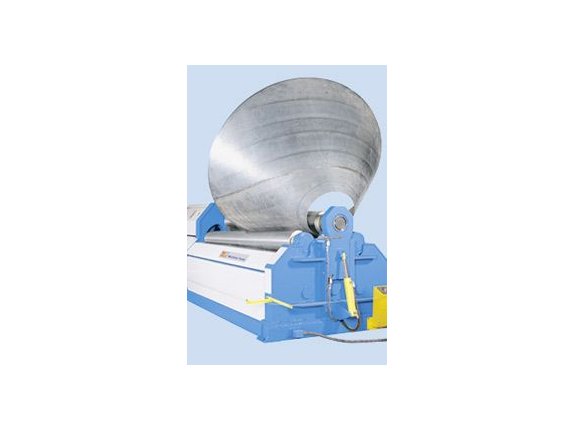

Conical bending feature
Conical bending feature SKU:
Digital display
Digital display SKU:
Control panel
Control panel SKU:
Operator manual
Operator manual SKU:

Resources & Downloads

  • RBM 25/25 Brochure.pdf (2.07MB)
