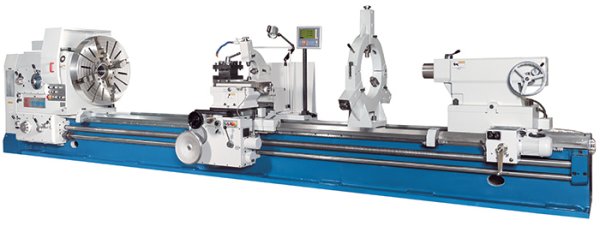

DL E Heavy Series

With the machines of the DL E Heavy series, you can machine really large turning diameters and workpiece lengths. This lathe series is the solution for conventional machining of workpieces up to 8000 mm (315 in.) in length and over 1600 mm (63 in.) in diameter.

7 models · Turning diameter over bed 49–63 in · Workpiece length (max.) 59–315 in

Call
More about the series ↓

The 7 DL E Heavy models

Sorted by size

Model Turning diameter over bedWorkpiece length (max.)Spindle boreMotor rating main drive Stock Request a quote
DL E Heavy 620/1500Item No. 300505
Turning diameter over bed49 in
Workpiece length (max.)59 in
Spindle bore5.1 in
Motor rating main drive29.5 Hp
Details
DL E Heavy 620/3000Item No. 300506
Turning diameter over bed49 in
Workpiece length (max.)118 in
Spindle bore5.1 in
Motor rating main drive29.5 Hp
Details
DL E Heavy 620/5000Item No. 300508
Turning diameter over bed49 in
Workpiece length (max.)197 in
Spindle bore5.1 in
Motor rating main drive29.5 Hp
Details
DL E Heavy 620/8000Item No. 300510
Turning diameter over bed49 in
Workpiece length (max.)315 in
Spindle bore5.1 in
Motor rating main drive29.5 Hp
Details
DL E Heavy 800/3000Item No. 300512
Turning diameter over bed63 in
Workpiece length (max.)118 in
Spindle bore5.1 in
Motor rating main drive29.5 Hp
Details
DL E Heavy 800/5000Item No. 300514
Turning diameter over bed63 in
Workpiece length (max.)197 in
Spindle bore5.1 in
Motor rating main drive29.5 Hp
Details
DL E Heavy 800/8000Item No. 300516
Turning diameter over bed63 in
Workpiece length (max.)315 in
Spindle bore5.1 in
Motor rating main drive29.5 Hp
Details

You will receive price and delivery time free of charge by email. Not sure which model fits?

All technical data compared
Feature DL E Heavy 620/1500DL E Heavy 620/3000DL E Heavy 620/5000DL E Heavy 620/8000DL E Heavy 800/3000DL E Heavy 800/5000DL E Heavy 800/8000
Workpiece length (max.) 59 in118 in197 in315 in118 in197 in315 in
Turning diameter over bed 49 in49 in49 in49 in63 in63 in63 in
Turning-Ø over support 35 in35 in35 in35 in50 in50 in50 in
Spindle speeds (right) 3.15 rpm - 315 rpm3.15 rpm - 315 rpm3.15 rpm - 315 rpm3.15 rpm - 315 rpm2.5 rpm - 250 rpm2.5 rpm - 250 rpm2.5 rpm - 250 rpm
Spindle bore 5.1 in5.1 in5.1 in5.1 in5.1 in5.1 in5.1 in
Spindle mount A2-15A2-15A2-15A2-15A2-15A2-15A2-15
Tailstock quill taper metric 80metric 80metric 80metric 80metric 80metric 80metric 80
Motor rating main drive 29.5 Hp29.5 Hp29.5 Hp29.5 Hp29.5 Hp29.5 Hp29.5 Hp
Overall dimensions (length x width x height) 182 in x 72 in x 71 in241 in x 75 in x 76 in319 in x 75 in x 76 in438 in x 75 in x 76 in238 in x 82 in x 88 in317 in x 82 in x 88 in435 in x 82 in x 88 in
Weight 21,450 lbs25,410 lbs29,260 lbs36,960 lbs28,380 lbs35,640 lbs46,244 lbs
Data sheet PDFPDFPDFPDFPDFPDFPDF

Standard on every DL E Heavy

  • 3-axis position indicator X.Pos 3.2
  • Coolant system
  • LED work lamp
  • Center points
  • Reducing sleeve
  • Foundation bolts
  • Central lubrication
  • Operating tools
  • Operating manual

About the DL E Heavy series

With the machines of the DL E Heavy series, you can machine really large turning diameters and workpiece lengths. This lathe series is the solution for conventional machining of workpieces up to 8000 mm (315 in.) in length and over 1600 mm (63 in.) in diameter. The particularly wide and heavily ribbed machine bed takes heavy workpiece weights. Powerful motors drive the main spindle via a finely adjustable multi-disc clutch. The rapid traverse in the support is particularly effective with large bed lengths and the heavy tailstock is also moved with a motor drive.
