SBS E Series

The manual folding machines of the SBS E-series with their heavy and robust design are designed for bending long metal sheets of up to 3000 mm (118 in.) in length. Due to its angle stop, this series can also be used for the production of small series.

2 models · Working length 80–100 in · Plate thickness (max.) - 400 N/mm² 0.059–0.079 in

Call
More about the series ↓

The 2 SBS E models

Sorted by size

Model Working lengthPlate thickness (max.) - 400 N/mm²Bending angle (max.) Stock Request a quote
SBS E 2020/2,0Item No. 131367
Working length80 in
Plate thickness (max.) - 400 N/mm²0.079 in
Bending angle (max.)135 deg
Details

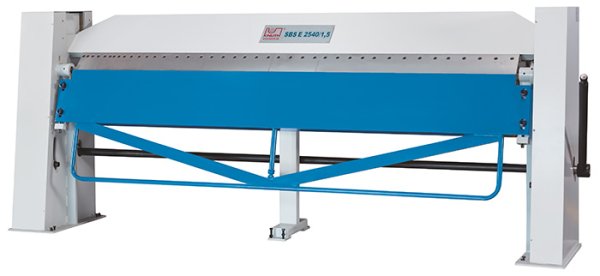

SBS E 2540/1,5Item No. 131371
Working length100 in
Plate thickness (max.) - 400 N/mm²0.059 in
Bending angle (max.)135 deg
Details

You will receive price and delivery time free of charge by email. Not sure which model fits?

All technical data compared
Feature SBS E 2020/2,0SBS E 2540/1,5
Working length 80 in100 in
Working height 36 in36 in
Plate thickness (max.) - 400 N/mm² 0.079 in0.059 in
Stroke 4.7 in4.7 in
Bending angle (max.) 135 deg135 deg
Adjustment range for A axis 1 in1 in
Overall dimensions (length x width x height) 111 in x 34 in x 52 in131 in x 29 in x 60 in
Weight 2,255 lbs2,750 lbs
Data sheet PDFPDF

Standard on every SBS E

  • Segmented male die
  • Operator manual

About the SBS E series

The manual folding machines of the SBS E-series with their heavy and robust design are designed for bending long metal sheets of up to 3000 mm (118 in.) in length. Due to its angle stop, this series can also be used for the production of small series.
