MANUAL CIRCULAR SAW MACHINE

KKS 350 T

Item No. 102121
Cutting capacity 0° (round)
5 in
Cutting capacity 0° (flat) (length x width)
6 in x 4 in
Cutting capacity 45° (round) R
4 in
Main motor rating
1 / 1.7 Hp
  • Included: Self-centering vise, Base, Coolant system all 4 items
Call

Free and without obligation. You will receive price and delivery time by email.

Data sheet (PDF)

Your KNUTH advisory team
Questions about accessories or installation?

Working Area
Max. saw blade diameter 14 in
Shaft diameter 1.3 in
Speed 18/36 rpm
Width of vise 6 in
Working height 38 in
Cutting Capacities
Cutting capacity 0° (round) 5 in
Cutting capacity 0° (square) 4 in
Cutting capacity 0° (flat) (length x width) 6 in x 4 in
Cutting capacity 45° (round) L 4 in
Cutting capacity 45° (square) L 4 in
Cutting capacity 45° (round) R 4 in
Cutting capacity 45° (flat) L (length x width) 4 in x 4 in
Cutting capacity 45° (square) R 4 in
Cutting capacity 45° (flat) R (length x width) 4 in x 4 in
Drive Capacity
Main motor rating 1 / 1.7 Hp
Measures and Weights
Overall dimensions (length x width x height) 39 in x 23 in x 73 in
Weight 519 lbs

Manual circular cold saws KKS T come equipped with everything you need for machining smaller tubes and profiles. You can cut precise miters with all models. Vises on the model KKS T350 are self-centering for optimal cutting. Models with 10.8" saw blades are equipped with a quick-action clamping vise.

  • High-precision angle cuts
  • Rigid vise
  • Rigid machine base included
  • Built-in coolant system

  • Easy operation, rugged design, and precise angular cuts make this circular cold saw a “must-have” basic for any workshop
  • The entire series is ideally suited for cutting solid materials, tubes, and sections of steel, iron, and light metals
  • The operator guides the cut via a hand-lever, where the ON/OFF switch is integrated ergonomically into the hand grip
  • The models KKS 250 and 275 T provide a rigid vise with quick-action clamping feature and are ideal for small batch productions

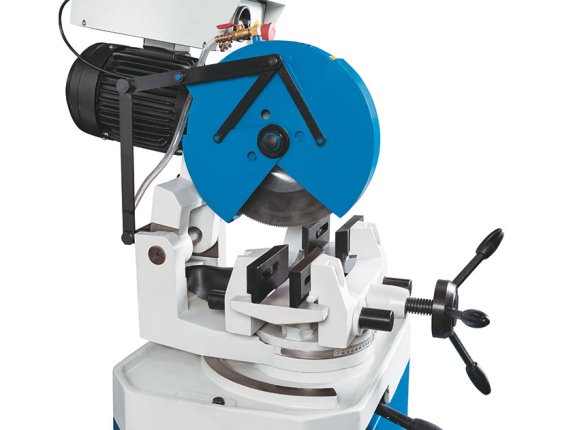

  • KKS 315 T / KKS 350 T feature a self-centering dual vise that hold the workpiece firmly on both sides of the saw blade
  • The miter can be adjusted up to +/- 45 degrees by rotating the gear head
  • The selected angle adjustment is fixated via a central clamping lever that is integrated into the machine frame
  • All models have high-torque motors, and the KKS 315 and 350 T also have reversible poles and 2 speeds
  • A large idler gear runs in an oil bath for low maintenance and minimal wear
  • The rugged machine base allows a space-saving machine setup
  • An integrated coolant system is part of the standard equipment

Self-centering vise Item No.
Self-centering vise
Self-centering vise Item No.
Base
Base Item No.

Machine base with storage space

Coolant system
Coolant system Item No.
1 saw blade
1 saw blade Item No.
