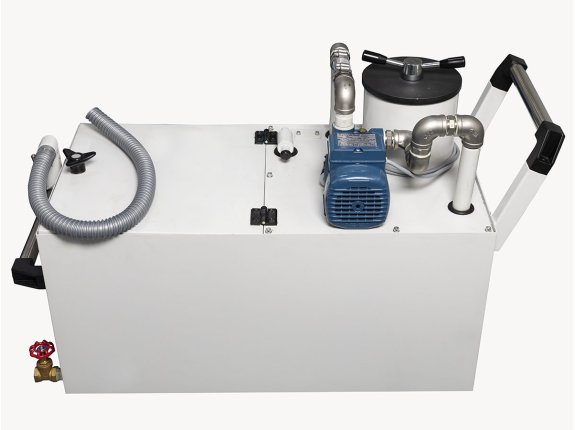

Dielectric tank with double filtration system

Dielectric tank with double filtration system

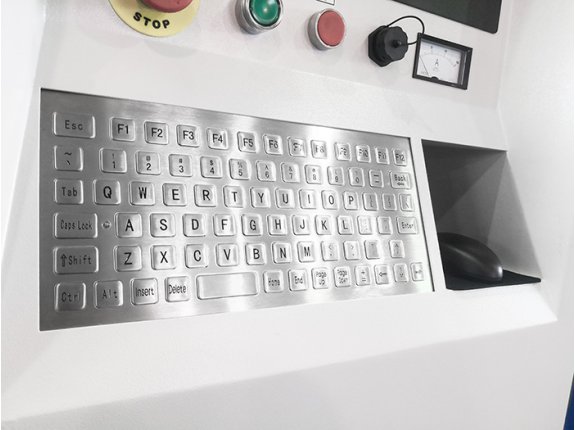

Stainless steel waterproof keyboard

Stainless steel waterproof keyboard

Remote control with various functions for a convenient operation

Remote control with various functions for a convenient operation

NeoSpark B 300 - CNC wire eroding machine with reciprocal high-speed eroding wire system
The NeoSpark allows production of delicate contours with superior surface quality
The structures are constructed in layers and cut from the base plate
In additive production (3D-Printing) the produced complex parts are attached to a metal plate, where the metal plate subsequently will have to be separated from the component (Neospark 500 B Continental Engineering Services)
Dielectric tank with double filtration system
Stainless steel waterproof keyboard
Remote control with various functions for a convenient operation

NeoSpark B 300

SKU : 180558

The machines of the NeoSpark CNC series are among the most precise wire EDM machines with reciprocal wire guidance on the market. They offer excellent performance when machining electrically conductive materials in mold and tool making. The NeoSpark series is a popular choice for companies that specialize in additive manufacturing and want to separate the finished part from its base plate with high precision. High speed ​​wire cutting guarantees deformation-free and burr-free cutting of even the most delicate 3-D printed metal structures with the best surface quality.

  • Electrical discharge machining with highest cost-efficiency
  • Easily programmable CNC control
  • Real-time system diagnostics, high process reliability
  • Time-saving programming during the machining process
Working Area
Table dimensions 24 in x 17 in
Workpiece, length x width x thickness (max.) 38 in x 22 in x 12 in
Workpiece weight (max.) 1100 lbs
Travel X-axis 16 in
Travel Y-axis 12 in
Travel U / V-axis 275 / 275 in
Travel Z-axis 10 in
Cutting angle (with guide) ± 10° / 3"
Cutting capacity (max.) 0.31 in²/min
Generator 10 A
CNC control
Display size / type 15" / LED
Controlled axis 4
Input increment (min.) 0.00004 in
Dielectric system
Dielectric, tank capacity 48 gal
Feed
Rapid feed X / Y axis 39 in/min
Accuracies
Positioning accuracy X- / Y-axis 0.0004 in
Positioning accuracy U/V axis 0.0008 in
Repeatability X- / Y-axis 0.0002 in
Repeatability U / V axis 0.0004 in
Best surface roughness 0.8 µm Ra
Drive Capacity
Motor rating X / Y axis 0.2 Hp
Motor rating U / V axis 0.03 Hp
Motor rating Z-axis 0.03 Hp
Measures and Weights
Overall dimensions (length x width x height) 81 in x 63 in x 73 in
Weight 4400 lbs

  • The NeoSpark CNC Electric Discharge Machine delivers excellent cutting performance and operating cost is extremely low
  • The cast-iron machine frame features a modern C-frame with T-base, multiple reinforcing ribs, precision-machined surfaces and thermal stress-relief
  • Rigid linear guides and precision preloaded ballscrews on all axes ensure permanent mechanical precision
  • The IPC-based control system with servo drives is fine-tuned to the manufacturing process requirements and it is user-oriented and reliable
  • 2-step filtration system in the dielectric tank ensures uninterrupted operation and high machining quality

High-Speed Wire EDM – Cutting Technology for 3D Metal Printing

  • Compared to mechanical divisions, there is virtually no pressure on the component
  • Delicate structures can be machined without the risk of deformation or microcracking in the cut surface
  • Perfect balance between cutting accuracy and high cutting speed
  • Significantly more cost-efficient than conventional wire EDM
  • Long wire life ensures high productivity and minimal downtimes

Electronic hand-wheel SKU:
Electronic hand-wheel
Electronic hand-wheel SKU:
Generator
Generator SKU:
USB port
USB port SKU:
Ethernet
Ethernet SKU:
Standard wire guides
Standard wire guides SKU:
  • Wire guides specially designed for flushing type operations
  • Closed type to increase the angle for taper cutting
Dielectric tank with pump
Dielectric tank with pump SKU:

 Featuring double layer filtration system with 2 magnetic boards and 2 paper filters

Work lamp
Work lamp SKU:
Leveling plates and jacks
Leveling plates and jacks SKU:
Central lubrication
Central lubrication SKU:

Mounted behind the bridge, this unit ensures automatic central lubrication, which minimizes service requirements and greatly increases machine reliability

Operating tools
Operating tools SKU:
Operator instructions
Operator instructions SKU:
IPC-based control system
IPC-based control system SKU:
  • Powerful IPC type system with Windows operating system
  • Programming modes: auto/manual
  • Integrate CAD/CAM Software
  • Stainless steel waterproof keyboard
Erosion wire 0.007"
Erosion wire 0.007" SKU:
  • Material: molybdenum
  • Diameter: Ø0,18 mm
  • Length: 2.000 mm
Dielectric 22 lb
Dielectric 22 lb SKU:
  • Water soluble concentrate for wire EDM cutting
  • Non-toxic, without nitrite or Diethanolamine
  • Suitable for cutting all types of conductive materials
  • Dissolving ratio 1:5,5
  • Quantity: 10 kg
Warning beacon
Warning beacon SKU:
AC power stabilizer
AC power stabilizer SKU:

Minimizes voltage variations caused by unstable power grids or heavy industrial loads.
