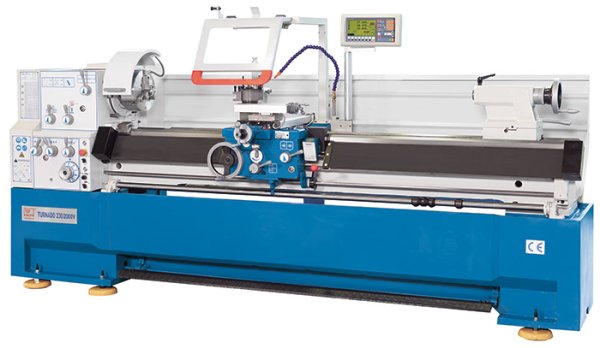

Turnado V Series

The turning machines of the Turnado series are characterized by their robust construction, powerful motor and versatility. For more than 20 years they have been among the tried and tested bestsellers of our conventional lathes.

5 models · Turning-Ø over bed 18–22 in · Workpiece length (max.) 39–79 in

Call
More about the series ↓

The 5 Turnado V models

Sorted by size

Model Turning-Ø over bedWorkpiece length (max.)Spindle boreMotor rating main drive Stock Request a quote
Turnado 230/1000 VItem No. 320570
Turning-Ø over bed18 in
Workpiece length (max.)39 in
Spindle bore2.3 in
Motor rating main drive10.1 Hp
Details
Turnado 230/1500 VItem No. 320571
Turning-Ø over bed18 in
Workpiece length (max.)59 in
Spindle bore2.3 in
Motor rating main drive10.1 Hp
Details
Turnado 230/2000 VItem No. 320575
Turning-Ø over bed18 in
Workpiece length (max.)79 in
Spindle bore2.3 in
Motor rating main drive10.1 Hp
Details
Turnado 280/1500 VItem No. 320572
Turning-Ø over bed22 in
Workpiece length (max.)56 in
Spindle bore3.1 in
Motor rating main drive10.1 Hp
Details
Turnado 280/2000 VItem No. 320573
Turning-Ø over bed22 in
Workpiece length (max.)76 in
Spindle bore3.1 in
Motor rating main drive10.1 Hp
Details

You will receive price and delivery time free of charge by email. Not sure which model fits?

All technical data compared
Feature Turnado 230/1000 VTurnado 230/1500 VTurnado 230/2000 VTurnado 280/1500 VTurnado 280/2000 V
Workpiece length (max.) 39 in59 in79 in56 in76 in
Turning-Ø over bed 18 in18 in18 in22 in22 in
Turning-Ø over support 9 in9 in9 in14 in14 in
Turning diameter over gap bridge 27 in27 in27 in31 in31 in
Spindle speeds L 30-600 / H 600-3000 rpmL 30-600 / H 600-3000 rpmL 30-600 / H 600-3000 rpmL 25-200 / H 200-1600 rpmL 25-200 / H 200-1600 rpm
Spindle bore 2.3 in2.3 in2.3 in3.1 in3.1 in
Spindle mount Camlock D1-6Camlock D1-6Camlock D1-6Camlock D1-8Camlock D1-8
Motor rating main drive 10.1 Hp10.1 Hp10.1 Hp10.1 Hp10.1 Hp
Weight 3,784 lbs4,334 lbs4,620 lbs5,214 lbs5,984 lbs
Tailstock taper 4 MT4 MT4 MT5 MT5 MT
Data sheet PDFPDFPDFPDFPDF

Standard on every Turnado V

  • 3-axis position indicator, X.pos 3.2 VC
  • Coolant system
  • Follow and steady rests
  • Adjustable feed stops
  • Fixed splash guard (wall)
  • Chuck guard
  • Foot brake pedal
  • Work light
  • Reducing sleeve
  • Dead center
  • Thread gauge
  • Micrometer longitudinal stop

And 3 more items. Full list per model under "Details".

About the Turnado V series

The turning machines of the Turnado series are characterized by their robust construction, powerful motor and versatility. For more than 20 years they have been among the tried and tested bestsellers of our conventional lathes. The V models are also equipped with an extended, infinitely variable speed range. In combination with the position indicator and integrated function of the constant cutting speed, you achieve a superior surface quality when facing. A high-quality quick-change toolholder system also lessens non-productive time and costs.
