Press Brakes and Brake Presses for Sheet Metal

A press brake bends sheet metal by forcing a punch into a die, from a single flange to multi-bend parts.

read more

A press brake bends sheet metal by forcing a punch into a die, from a single flange to multi-bend parts. KNUTH USA carries compact conventional hydraulic press brakes and large CNC press brakes with l...

read more
Call: +1-847-415-3333

Your KNUTH advisory team
Personal reply on the same working day.

  • Family-run since 1923Machine tools worldwide
  • Every machine testedbefore delivery
  • Machines in stockready in Chicago & Houston
  • Own service teamtechnicians in the USA

All models

Sheet thickness: guide value over the full length.

ModelPress forceBending lengthDistance between uprightsThroat depthStrokeSteel max.*Stainless max.*
AHK M NC – NC press brake
AHK M 1230 NC33.1 tons49.2 in39.8 in10 in5.91 in0.1 in0.06 in
AHK M 1540 NC44.1 tons61 in49.6 in12.6 in6.3 in0.12 in0.08 in

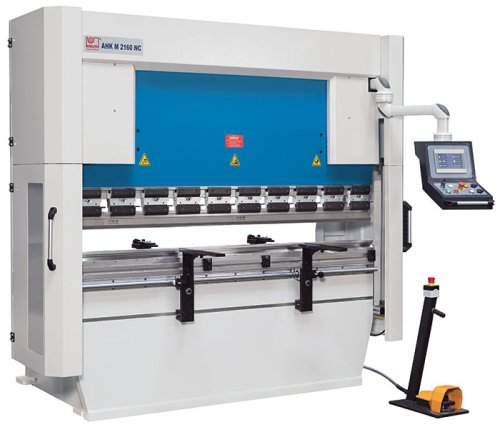

AHK M 2160 NC66.1 tons82.7 in66.9 in12.6 in6.3 in0.14 in0.08 in
AHK V CNC – CNC press brake
AHK V 13040 CNC44.1 tons51.2 in43.3 in12.2 in8.27 in0.14 in0.08 in
AHK V 20060 CNC66.1 tons82.7 in63 in12.2 in8.27 in0.14 in0.08 in
AHK V 26100 CNC110 tons102 in86.6 in16.1 in10.4 in0.18 in0.12 in
AHK V 30135 CNC149 tons122 in102 in16.1 in10.4 in0.2 in0.12 in
AHK V 30175 CNC193 tons122 in102 in16.1 in10.4 in0.26 in0.16 in
AHK V 30220 CNC243 tons122 in102 in16.1 in10.4 in0.33 in0.22 in
AHK V 30320 CNC353 tons122 in102 in16.1 in10.4 in0.49 in0.31 in
AHK V 30400 CNC441 tons122 in98.4 in20.1 in12.2 in0.61 in0.39 in
AHK V 37220 CNC243 tons146 in122 in16.1 in10.4 in0.28 in0.18 in
AHK V 40320 CNC353 tons161 in142 in16.1 in10.4 in0.37 in0.24 in

* Guide value based on the rule of thumb V = 8 × sheet thickness, over the full length: mild steel up to 65,000 psi, stainless steel up to 101,500 psi. The actual value depends on tooling and material.

Equipment

standard    optional extra

AHK M NC
AHK V CNC
Control

NC touchscreen, 500 programs

CNC Delem DA-53T with graphics

Delem DA58, DA66T or DA69T (3D)

Back gaugesets the flange length

2 axes: forward/back, up/down

Longer travel, more gauge fingers

1 axis: forward/back

2 or 4 axes

Longer travel, more gauge fingers

Crowningsame angle over the full length

Motorised

Motorised (AHK V 13040: option)

Tooling

Upper and lower tool (4 V openings), quick clamping

Upper and lower tool, hardened and ground

Upper tool 4.1 in high for deep boxes

European tool holder (Promecam) – standard tools fit.

Safety

Light curtains

AHK M 1230 also with AKAS laser guard

AKAS laser guard at the tool, rear light barrier

Operation

2 support arms, foot switch with emergency stop

2 support arms, foot switch, ECO mode

Energy-saving drive, more support arms, control cabinet air conditioning

FAQ's

A press brake bends sheet metal. The punch drives the blank into a bottom die to form a flange, and ram depth sets the bend angle. Shops use press brakes for enclosures, cabinets, brackets and formed parts across job shops, machinery building and sheet metal fabrication.An NC press brake offers a good balance between manual operation and automation, making it ideal for medium-sized batch production where some automation is desired but the full functionality of a CNC machine is not necessary. It is generally more cost-effective and easier to operate, making it particularly attractive for smaller workshops. A CNC press brake offers greater precision, repeatability, and flexibility thanks to fully automated control systems. These machines are ideal for complex bending tasks and large production volumes, as they enable programmable bending operations, thus significantly increasing efficiency and productivity. If your production requires high variability and precision, investing in a CNC press brake makes sense. For less complex requirements and a lower budget, an NC press brake is often the right choice.

The blank sits on the die and the ram brings the punch down into the die opening. Most jobs run as air bending, where the punch only dips in far enough to hit the target angle. Go deeper and the angle closes up, so you can dial in any open angle without changing tooling.

On a conventional brake you set the back gauge and ram depth by hand, which is rugged and cost-effective for simple flanges and short runs. A CNC brake drives the back gauge, tonnage and bend angle from a program, cutting setup time and holding the angle part to part on complex work and higher volume.

Yes. Press brake, brake press and bending press are all names for the same machine, where a punch drives the blank into a bottom die. A folding machine is a different type: it clamps the blank and swings a beam up to raise the flange. For die bending with a punch and die, the press brake is the machine you want.

Under load the ram deflects a little, so the bend angle can come out different in the middle than at the ends. Crowning compensates for that deflection so the angle holds across the full length. On CNC brakes crowning is applied automatically, which keeps long bends consistent.

Start with working length, tonnage and control. Working length has to cover your longest flange, and tonnage has to cover the gauge and alloy you run. Simple, repeating flanges do fine on a conventional brake, while complex parts and volume call for CNC. Send us a few typical parts and we will size the machine.

A press brake runs a punch on top and a die below. The punch sets the radius and form of the flange, and the die V-opening is matched to the gauge. Special tooling covers tight and multi-bend work, and quick-clamp systems speed the change. Punches and dies are available from KNUTH USA.

Yes. Every machine gets a documented inspection to European testing standards, and the result is documented before it ships, with the documentation available on request. We confirm the marking and paperwork that apply for the United States when we quote a machine.

They are. Conventional press brakes are a common starting point, because a student can watch the bend happen with simple controls. Add a CNC brake once the curriculum covers programming and repeatability. We help pick guarding and the right size for vocational programs.

The Americas service team looks after the machine after installation, with parts and technical support from Germany behind it. Parts supply is committed for ten years across the company. Installation, startup and operator training can be arranged on request.

What a press brake does in a fab shop

A press brake, called a brake press or bending press on the shop floor, is the machine that puts the bend in sheet metal. An upper tool, the punch, drives the blank into a bottom die to form a flange, and the depth of the ram stroke sets the bend angle, from one clean flange to a tight multi-bend part. That is how enclosures, cabinets, brackets and formed parts get made for job shops, vehicle building and sheet metal fabrication. KNUTH USA carries press brakes in conventional and CNC versions and in a range of sizes.

How a press brake forms a bend

The blank sits on the die, the ram brings the punch down, and the punch drives the material into the die opening. Most work is air bending: the punch only dips in far enough to hit the target angle, without bottoming the part into the die. Ram depth sets the angle, and going deeper closes it up, so any open angle can be dialled in without swapping tooling. Two things drive accuracy on the part:

How long a bend you can run and how much tonnage you need come down to gauge and alloy. The rated capacity for each machine on offer is listed on the product cards above.

Conventional vs. CNC press brake: which one to buy

KNUTH press brakes are hydraulic, and the control is what sets them apart:

Rule of thumb: simple, repeating flanges point to a conventional machine; complex parts and volume point to a CNC brake.

Capacity and machine sizes

Two numbers steer the pick. Working length has to cover your longest flange, and tonnage has to cover the mix of gauge and alloy. Heavier gauge and longer flanges call for more tonnage. KNUTH USA carries press brakes from a compact unit for the maintenance shop up to a long, high-tonnage CNC machine for structural work. Add a programmable back gauge for repeatable positioning, crowning for an even angle, and guarding to protect the operator. The rated numbers for each series are on the product cards above.

Tooling, dies and accessories

The tooling makes the part on a press brake. Punch and die set the angles and inside radii you can hit:

Which tooling you need depends on your material and your bends. Punches, dies and accessories go on the same quote as the machine.

Industries and shop types we supply

Press brakes run in a lot of shops. Typical parts and buyers include:

To cut blanks ahead of bending, KNUTH USA supplies guillotine shears, and for bending without swapping tooling, folding machines.

Why KNUTH USA

KNUTH is a machine tool supplier, not a machine builder. We pick proven series and quality-check every machine before delivery. Machine stock and the parts warehouse sit in Lincolnshire outside Chicago, and Houston covers the southern territory with sales and service. You deal with a US point of contact, get advice on working length, tonnage and tooling instead of a catalog pick, and can see a machine in person. For the full lineup, see the sheet metal processing machines category.

Service, parts and lead times

After the sale the Americas service team looks after the machine, backed by local service. Parts supply is committed for ten years across the company. Installation, startup and operator training can be arranged on request, with the scope spelled out on the quote. Reach us through the contact page for help sizing a brake, choosing tooling or checking availability.
