Portalo C CNC Series

Machines of the Portalo C CNC series are specifically designed for precision machining of large and heavy workpieces. The machine frame features a fixed gantry and a movable table. The machines in this series are perfect solutions for heavy-duty machining and high-speed machining of complex dies and forms. An extensive assortment of standard equipment allows for easy adaptation for specific requirements.
Machines of the Portalo C CNC series are specifically designed for precision machining of large and heavy workpieces. The machine frame features a fixed gantry and a movable table. The machines in thi...
read more
Models
Portalo C 4022 CNC Portalo C 3022 CNC Portalo C 3019 CNC Portalo C 2519 CNC Portalo C 2014 CNC
Table dimensions
157 in x 71 in
118 in x 71 in
118 in x 59 in
98 in x 59 in
79 in x 47 in
Table load capacity (max.)
22000 lbs
22000 lbs
19800 lbs
15400 lbs
8800 lbs
Column distance
87 in
87 in
75 in
75 in
55 in
Travel X-axis
165.4 in
126 in
122 in
102.4 in
82.7 in
Travel Y-axis
98 in
98 in
75 in
75 in
55 in
Travel Z-axis
39 in
39 in
35 in
35 in
31 in
Spindle mount
SK 50 ISO 7388-1 (DIN 69871)
SK 50 ISO 7388-1 (DIN 69871)
SK 50 ISO 7388-1 (DIN 69871)
SK 50 ISO 7388-1 (DIN 69871)
SK 50 ISO 7388-1 (DIN 69871)
Spindle speed
6000 rpm
6000 rpm
6000 rpm
6000 rpm
6000 rpm
Motor rating main drive
34.9 Hp
34.9 Hp
34.9 Hp
34.9 Hp
34.9 Hp
Overall dimensions (length x width x height)
394 in x 201 in x 193 in
315 in x 201 in x 193 in
335 in x 170 in x 189 in
296 in x 170 in x 189 in
249 in x 164 in x 176 in
Weight
74800 lbs
66000 lbs
48400 lbs
44000 lbs
35200 lbs
View Machine
View Machine
View Machine
View Machine
View Machine
-
Table dimensions
Table load capacity (max.)
Column distance
Travel X-axis
Travel Y-axis
Travel Z-axis
Spindle mount
Spindle speed
Motor rating main drive
Overall dimensions (length x width x height)
Weight
Portalo C 4022 CNC
Table dimensions 157 in x 71 in
Table load capacity (max.) 22000 lbs
Column distance 87 in
Travel X-axis 165.4 in
Travel Y-axis 98 in
Travel Z-axis 39 in
View Machine
Portalo C 3022 CNC
Table dimensions 118 in x 71 in
Table load capacity (max.) 22000 lbs
Column distance 87 in
Travel X-axis 126 in
Travel Y-axis 98 in
Travel Z-axis 39 in
View Machine
Portalo C 3019 CNC
Table dimensions 118 in x 59 in
Table load capacity (max.) 19800 lbs
Column distance 75 in
Travel X-axis 122 in
Travel Y-axis 75 in
Travel Z-axis 35 in
View Machine
Portalo C 2519 CNC
Table dimensions 98 in x 59 in
Table load capacity (max.) 15400 lbs
Column distance 75 in
Travel X-axis 102.4 in
Travel Y-axis 75 in
Travel Z-axis 35 in
View Machine

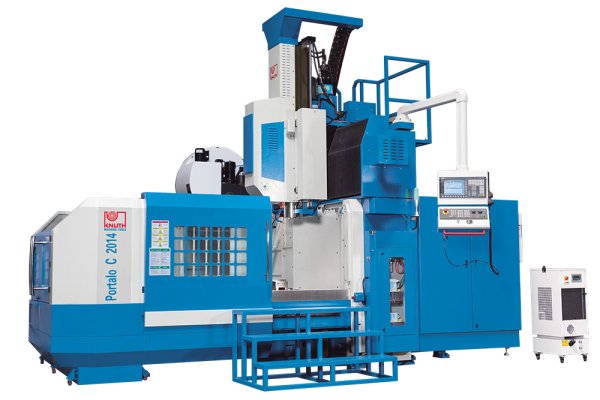

Portalo C 2014 CNC
Table dimensions 79 in x 47 in
Table load capacity (max.) 8800 lbs
Column distance 55 in
Travel X-axis 82.7 in
Travel Y-axis 55 in
Travel Z-axis 31 in
View Machine
