Knuth

Mark Super Series

The models of the Mark Super series are drilling and milling machines in the best way. They are ideal as a compact drill with a powerful drive and a wide speed range. But these machines also cut a fine figure when milling steel and non-ferrous metals. They are therefore widespread in workshops and maintenance departments for single piece machining, small series production or training departments. Thanks to their compact design and versatility, they are still a bestseller even after 15 years.
The models of the Mark Super series are drilling and milling machines in the best way. They are ideal as a compact drill with a powerful drive and a wide speed range. But these machines also cut a fin...
read more
Models
Table dimensions
31 in x 9 in
31 in x 9 in
Drilling capacity in steel
1 in
1 in
Travel X-axis manual / autom.
19 / 22 in
19 / 22 in
Spindle mount
R8
R8
Quill stroke
5 in
5 in
Spindle nose-to-table distance
18 in
18 in
Speed
(2) 75-438 / 438-2500 rpm
(12) 75-3200 rpm
Main motor rating
2 Hp
2 / 1.5 Hp
Overall dimensions (length x width x height)
49 in x 37 in x 83 in
50 in x 38 in x 84 in
Weight
836 lbs
836 lbs
-
Table dimensions
Drilling capacity in steel
Travel X-axis manual / autom.
Spindle mount
Quill stroke
Spindle nose-to-table distance
Speed
Main motor rating
Overall dimensions (length x width x height)
Weight

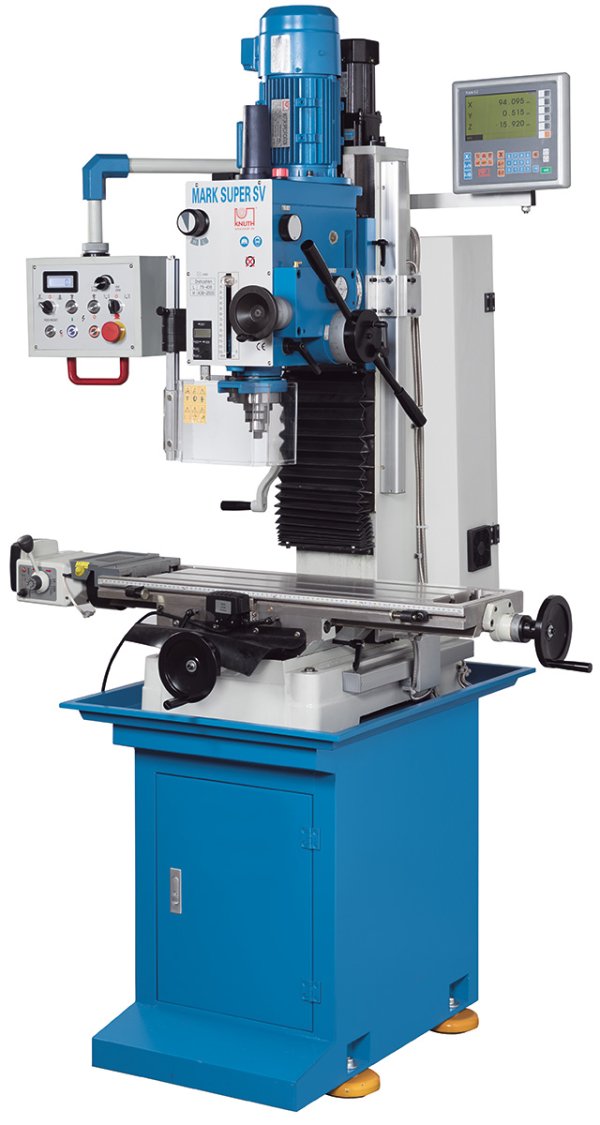

Mark Super SV
Table dimensions 31 in x 9 in
Drilling capacity in steel 1 in
Travel X-axis manual / autom. 19 / 22 in
Spindle mount R8
Quill stroke 5 in
Spindle nose-to-table distance 18 in
View Machine
Mark Super S
Table dimensions 31 in x 9 in
Drilling capacity in steel 1 in
Travel X-axis manual / autom. 19 / 22 in
Spindle mount R8
Quill stroke 5 in
Spindle nose-to-table distance 18 in
View Machine
