R-VT PRO Series

The R-VT PRO models represent the new generation of the widely used conventional radial drill presses. The unique operating concept simplifies machining and supports the user during the selection of operating parameters.

3 models · Drilling capacity 1.57–3.15 in · Motor rating main drive 3–10.1 Hp

Call
More about the series ↓

The 3 R-VT PRO models

Sorted by size

Model Drilling capacityMotor rating main drive Stock Request a quote
R 40 VT PROItem No. 101601
Drilling capacity1.57 in
Motor rating main drive3 Hp
Details
R 60 VT PROItem No. 101603
Drilling capacity2.36 in
Motor rating main drive5.4 Hp
Details

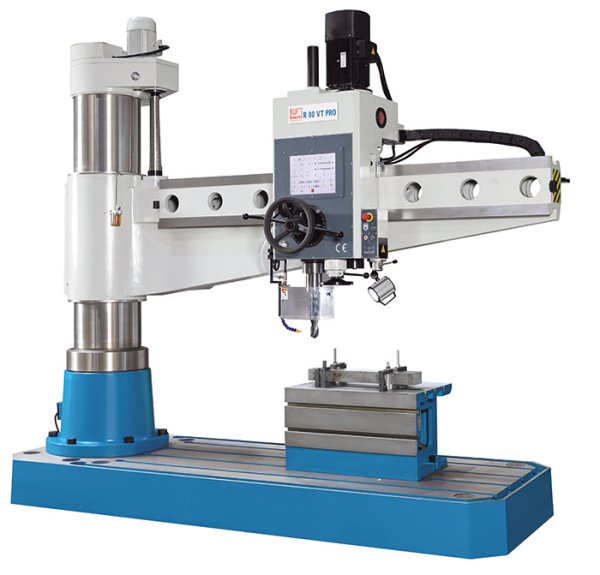

R 80 VT PROItem No. 101602
Drilling capacity3.15 in
Motor rating main drive10.1 Hp
Details

You will receive price and delivery time free of charge by email. Not sure which model fits?

All technical data compared
Feature R 40 VT PROR 60 VT PROR 80 VT PRO
Drilling capacity 1.57 in2.36 in3.15 in
Drilling depth (max.) 10 in12 in16 in
Spindle nose-to-table surface distance 12 in - 47 in14 in - 49 in14 in - 61 in
Speed range 74 rpm - 2,200 rpm38 rpm - 2,000 rpm30 rpm - 1,400 rpm
Motor rating main drive 3 Hp5.4 Hp10.1 Hp
Overall dimensions (length x width x height) 82 in x 41 in x 99 in99 in x 42 in x 110 in142 in x 50 in x 141 in
Weight 5,060 lbs8,360 lbs16,280 lbs
Data sheet PDFPDFPDF

Standard on every R-VT PRO

  • Automatic thread cutting cycles
  • Touchscreen control panel
  • Servo motor for quill feed
  • Cube table
  • Manual central lubrication
  • Coolant system
  • LED work lights
  • Height adjustable spindle cover
  • Operating manual

About the R-VT PRO series

The R-VT PRO models represent the new generation of the widely used conventional radial drill presses. The unique operating concept simplifies machining and supports the user during the selection of operating parameters. These models allow precise drilling, countersinking, and thread cutting and are an ideal solution for single parts and small batch productions. These radial drill presses are widely used in repair and maintenance operations, tool and steel construction.
