R-V Series

Our range of radial drilling machines is one of the most versatile and powerful drilling solutions for drilling, reaming and countersinking in steel or cast iron. These models impress with their easy handling, even of large and heavy workpieces. The long projection arm makes it extremely flexible for use in many production and construction companies. The RV series is the modern, further developed version of the classic radial drilling machine and has been one of the most requested KNUTH models for more than 15 years.
Our range of radial drilling machines is one of the most versatile and powerful drilling solutions for drilling, reaming and countersinking in steel or cast iron. These models impress with their easy ...
read more
Models
R 40 V R 60 V R 80 V
Drilling capacity
1.57 in
2.36 in
3.15 in
Drilling depth (max.)
10 in
12 in
16 in
Spindle nose-to-table surface distance
12 in - 47 in
14 in - 49 in
16 in - 62 in
Speed range
54 rpm - 2150 rpm
38 rpm - 2000 rpm
30 rpm - 1400 rpm
Motor rating main drive
3 Hp
5.4 Hp
10.1 Hp
Overall dimensions (length x width x height)
82 in x 34 in x 96 in
99 in x 42 in x 110 in
142 in x 50 in x 139 in
Weight
5060 lbs
8360 lbs
16280 lbs
View Machine
View Machine
View Machine
-
Drilling capacity
Drilling depth (max.)
Spindle nose-to-table surface distance
Speed range
Motor rating main drive
Overall dimensions (length x width x height)
Weight
R 40 V
Drilling capacity 1.57 in
Drilling depth (max.) 10 in
Spindle nose-to-table surface distance 12 in - 47 in
Speed range 54 rpm - 2150 rpm
Motor rating main drive 3 Hp
Overall dimensions (length x width x height) 82 in x 34 in x 96 in
View Machine
R 60 V
Drilling capacity 2.36 in
Drilling depth (max.) 12 in
Spindle nose-to-table surface distance 14 in - 49 in
Speed range 38 rpm - 2000 rpm
Motor rating main drive 5.4 Hp
Overall dimensions (length x width x height) 99 in x 42 in x 110 in
View Machine

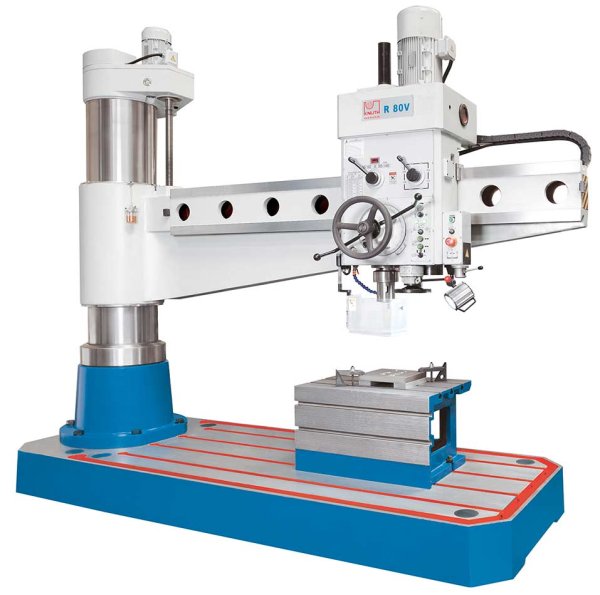

R 80 V
Drilling capacity 3.15 in
Drilling depth (max.) 16 in
Spindle nose-to-table surface distance 16 in - 62 in
Speed range 30 rpm - 1400 rpm
Motor rating main drive 10.1 Hp
Overall dimensions (length x width x height) 142 in x 50 in x 139 in
View Machine
