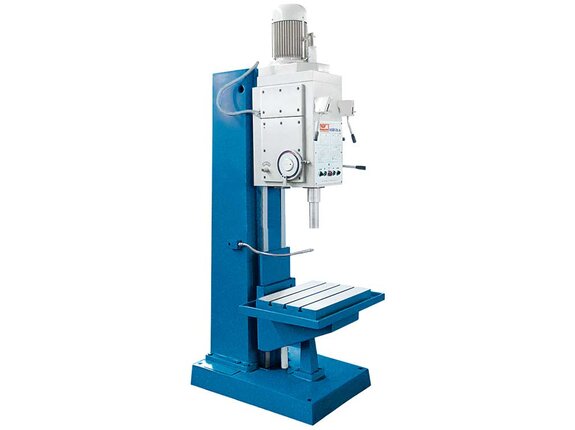

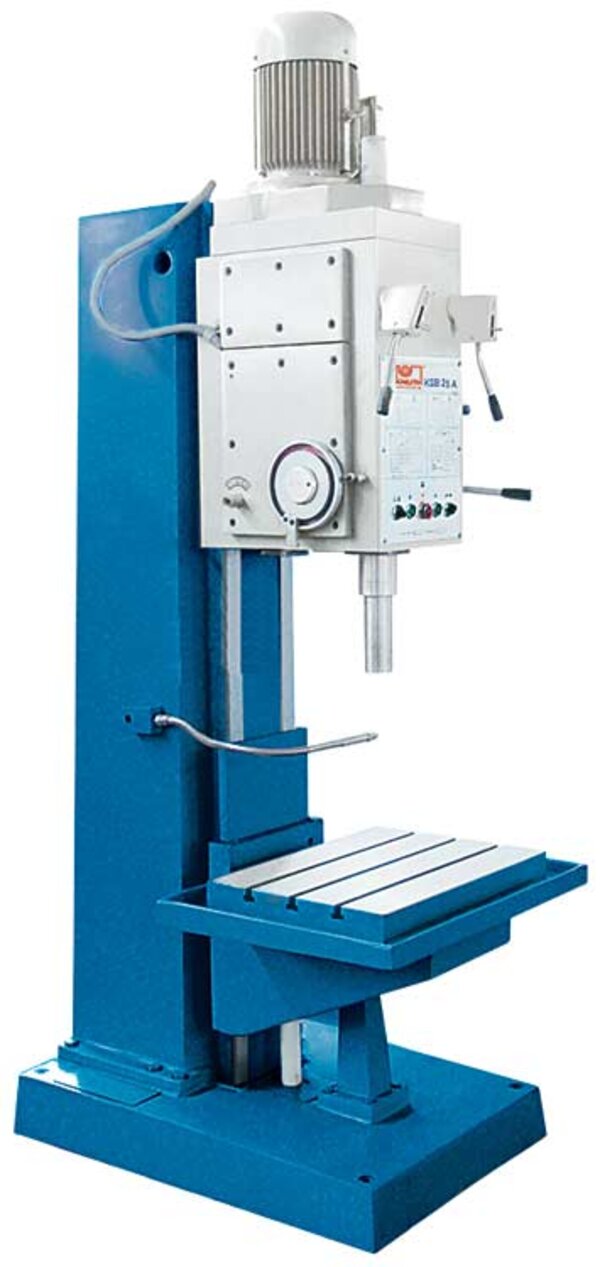

KSB 25A - Sturdy box column design reduces torsion and vibration for superior drilling, reaming and tapping performance
KSB 25A - Sturdy box column design reduces torsion and vibration for superior drilling, reaming and tapping performance

INDUSTRIAL DRILL PRESSE

KSB 25A

SKU : 101691

The box column drilling machines of the KSB series are the heavyweights among column drilling machines. Their unwavering stability enables superior performance in demanding applications. Nothing vibrates here. Nothing bends here. Finely stepped spindle and feed gears provide the correct machining parameters for large bores. The table and head can be adjusted on the column and cannot be swiveled, which provides an additional advantage in terms of stability.

  • Extremely rigid box-column design
  • Table and drill head can each be positioned in height
  • High torque and drilling capacity
  • Powerful automatic feed
  • Includes thread cutting unit
Working Area
Drilling capacity 0.98 in
Table set up area 16 in x 22 in
T-slots, width 0.6 in
Number of T-slots 3 positions
Quill stroke 8 in
Table stroke 12 in
Feed Z-axis 0.0022 in/R - 0.0709 in/R
Feed force, axial (max.) 9 kN
Spindle nose-to-table surface distance 29 in
Throat depth 11 in
Vertical head travel 8 in
Headstock
Spindle speed 50 rpm - 2000 rpm
Spindle torque (max.) 118 ft.lb.
Spindle taper 3 MT
Drive Capacity
Motor rating main drive 3 Hp
Motor rating coolant pump 0.1 Hp
Measures and Weights
Flow rate 6.6 gal/min
Overall dimensions (length x width x height) 38 in x 34 in x 93 in
Weight 2090 lbs

  • Box-column design provides high load capacity, and is torsion-proof and rigid
  • Table and drill head can be moved individually for an optimum machining height
  • 9-step feed and speed gears, with oil-bath lubrication
  • High torque across the entire speed range
  • Thread-cutting unit automatically reverses upon reaching the preset depth
  • Rapid quill feed with drill cycle processing (KSB 63 B)

Coolant system SKU:
Coolant system
Coolant system SKU:
Thread cutting function
Thread cutting function SKU:
  • The tapping mode can be selected from the control panel
  • In this mode, when the selected thread depth is reached, the machine automatically changes the direction of rotation of the main spindle
Work lamp
Work lamp SKU:
Operating tools
Operating tools SKU:
Operating manual
Operating manual SKU:

Resources & Downloads

Similar Products

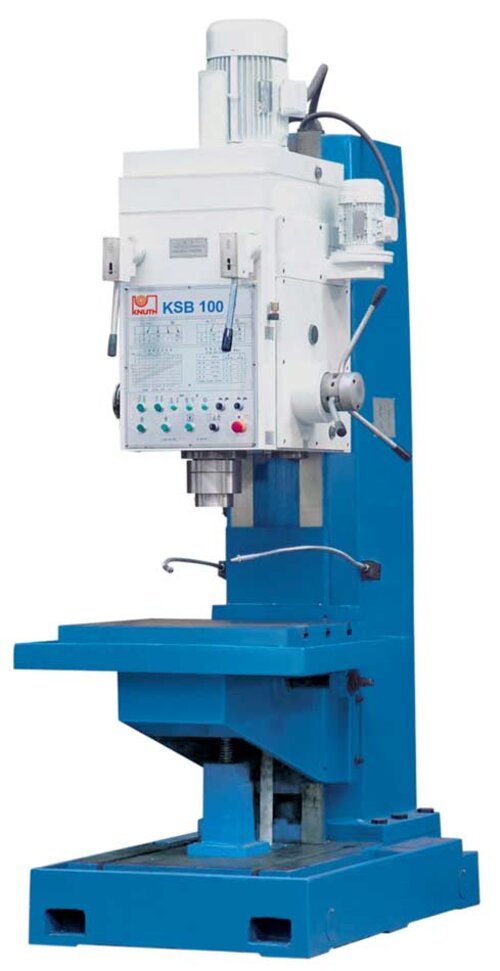

KSB 100 - Sturdy box column design reduces torsion and vibration for superior drilling, reaming and tapping performance
