Turnado Pro Series

The machines of the Turnado PRO series are the modern version of the classic lathe. The PRO models are the latest generation of our universal lathes, which have been tried and tested for 20 years. With constant cutting speed, rapid traverses and an extended speed range that can be controlled by an inverter, these models are characterized by high-performance machining, excellent surface quality and time efficiency. They are easy to recognize by the new ergonomic cladding design, which integrates all functions into an overall concept.
The machines of the Turnado PRO series are the modern version of the classic lathe. The PRO models are the latest generation of our universal lathes, which have been tried and tested for 20 years. Wit...
read more
Models
Center width
1000 mm
1500 mm
1500 mm
Center height
230 mm
230 mm
280 mm
In-gap diameter over bed
460 mm
460 mm
560 mm
Turning diameter over gap bridge
690 mm
690 mm
785 mm
Turning-Ø over support
224 mm
224 mm
355 mm
Speed range, low
30 1/min - 600 1/min
30 1/min - 600 1/min
25 1/min - 200 1/min
Speed range, high
600 1/min - 3000 1/min
600 1/min - 3000 1/min
200 1/min - 1600 1/min
Spindle mount
Camlock D1-6
Camlock D1-6
Camlock D1-8
Motor rating main drive
7.5 kW
7.5 kW
7.5 kW
Weight
1720 kg
1970 kg
2370 kg
-
Center width
Center height
In-gap diameter over bed
Turning diameter over gap bridge
Turning-Ø over support
Speed range, low
Speed range, high
Spindle mount
Motor rating main drive
Weight
Turnado 230/1000 PRO
Center width 1000 mm
Center height 230 mm
In-gap diameter over bed 460 mm
Turning diameter over gap bridge 690 mm
Turning-Ø over support 224 mm
Speed range, low 30 1/min - 600 1/min
View Machine

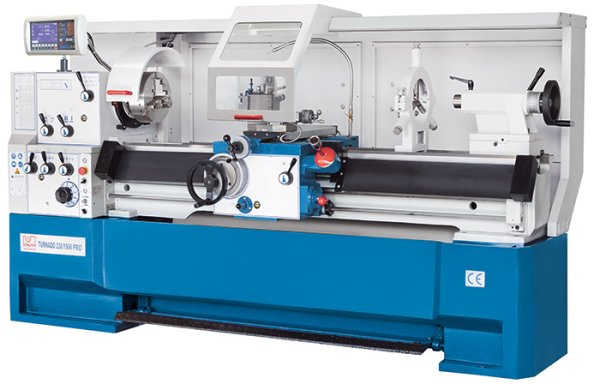

Turnado 230/1500 PRO
Center width 1500 mm
Center height 230 mm
In-gap diameter over bed 460 mm
Turning diameter over gap bridge 690 mm
Turning-Ø over support 224 mm
Speed range, low 30 1/min - 600 1/min
View Machine
Turnado 280/1500 PRO
Center width 1500 mm
Center height 280 mm
In-gap diameter over bed 560 mm
Turning diameter over gap bridge 785 mm
Turning-Ø over support 355 mm
Speed range, low 25 1/min - 200 1/min
View Machine
