V-Turn Series

Our bestseller V-Turn is a precision lathe that is also suitable for production. Equipped with an inverter and a high-performance motor, it achieves spindle speeds of up to 3,000 1/min and processes workpieces with small diameters efficiently and of the best quality.

2 models · Turning diameter over bed 380 mm · Center width 1.000–1.500 mm

Call
More about the series ↓

The 2 V-Turn models

Sorted by size

Model Turning diameter over bedCenter widthSpindle boreMotor rating main drive Stock Request a quote

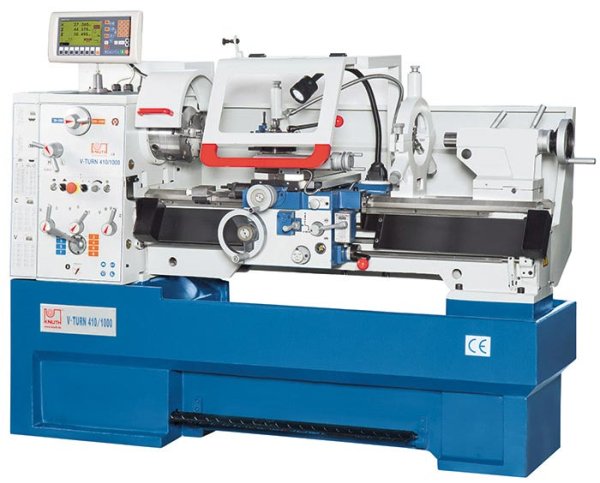

V-Turn 410/1000Item No. 300820
Turning diameter over bed380 mm
Center width1.000 mm
Spindle bore52 mm
Motor rating main drive5,5 kW
Details
V-Turn 410/1500Item No. 300821
Turning diameter over bed380 mm
Center width1.500 mm
Spindle bore52 mm
Motor rating main drive5,5 kW
Details

You will receive price and delivery time free of charge by email. Not sure which model fits?

All technical data compared
Feature V-Turn 410/1000V-Turn 410/1500
Center width 1.000 mm1.500 mm
Center height 205 mm205 mm
Turning diameter over bed 380 mm380 mm
Turning diameter over gap bridge 580 mm580 mm
Turning-Ø over support 255 mm255 mm
Travel Z1-axis 140 mm140 mm
Speed range, high 550 1/min - 3.000 1/min550 1/min - 3.000 1/min
Speed range, low 30 1/min - 550 1/min30 1/min - 550 1/min
Spindle bore 52 mm52 mm
Spindle mount Camlock D1-6Camlock D1-6
Motor rating main drive 5,5 kW5,5 kW
Weight 1.200 kg1.800 kg
Data sheet PDFPDF

Standard on every V-Turn

  • 3-axis position indicator, X.pos 3.2 VC
  • 4-jaw face plate chuck Ø 250 mm
  • Face plate Ø 350 mm
  • Quick-change toolpost head WB
  • Quick change tool holder WBD 25120
  • Coolant system
  • Steady rest
  • Follow rest
  • Turret stop
  • Micrometer stop
  • Chip tray
  • Fixed splash guard (wall)

And 9 more items. Full list per model under "Details".

About the V-Turn series

Our bestseller V-Turn is a precision lathe that is also suitable for production. Equipped with an inverter and a high-performance motor, it achieves spindle speeds of up to 3,000 1/min and processes workpieces with small diameters efficiently and of the best quality. The models also offer strength and stability for heavier machining. When facing, the "constant cutting speed" function integrated in the X-Pos adapts the spindle speed to the turning diameter and thus delivers quality that is comparable to the results of a CNC machine.
