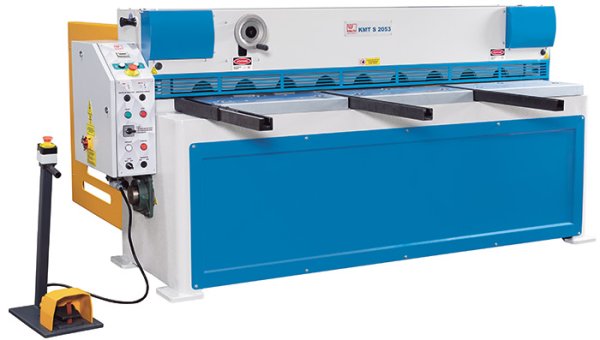

KMT S Series

The KMT S series has stable construction and is of high quality. The modern guillotine shears have a powerful, motorised drive that enables high cutting performance. The construction with guided cutting blades and a small cutting angle enables cuts with little twist in the workpiece. The backgauge can be precisely positioned using the handwheel accessible from the front.
The KMT S series has stable construction and is of high quality. The modern guillotine shears have a powerful, motorised drive that enables high cutting performance. The construction with guided cutti...
read more
Models
KMT S 3052 KMT S 1353 KMT S 1553 KMT S 2053 KMT S 2552
Cutting angle
1.3 deg
2.32 deg
2.05 deg
1.58 deg
1.3 deg
Rear stop
30 in
30 in
30 in
30 in
30 in
Plate thickness (max.) - 450 N/mm²
0.004 in - 0.079 in
0.004 in - 0.118 in
0.004 in - 0.118 in
0.004 in - 0.118 in
0.004 in - 0.098 in
Plate thickness(max.) - 700 N/mm²
0.039 in
0.059 in
0.059 in
0.059 in
0.049 in
Working length
120 in
53 in
61 in
81 in
100 in
Motor rating main drive
5.4 Hp
4 Hp
4 Hp
5.4 Hp
5.4 Hp
Overall dimensions (length x width x height)
146 in x 85 in x 52 in
76 in x 85 in x 52 in
85 in x 85 in x 52 in
107 in x 85 in x 52 in
126 in x 85 in x 52 in
Weight
4840 lbs
2750 lbs
3410 lbs
3850 lbs
4290 lbs
View Machine
View Machine
View Machine
View Machine
View Machine
-
Cutting angle
Rear stop
Plate thickness (max.) - 450 N/mm²
Plate thickness(max.) - 700 N/mm²
Working length
Motor rating main drive
Overall dimensions (length x width x height)
Weight
KMT S 3052
Cutting angle 1.3 deg
Rear stop 30 in
Plate thickness (max.) - 450 N/mm² 0.004 in - 0.079 in
Plate thickness(max.) - 700 N/mm² 0.039 in
Working length 120 in
Motor rating main drive 5.4 Hp
View Machine
KMT S 1353
Cutting angle 2.32 deg
Rear stop 30 in
Plate thickness (max.) - 450 N/mm² 0.004 in - 0.118 in
Plate thickness(max.) - 700 N/mm² 0.059 in
Working length 53 in
Motor rating main drive 4 Hp
View Machine
KMT S 1553
Cutting angle 2.05 deg
Rear stop 30 in
Plate thickness (max.) - 450 N/mm² 0.004 in - 0.118 in
Plate thickness(max.) - 700 N/mm² 0.059 in
Working length 61 in
Motor rating main drive 4 Hp
View Machine
KMT S 2053
Cutting angle 1.58 deg
Rear stop 30 in
Plate thickness (max.) - 450 N/mm² 0.004 in - 0.118 in
Plate thickness(max.) - 700 N/mm² 0.059 in
Working length 81 in
Motor rating main drive 5.4 Hp
View Machine
KMT S 2552
Cutting angle 1.3 deg
Rear stop 30 in
Plate thickness (max.) - 450 N/mm² 0.004 in - 0.098 in
Plate thickness(max.) - 700 N/mm² 0.049 in
Working length 100 in
Motor rating main drive 5.4 Hp
View Machine
