Servogrind® RSM NC Series

The Servogrind® RSM NC is a precision cylindrical grinding machine for long and heavy workpieces. Instead of a conventional hydraulic unit, however, the series has a modern servo motor drive for both axes, which raises the dynamics, efficiency and precision of the machine to a new level. The series is suitable for both single part and small batch production and offers additional flexibility with the internal grinding device. The solid construction with a large machine bed, ground guideways and p...
read more
The Servogrind® RSM NC is a precision cylindrical grinding machine for long and heavy workpieces. Instead of a conventional hydraulic unit, however, the series has a modern servo motor drive for both ...
read more
Models
Servogrind® RSM 1500 NC Servogrind® RSM 1000 NC Servogrind® RSM 600 NC
Center height
7 in
7 in
7 in
Grinding length
59 in
39 in
24 in
Grinding diameter
0.3 in - 12.6 in
0.3 in - 12.6 in
0.3 in - 12.6 in
Inside grinding depth
4.9 in
4.9 in
4.9 in
Work piece weight between centers (max.)
330 lbs
330 lbs
220 lbs
Overall dimensions (length x width x height)
201 in x 87 in x 71 in
162 in x 87 in x 71 in
120 in x 91 in x 79 in
Weight
8140 lbs
7260 lbs
6160 lbs
Grinding wheel dimensions
15.75 in x 1.97 in
15.75 in x 1.97 in
15.75 in x 1.97 in
View Machine
View Machine
View Machine
-
Center height
Grinding length
Grinding diameter
Inside grinding depth
Work piece weight between centers (max.)
Overall dimensions (length x width x height)
Weight
Grinding wheel dimensions

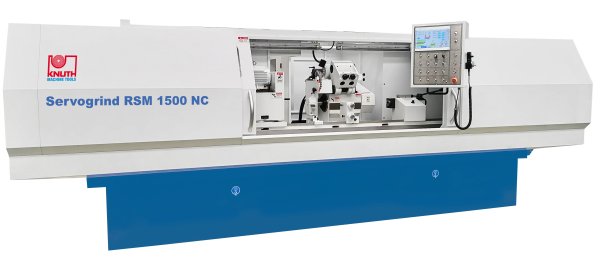

Servogrind® RSM 1500 NC
Center height 7 in
Grinding length 59 in
Grinding diameter 0.3 in - 12.6 in
Inside grinding depth 4.9 in
Work piece weight between centers (max.) 330 lbs
Overall dimensions (length x width x height) 201 in x 87 in x 71 in
View Machine
Servogrind® RSM 1000 NC
Center height 7 in
Grinding length 39 in
Grinding diameter 0.3 in - 12.6 in
Inside grinding depth 4.9 in
Work piece weight between centers (max.) 330 lbs
Overall dimensions (length x width x height) 162 in x 87 in x 71 in
View Machine
Servogrind® RSM 600 NC
Center height 7 in
Grinding length 24 in
Grinding diameter 0.3 in - 12.6 in
Inside grinding depth 4.9 in
Work piece weight between centers (max.) 220 lbs
Overall dimensions (length x width x height) 120 in x 91 in x 79 in
View Machine
