MF 1 VP - Vertical milling machine featuring automatic feed on X axis, tilt and swivel head, and pneumatic tool clamping
MF 1 VP - Vertical milling machine featuring automatic feed on X axis, tilt and swivel head, and pneumatic tool clamping

MF 1 VP

SKU : 301215

The multi-purpose milling machine series MF1 impresses with its design and is indispensable in many repair workshops as well as training and production departments. The X-axis is steplessly adjustable with a feed device and the swiveling vertical milling head with a wide steplessly adjustable speed range processes steel up to non-ferrous metals. The standard accessories include an automatic quill feed and pneumatic tool clamping as well as a mounted position indicator.

  • Swiveling, tiltable cutter head with quill feed
  • Pneumatic tool tightening system
  • Infinitely variable spindle speed
  • Feed on X-axis with rapid feed
  • Extensive standard equipment
Ready to ship
Working area
Table set up area 1245 mm x 230 mm
Number of T-slots 3 positions
Travels
Travel X-axis 760 mm
Travel Y-axis 290 mm
Travel Z-axis 370 mm
Vertical milling head
Spindle speeds 60 1/min - 4200 1/min
Quill stroke 127 mm
Spindle mount ISO 30
Throat 171 mm - 476 mm
Feed
Feed speed X-axis 19 mm/min - 890 mm/min
Quill feeds (3) 0,04;0,08;0,13 mm/R
Console travel (Z-axis) 370 mm
Drive capacity
Motor rating main drive 2,25 kW
Measures and weights
Overall dimensions (length x width x height) 2,05 m x 1,63 m x 2,07 m
Weight 950 kg

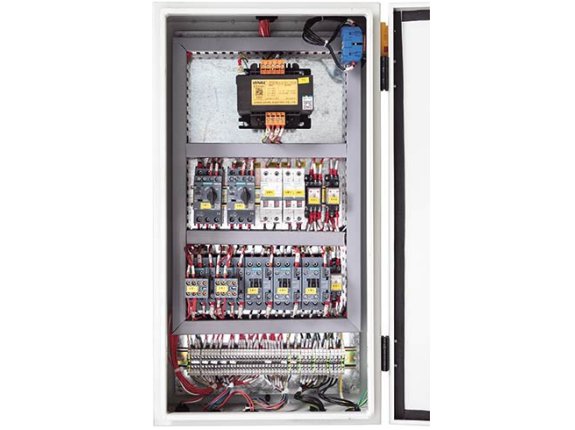

  • The most widely used milling machine type in the world - with standard pneumatic tool clamping
  • Infinitely variable spindle speed via hand wheel adjustment
  • Larger table with larger travel on X
  • TV 1000 automatic table advance on X-axis is included, retrofitting of Y-axis available
  • Head swivels on 3 axes: swivel r + l ± 90°; tilt forward + reverse ± 45°; rotation on the column ± 45°
  • Dovetail guides, hardened, adjustable
  • 3 automatic drill feeds
  • Manual coarse feed for quill, with change-over for manual fine feed
  • Quill with automatic micrometer depth stop
  • Reversing switch for forward reverse rotation
  • Central lubrication for spindle, nut and guides
  • Manual spindle brakes
  • Pneumatic tool clamping
  • 3-axis position indicator, coolant system, and LED work lamp (included in standard equipment)

3-axis position indicator

  • More accuracy
  • Lower error rate
  • Increased productivity
  • Resulting in valuable time savings
  • For increased productivity
  • Easy to read display
  • Operator-specific features
  • Convenient keyboard layout
  • Resolution: 0.01/ 0.005 mm
  • Default coordinates
  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Calculator function
  • Storage for 10 tools
  • Radius / diameter toggle
  • Mm/inch conversion
  • Easy expansion and maintenance-free operation

3-axis position indicator X.Pos 3.2
automatic table feed in X direction (TV 1000)
pneumatic tool clamping
coolant system
central lubrication
vertical guideway cover
LED work lamp
operating tools
operator manual

Pivoted Mounts LK 3
  • Damper elements absorb shock and vibration
  • Vibration-free machine operation
  • Set screws allow for easy machine alignment
Pivoted Mounts LK 3 SKU: 103330
Pivoted Mounts LK 3
  • Damper elements absorb shock and vibration
  • Vibration-free machine operation
  • Set screws allow for easy machine alignment
Universal Facing ADA / SK 30 SKU: 103403
Universal Facing ADA / SK 30
  • With self-actuated slide advance and automatic stop activation
  • Can be used on drill presses, lathes, milling machines, etc.
  • Automatic advance ensures constant tool feed
  • Adjustable guides
  • Adjustable stops
  • Made of carbon-chromium-molybdenum steel
  • All parts are hardened and precision-ground
  • Guaranteed maximum accuracy
  • Incl. reducing sleeves 4, 8, 12 mm
SKU: 103700
  • For tools with Morse taper shank and ISO mount
  • Replaceable and exactly centered connection between machine and tool
  • For use in milling machines, machining centers, and drill units
  • Taper shank, ground inside and outside
  • Secure seat, high repeatability for tool changes
SKU: 103710
  • For tools with Morse taper shank and ISO mount
  • Replaceable and exactly centered connection between machine and tool
  • For use in milling machines, machining centers, and drill units
  • Taper shank, ground inside and outside
  • Secure seat, high repeatability for tool changes
Shell End Milling Arbor Ø16 SK 30 SKU: 103865
Shell End Milling Arbor Ø16 SK 30
  • For cutters with cross or longitudinal slot
  • Including parallel key, driver ring, cutter tightening screw, special wrench
  • Thread: M12
Shell End Milling Arbor Ø22 SK 30 SKU: 103870
Shell End Milling Arbor Ø22 SK 30
  • For cutters with cross or longitudinal slot
  • Including parallel key, driver ring, cutter tightening screw, special wrench
  • Thread: M12
Shell End Milling Arbor Ø27 SK 30 SKU: 103875
Shell End Milling Arbor Ø27 SK 30
  • For cutters with cross or longitudinal slot
  • Including parallel key, driver ring, cutter tightening screw, special wrench
  • Thread: M12
Shell End Milling Arbor Ø32 SK 30 SKU: 103880
Shell End Milling Arbor Ø32 SK 30
  • For cutters with cross or longitudinal slot
  • Including parallel key, driver ring, cutter tightening screw, special wrench
  • Thread: M12
SKU: 104595
  • Incl. keyless drill chuck and drill chuck arbors
  • In wooden case

Content / Set:

  • Reducing sleeve: ISO 30 / MT 2
  • Reducing sleeve: ISO 30 / MT 3
  • Tool holder bit: ISO 30 / B 18
  • Keyless drill chuck: 3-16 mm / B 18
Keyless Drill Chuck 1-13 mm B 16 SKU: 104765
Keyless Drill Chuck 1-13 mm B 16
  • Chucking range 1-13 mm
  • Mount B 16
Keyless Drill Chuck 3-16 mm B 18 SKU: 104770
Keyless Drill Chuck 3-16 mm B 18
  • Chucking range 3-16 mm
  • Mount B 18
Drill Chuck Arbors ISO 30 / B 16 SKU: 104775
Drill Chuck Arbors ISO 30 / B 16
  • Hardened and ground for optimum concentricity
  • High-precision design for mounting of drill chucks on milling machines, machining centers, equipment, etc.
Drill Chuck Arbors ISO 30 / B 18 SKU: 104776
Drill Chuck Arbors ISO 30 / B 18
  • Hardened and ground for optimum concentricity
  • High-precision design for mounting of drill chucks on milling machines, machining centers, equipment, etc.
SKU: 104918
  • Pull-down system: absolutely secure workpiece hold even during cutting of heavy parts
  • Hardened and precision-ground steel jaws
  • Dial turns 360° and has 1° scale division
  • Parallelism ± 0,03 mm / 100 mm
  • Precise, hardened jaw guides
  • Made of high-quality cast-iron
SKU: 104955
  • High quality cast iron
  • Hardened and ground replaceable steel jaws
  • Covered spindle
  • Forged bronze spindle nut
  • Including hand crank, swivel-base and scale
De Luxe Clamping Tool Set 16/M14 SKU: 105300
De Luxe Clamping Tool Set 16/M14
  • 52 parts
  • In a convenient, sturdy steel magazine
  • 24 stud bolts, 4 each in the lengths 75, 100, 125, 150, 175, 200 mm
  • 4 extension nuts, 6 stepped clamps (3 pair), 6 T-slot nuts, 6 hexagon nuts flanged, step blocks (3 pairs)
Set of Step Blocks SKU: 105340
Set of Step Blocks
  • 20 each (10 pairs) in wooden box
  • Black-finished steel
Stud Bolt Set, and T-Slot Nuts 16/M14 SKU: 105360
Stud Bolt Set, and T-Slot Nuts 16/M14
  • 38 parts
  • 24 stud bolts, 4 each in the lengths 75, 100, 125, 150, 175, 200 mm
  • 6 T-slot nuts
  • 4 extension nuts
  • Hexagon nuts flanged
Swivel Hold-Down Clamp Set 100/M14 SKU: 105795
Swivel Hold-Down Clamp Set 100/M14
  • High quality steel, black-finished
  • Available in pairs only
ER 32 Collet Set 6 pcs. SKU: 106052
ER 32 Collet Set 6 pcs.
  • 6 pcs: 6, 8, 10, 12, 16, 20 mm
ER 40 Collet Set 15 pcs. SKU: 106075
ER 40 Collet Set 15 pcs.
  • 6 pcs: 6, 8, 10, 12, 16, 20 mm
ER 32 Collet Chuck / Mount ISO 30 SKU: 106055
ER 32 Collet Chuck / Mount ISO 30
  • For clamping tools with cylindrical shank in ER collets according to DIN 6499
ER 40 Collet Chuck / Mount ISO 30 SKU: 106061
ER 40 Collet Chuck / Mount ISO 30
  • For clamping tools with cylindrical shank in ER collets according to DIN 6499
Roughing End Mill Cutter 63 SKU: 108402
Roughing End Mill Cutter 63
  • With cross groove
  • Right-hand cut with right-hand spiral
  • HSS-E, hardness HRC 68
  • Roughing cut teeth
Roughing Shank Cutter 10 pcs. SKU: 108445
Roughing Shank Cutter 10 pcs.

Set = 10 pieces

  • DIN 844 B, DIN 1835 B, Weldon shaft
  • HSS, ionized and therefore HRC 68
  • Right-hand cut
  • For materials up to 1000 N/mm2 strength
  • Diameter: 6, 8, 10, 12, 14, 16, 18, 20, 22, 25 mm
Lathe Bore Head with Boring Bar Set 50 mm 9 pcs. SKU: 108631
Lathe Bore Head with Boring Bar Set 50 mm 9 pcs.
  • For easy inside diameter turning on drill presses, lathes and milling machines
  • Micrometer screw for precise inside turning diameter adjustment
  • High quality steel hardened and precision-ground
  • Feed: 0.01 mm / division line
  • 2 vertical tool mounts, 1 horizontal tool mount
Lathe Bore Head with Boring Bar Set 75 mm 12 pcs. SKU: 108633
Lathe Bore Head with Boring Bar Set 75 mm 12 pcs.
  • For easy inside diameter turning on drill presses, lathes and milling machines
  • Micrometer screw for precise inside turning diameter adjustment
  • High quality steel hardened and precision-ground
  • Feed: 0.01 mm / division line
  • 2 vertical tool mounts, 1 horizontal tool mount
Mounting Shank for reaming head 50/75 mm EN ISO 30 SKU: 108635
Mounting Shank for reaming head 50/75 mm EN ISO 30
  • Mount with connection thread for reaming heads
  • With draw-in bolt thread for use on milling machines
  • Tapers are hardened and ground
  • The reaming head set is provided without mount
  • Shank with draw-in thread ISO 30
Dividing head HT SKU: 110953
Dividing head HT
  • For direct and indirect divisions
  • Spindle runs in precision tapered roller bearings
  • Phosphorous/bronze worm gear with hardened and ground CrNi steel worm
  • Disengage gears for direct divisions
  • Gear ratio 40:1
  • Swivels from 10° below horizontal to vertical (-10° to 90°)
  • Every division for 2 to 50 parts and many divisions up to 380 parts
Divider ST 130 SKU: 110960
Divider ST 130
  • Gear ratio 1:90, disengages for direct division, manual 360° rotation of chuck
  • Hand wheel with scale ring
  • Nonius division 10''
  • 6 masks for direct division of 2, 3, 4, 6, 8, 12, 24 parts
  • Hardened and ground teeth with 3-jaw chuck, 160 or 200 mm
Optional Accessory Set / ST 130 SKU: 110970
Optional Accessory Set / ST 130

Applications: Workpieces can be clamped between the divider and the tailstock for a horizontal workpiece alignment.

Upgrade to a Universal Divider

Dividing plate set for indirect dividing:

  • The spindle is positioned via dividing plates that have several concentric hole pattern
  • Using so-called shears (two pointers rotating around the crank shaft) simplifies positioning through several crank rotations, since counting between holes on the divider plate is not necessary
  • The user only has to count the number of full rotations
  • Benefit: Many divisions can be performed with only a few divider plates, higher accuracy is achieved by using a reduction worm gear, which causes a high-resolution continued rotation of the crank
SKU: 125012
  • Swivels on 2 axes
  • High precision vise for accurate and exact precisionsmechanics work (also suitable for watch making, jewellery industries)
  • Swivels from horizontal (180°) to vertical (90°)
  • Turns 360° on a dial
  • Jaws are made of hardened and precision-ground tool steel
SKU: 125024
  • Hardened and precision-ground jaws and body
  • High precision and wear-resistant material ensure long service-life
  • Clamping pressure is up to ten times as high as with conventional machine vises
  • Swivel-base mounted vise body, 360° swivel
  • Constant clamping pressure, unaffected by vibration and shock
  • Hydraulic power booster
INDEX-feature / RT 160-320 SKU: 125805
INDEX-feature / RT 160-320
  • For direct and indirect division
  • From 2 to 66, all divisions from 68 to 132 dividable by 2, 3 a. 5 can be performed
Rotary Table RT 200 SKU: 125835
Rotary Table RT 200
  • Completely enclosed design, prevents contamination from dirt and chips
  • Setup table rotates on a large ring-shaped box way
  • The very effective clamp pulls the setup table down straight, without any change of position or radial pressure and presses it against the guideway
  • For quick manual turning, the worm can be disengaged from the worm gear by pushing down the hand-lever
  • Setup table with 360° scale
  • The zero-backlash of worm and worm gear is adjustable
  • Hand wheel scale gradation 10''
  • Hand wheel can be replaced with indexing plate
  • With 4 radial setup T-slots (14 mm)
  • Very low profile
  • Guide slot in the vertical base plane
  • Can be used vertically

Accuracy (max. deviation):

  • Sface concentricity of work table setup surface 300 : 0.015
  • Concentricity of setup < = 0.015
  • Parallelism of setup to base surface 300 : 0.02
  • Concentricity of setup table taper bore < = 0.010
  • Parallelism of bore axis to vertical setup surface 0.03
  • Parallelism of bore axis to slot in the vertical setup surface 0.02
  • Parallelism between vertical setup area and conus taper connection axis - tailstock center 0.02
  • Parallelism between slot in the vertical setup surface and the connecting axis between centers 0.02
  • Division accuracy 45"

Resources & Downloads

  • MF 1 VP Brochure.pdf (0.31MB)

Need help finding a machine?

We will gladly assist you in making the right decision to achieve your business goals

Service by KNUTH

All machines need an occasional pit stop. With our all-encompassing plans for service, training and installation you always will get the best possible performance from your KNUTH machines.

View Services

See KNUTH Machines in action

Get a first-hand impression at one of our facilities! Many machines in our portfolio are always in stock and available for demonstration.

Book a Demo

Request a quote

MF 1 VP - Vertical milling machine featuring automatic feed on X axis, tilt and swivel head, and pneumatic tool clamping
MF 1 VP
SKU : 301215


This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Thank You!

We have received your request and appreciate your interest! Our sales representative will get in touch within 1 business day.

Something went wrong

Please refresh the page and try submitting the form again.

Request a Consultation



This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Thank You!

We have received your request and appreciate your interest! Our sales representative will get in touch within 1 business day.

Something went wrong

Please refresh the page and try submitting the form again.
