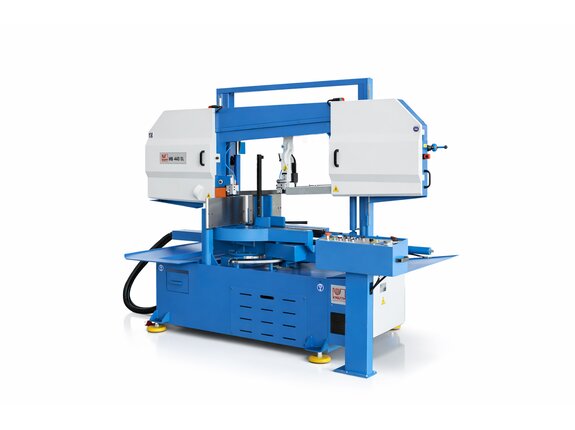

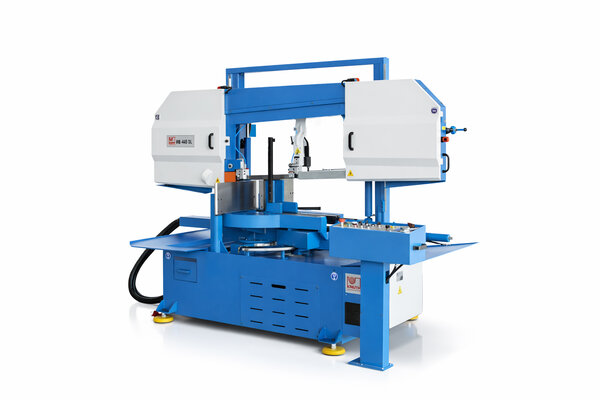

HB 440 DL - HB DL – Semi-automatic double mitre band saw up to 60°
HB 440 DL - HB DL – Semi-automatic double mitre band saw up to 60°

SEMI-AUTO BANDSAW

HB 440 DL

SKU : 152803

The HB DL is a semi-automatic, high-performance double-mitre band saw designed for precise and cost-effective cutting in series production. Thanks to its swivel range of up to 60° and its sturdy double-column construction, it is ideal for straight and mitre cuts in solid material, tubes and profiles. The combination of robust construction, hydraulic workpiece clamping and digital angle display ensures maximum precision, ease of use and process reliability in daily operation.

  • Precise mitre cuts up to 60°
  • High cutting accuracy thanks to dual-column guidance
  • Hydraulic workpiece clamping
  • Digital display for precise angle control
Quick delivery
Working area
Remaining length 75 mm
Cutting Capacities
Cutting capacity 0° (round) 440 mm
Cutting capacity 0° (square) 440 mm x 440 mm
Cutting capacity 0° (flat) (length x width) 640 mm x 440 mm
Cutting capacity ( - ) 45° (square) 390 mm x 390 mm
Cutting capacity 45° (flat) L (length x width) 440 mm x 390 mm
Cutting capacity 45° (round) L 390 mm
Cutting capacity 45° (square) R 400 mm x 400 mm
Cutting capacity 45° (round) R 440 mm
Cutting capacity 45° (flat) R (length x width) 440 mm x 400 mm
Cutting capacity 60° R (round) 250 mm
Cutting capacity 60° R (flat) (length x width) 440 mm x 250 mm
Cutting capacity ( + ) 30° (square) 440 mm x 440 mm
Cutting capacity ( + ) 30° (round) 440 mm
Cutting capacity ( + ) 30° (flat) 440 mm x 510 mm
Cutting capacity ( - ) 30° (round) 440 mm
Cutting capacity ( - ) 30° (flat) 440 mm x 510 mm
Cutting capacity ( - ) 30° (square) 440 mm x 440 mm
Blade speed 15 m/min - 120 m/min
Drive capacity
Main drive, continuous load 4 kW
Motor rating hydraulic pump 1,1 kW
Motor rating coolant pump 0,12 kW
Supply voltage 400 V
Mains frequency 50 Hz
Measures and weights
Saw blade length (max) 6300 mm
Saw blade width (max) 41 mm
Saw blade thickness 1,3 mm
Overall dimensions (length x width x height) 3,15 m x 1,85 m x 2,12 m
Weight 2050 kg

Mobile control unit SKU:

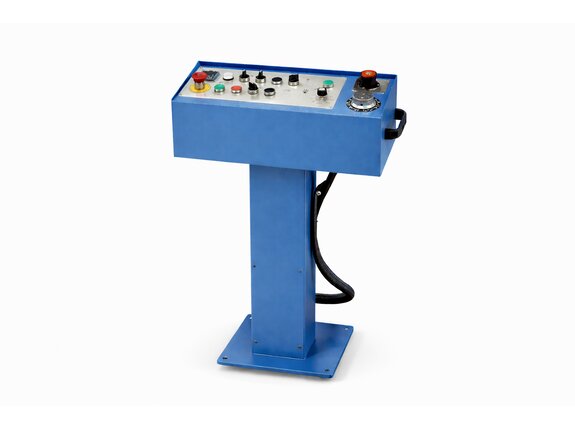

Mobile control unit
Mobile control unit SKU:
Mechanical saw blade tensioning with a hydraulic pressure gauge
Mechanical saw blade tensioning with a hydraulic pressure gauge SKU:
Precise pressure contro
Precise pressure contro SKU:
Continuously adjustable saw blade speed
Continuously adjustable saw blade speed SKU:
Automatic guide arm adjustment
Automatic guide arm adjustment SKU:

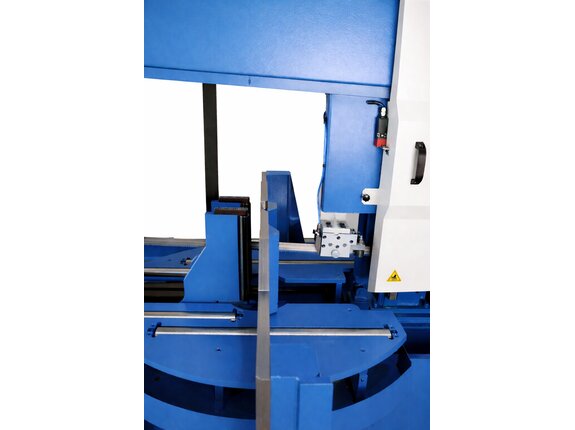

Hydraulic workpiece clamping with pressure adjustment
Hydraulic workpiece clamping with pressure adjustment SKU:
3° blade angle
3° blade angle SKU:
Optical height adjustment
Optical height adjustment SKU:
Bi-metal band saw blade
Bi-metal band saw blade SKU:
Automatic protection against blade breakage
Automatic protection against blade breakage SKU:
Cooling system
Cooling system SKU:
Chip brush
Chip brush SKU:
Operating manual
Operating manual SKU:
3-meter roller table for band saws 400–500
3-meter roller table for band saws 400–500 SKU: 253890
3-meter roller table for band saws 400–500
hydraulic blade tentioning for HB 460 L SKU: 251607
hydraulic blade tentioning for HB 460 L
Minimum quantity cooling SKU: 253719
Minimum quantity cooling
Laser pointer SKU: 253753
Laser pointer

Resources & Downloads

Optional Accessories

Explore the range of compatible accessories in stock

Bandsaw Blades Bi-metal band saw blade, 6.300×41×1.3 mm (3/4 T)
SKU : 119975 €125.00
Bandsaw Blades Bi-metal band saw blade, 6.300×41×1.3 mm (4/6 T)
SKU : 119976 €125.00
