ABS 350 C - Fully automatic band saw with motorized roller vise and one side angle cutting
The touchscreen allows for easy and convenient programming for fully automated operation

The touchscreen allows for easy and convenient programming for fully automated operation

Workpiece bundles can also be processed

Workpiece bundles can also be processed

ABS 350 C - Fully automatic band saw with motorized roller vise and one side angle cutting
The touchscreen allows for easy and convenient programming for fully automated operation
Workpiece bundles can also be processed

ABS 350 C

SKU : 152758

The ABS 350 C is a robust fully automatic band saw designed for maximum reliability. The model impresses with high-quality components and a heavy, solid machine frame. The automatic feed via driven rollers in the clamping jaws enables continuous operation, perfect for single piece and series production. The angle cutting feature increases its versatility, allowing it to cover a wider range of applications.

  • Roller material feed vise for fully automatic operation
  • Angle cutting possibility for increased versatility
  • Facile operation via touchscreen
  • Height adjustment with switch to speed up the cutting process
  • Workpiece counter to facilitate continuous production
  • Manual top vise for bundle cutting
Ready to ship
Cutting Capacities
Cutting capacity 0° (round) 350 mm
Cutting capacity 0° (flat) (length x width) 400 mm x 350 mm
Cutting capacity 0° (square) 350 mm
Cutting capacity 30° (round) 320 mm
Cutting capacity 30° (flat) (length x width) 400 mm x 350 mm
Cutting capacity 30° (square) 320 mm
Cutting capacity 45° (round) 320 mm
Cutting capacity 45° (flat) (length x width) 290 mm x 300 mm
Cutting capacity 45° (square) 290 mm
Cutting speed 20 m/min - 100 m/min
Drive capacity
Motor rating main drive 2,2 kW
Motor rating hydraulic pump 0,37 kW
Motor rating coolant pump 0,12 kW
Motor rating feed 0,25 kW
Measures and weights
Blade dimensions 4160 mm x 34 mm x 1,1 mm
Overall dimensions (length x width x height) 2,45 m x 0,92 m x 2,02 m
Weight 1050 kg

  • The ABS 350 C is a fully automated horizontal miter band saw for series production of solid materials, tubes and profiles
  • In the vise integrated rollers feed the material
  • This efficient and cost-effective solution has a proven record, is very robust and provides precise cuts
  • The saw frame features excellent stability and vibration-damping characteristics, and can be rotated manually up to 45°
  • Very rigid adjustable carbide saw blade guide ensures high vertical angle accuracy
  • Saw blade stroke and workpiece clamping are hydraulically driven
  • Saw blade feed via micro-adjustable hydraulic valve
  • Switches and controls are conveniently arranged on a stand-alone control panel
  • The touchscreen allows for easy and convenient programming for fully automated operation
  • A motor with infinitely variable speeds transmits power via a continuous-operation idler gear to the blade drive wheel
  • The correct saw blade tension can be checked at the pressure gauge display

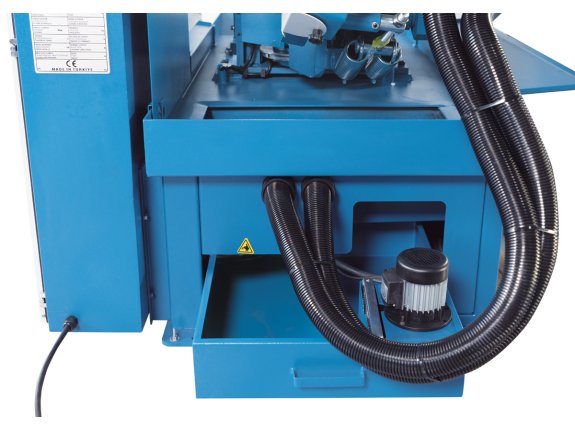

  • An automatic band breakage control, a high-performance coolant system, and an effective chip brush complement the standard equipment package
  • An additional roller conveyor and a Minimal Quantity Lubrication (MQL) system are available as options

automatic band break control
bundle vise
coolant system
hydraulic part clamping
operating tools
saw-band
chip wiper
feed roller table 1,2 m
Operator instructions

3 meter roller table for ABS 350 C
3 meter roller table for ABS 350 C SKU: 253853
3 meter roller table for ABS 350 C
SKU: 119950
SKU: 119951
SKU: 119952
Chip conveyor for ABS 350 C SKU: 253892
Chip conveyor for ABS 350 C
Hydraulic saw blade tensioning for ABS 350 C SKU: 253895
Hydraulic saw blade tensioning for ABS 350 C
Micro cooling system for ABS 380 L SKU: 253851
Micro cooling system for ABS 380 L
Laser pointer for ABS S NC / ABS H CNC SKU: 253753
Laser pointer for ABS S NC / ABS H CNC
Clamping force controlled at operator panel SKU: 253899
Clamping force controlled at operator panel
Coolant Concentrate 5 Ltr. SKU: 103184
Coolant Concentrate 5 Ltr.
  • Improved chip flow, longer tool service life and better cut profile
  • For sawing, drilling, milling, turning of steel, cast-iron, stainless steel, non-ferrous and light metals
  • Dilute with water 1:20
  • 1 canister contains 5 Ltr.

Resources & Downloads

  • ABS 350 C Brochure.pdf (0.17MB)
