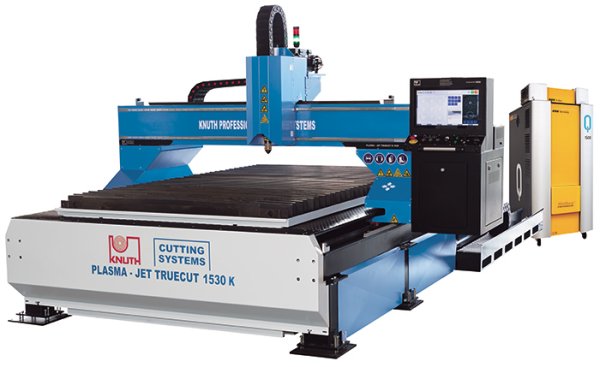

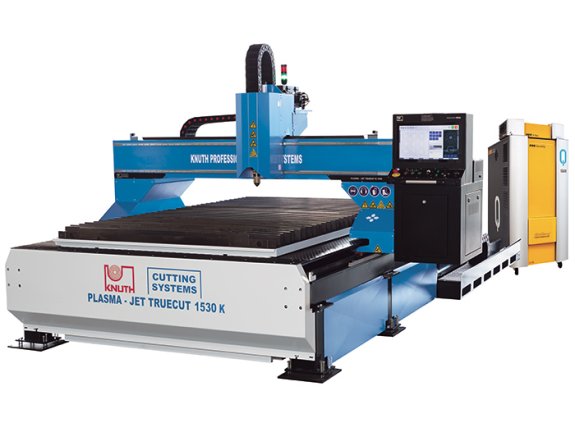

Plasma-Jet TrueCut K 1530 (Q1500 Plus)

Item No. 423545
Cutting length
3.000 mm
Cutting width
1.500 mm
Table load capacity
520 kg/m2
Rapid feed
18.000 mm/min
  • In stock
  • Inspected in Germany before delivery
  • Included: Table prepared for filter system (automatic closure control ), Panasonic Servomotors qand drivers, Automatic torch height control from Eckelmann all 9 items
Call

Free and without obligation. You will receive price and delivery time by email.

Data sheet (PDF)

Your KNUTH advisory team
Questions about accessories or installation?

Working area
Cutting width 1.500 mm
Cutting length 3.000 mm
Table height 700 mm
Table load capacity 520 kg/m2
Rapid feed 18.000 mm/min
Measures and weights
Weight 3.100 kg

The machines of the Plasma-Jet TrueCut K series are highly specialized cutting systems for the production and one-off production of complex individual parts. Equipped with the latest technology from Eckelmann and Kjellberg and high-quality components from well-known manufacturers, this series is designed for high loads in multi-shift operation. With extensive optional equipment, this series is very versatile and offers tailor-made solutions for specific customer requirements, such as multiple torches, oxy-fuel cutting heads, mitre cuts or pipe processing units.

  • Free-standing table construction for high accuracy
  • Powerful Eckelmann controller with EtherCAT technology for full cutting control
  • High productivity, designed for multi-shift operation
  • Extensive option list for customized solutions

Construction

  • Stand-alone cutter table features rigid steel construction for high load capacity
  • Stand-alone table eliminates thermal and mechanical influences on the plasma cutter system
  • Table is prepared for dust collection system, being equipped with electro-pneumatically actuated suction flaps for an efficient fume extraction of the segment where the cutting process is momentary in action

Transmission and drives

  • Dynamic AC servo drives from Panasonic on all axes with maintenance-free, zero-backlash planetary gears
  • Low-wear and low-maintenance helical gears are designed for continuous operation
  • Linear guide ways from on all axes, designed for long life and smooth motion even at high speeds. The width of linear guides on X/Y axes is 20/30 mm
  • The structure of the machine and the selection of components are designed to enable multi-shift operation

Cutting head

  • Z axis with ball screw transmission and servo-driven automatic torch height control
  • Quick-coupling for cutter head allows quick head exchanges for reduced tooling time
  • Use the existing cutting parameters stored in the control to find the optimum cut
  • Optimum bed speed even for fine contours and tight radii
  • Available with 5-axis cutter head, tube cutter, and many more options

Control

  • CNC controller from Eckelmann
  • The Eckelmann IBE software is delviered as standard.

Demonstration machine equipped as standard with the new trend-setting plasma source from Kjellberg Finsterwalde:

  • Q 1500 all-gas plasma source with upgrade to Q 1500 Plus Allgas Plasma Source
  • Maximum cutting capacity 60mm, grooving 30 mm, recommended 0.5 - 40 mm

Note: All specified cutting and piercing depths are dependent on the material as well as the cutting technology and guide system

Table prepared for filter system (automatic closure control ) Item No.
Table prepared for filter system (automatic closure control )
Table prepared for filter system (automatic closure control ) Item No.
Panasonic Servomotors qand drivers
Panasonic Servomotors qand drivers Item No.
Automatic torch height control from Eckelmann
Automatic torch height control from Eckelmann Item No.
Cutting torch with magnetic coupling and crash sensor
Cutting torch with magnetic coupling and crash sensor Item No.
Eckelmann CNC-Unit
Eckelmann CNC-Unit Item No.

Eckelmann E°EXC 880 E°CUT ECO

  • These application optimized CNC controles have extremely short cycle times, making them ideal for highy dynamic applications
  • The HMI offers a clearly structured design with greater user comfort thanks to its simnplicity, yet providing intuitive access to all functions of the machine
19” touchscreen by ELO
19” touchscreen by ELO Item No.
A-Modul from Beckhoff
A-Modul from Beckhoff Item No.
Laser pointer
Laser pointer Item No.
Eckelmann IBE Software cncCUT Nest
Eckelmann IBE Software cncCUT Nest Item No.
Consumables starter set , structural steel, Q3000
Consumables starter set , structural steel, Q3000 Item No. 254008
Consumables starter set , structural steel, Q3000
Consumables starter set , structural CrNi, Q3000 Item No. 254009
Consumables starter set , structural CrNi, Q3000
