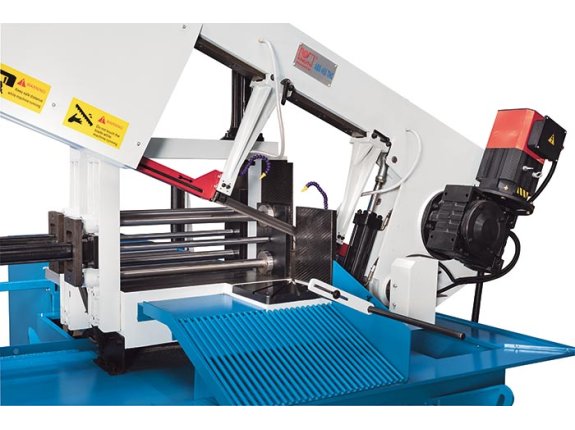

Dual hydraulic gantry vise ensures maximum stability, even during machining of bundles

Dual hydraulic gantry vise ensures maximum stability, even during machining of bundles

Infinitely variable belt speed, servo motor driven

Infinitely variable belt speed, servo motor driven

ABS 460 TNC

SKU : 152824

With the fully automatic horizontal band saws of the ABS 460 TNC series, you can make precise straight and miter cuts in heavy workpieces made of steel, cast iron and other metals. The construction of the machines is characterized by a swiveling and stable saw frame. Cutting angles of up to 60 degrees can be selected manually and positioned hydraulically. A high-torque servo motor serves as the main drive. The automatic material feed is hydraulic and the PLC control with a large touchscreen display enables simple programming of the production tasks.

  • Manual selection of miter angle with hydr. adjustment
  • PLC with graphic touchscreen control panel
  • Servo motor for main drive
  • Hydraulic workpiece clamping
Drive capacity
Motor rating main drive 5.5 kW
Motor rating hydraulic pump 1.5 kW
Motor rating coolant pump 0.045 kW
Measures and weights
Overall dimensions (length x width x height)-length 3.23 m
Overall dimensions (length x width x height)-width 2.72 m
Overall dimensions (length x width x height)-height 1.77 m
Weight 2430 kg
Blade dimensions-length 5220 mm
Blade dimensions-width 41 mm
Blade dimensions-height 1.3 mm
Cutting Capacities
Cutting capacity 0° (round) 460 mm
Cutting capacity 0° (square) 350 mm
Cutting capacity 0° (flat)-length 650 mm
Cutting capacity 0° (flat)-width 350 mm
Cutting speed 23 m/min - 95 m/min
Feed per single stroke (max.) 650 mm
Cutting capacity 30° (round) 460 mm
Cutting capacity 30° (flat)-length 580 mm
Cutting capacity 30° (flat)-width 350 mm
Cutting capacity 30° (square) 350 mm
Cutting capacity 45° (round) 460 mm
Cutting capacity 45° (flat)-length 460 mm
Cutting capacity 45° (flat)-width 350 mm
Cutting capacity 45° (square) 350 mm
Cutting capacity 60° (round) 310 mm
Cutting capacity 60° (square) 310 mm
Cutting capacity 60° (flat)-length 310 mm
Cutting capacity 60° (flat)-width 350 mm
Working height 850 mm

  • The saw frame can be moved hydraulically by the user for various cutting angles ( 0°,30°,45° and 60°)
  • Robust touch screen control panel for easy programming of the cutting task
  • Automatic workpiece feed features a precision linear measuring system
  • Hydraulic saw frame feed, infinitely variable
  • Servo-motor drive provides infinitely variable saw blade cutting speeds and high torque across the entire speed range
  • Band speed indicator on the display
  • Precise and stable saw band guides ensure high angular accuracy

operating tools
coolant system
touch screen monitor
operator manual
hydraulic vice
NC control
chip brush
bimetallic band saw blade
hydraulic feed vise
material support base with roller

Intuitive operation and efficient control of all parameters

  • Reliable SMART PLC with ruggest touchscreen input panel
  • In Auto Mode, feed distance and number of cuts can be programmed within the respective configuration
  • In Manual Mode, all machine functions can be selected and adjusted via touchscreen
  • Angle adjustments can be made manually
  • Infinitely adjustable saw blade speed with settings shown on the display
  • Individual lengths and miter angles, and the number of required steps can be entered for each cut
  • All machine parameters can be checked by the operator via user-friendly menus
