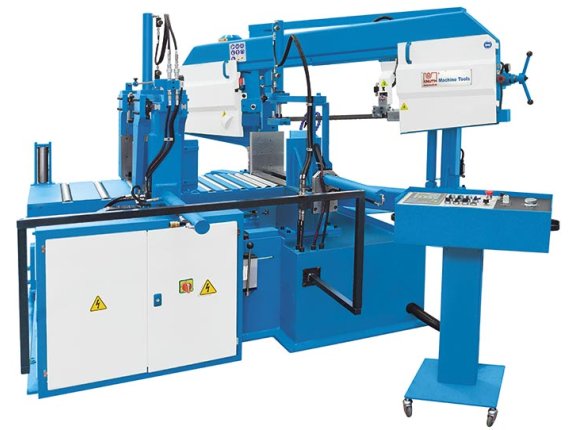

ABS 325 H NC - Dual column design, Siemens NC control and hydraulic bundle vise for high precision series production

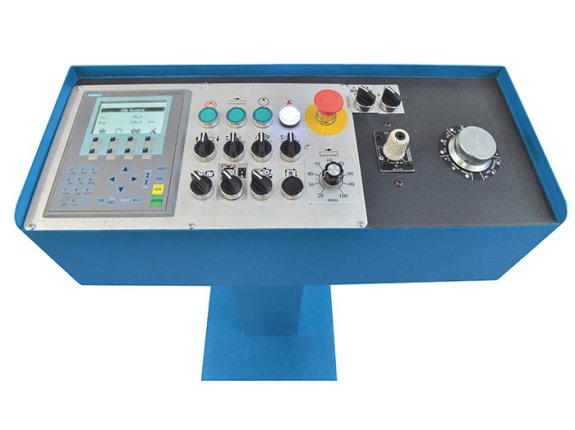

All switches and controls are conveniently arranged on a stand-alone control panel

All switches and controls are conveniently arranged on a stand-alone control panel

ABS 325 H NC - Dual column design, Siemens NC control and hydraulic bundle vise for high precision series production
All switches and controls are conveniently arranged on a stand-alone control panel
HOT DEAL

This machine is part of our seasonal sale. Ask our representative for the discounted price.

ABS 325 H NC

SKU : 423502
Custom Model

The ABS-H NC series is characterized by a swiveling and stable dual column frame. In the fully automatic mode, manual cutting angles of up to 45 degrees can be set, semi-automatically up to 60 degrees are possible. The saw blade speed is infinitely variable. Workpiece clamping and the automatic material feed are controlled hydraulically. The Siemens control unit KP 400 S offers simple programming with a large memory capacity. Components from well-known suppliers and first-class workmanship guarantee high availability.

  • Double column design with linear guide
  • Miter band saw with hydraulic workpiece clamping
  • Siemens Simatic KP 400
  • High-precision hydraulic workpiece feed
  • Stroke height adjustment with optical sensor
  • Hydraulic clamping for bundle cutting
Quick delivery
Working area
Minimum cut length 25 mm
Remaining length 295 mm
Cutting Capacities
Feed per single stroke (max.) 500 mm
Cutting speed 20 m/min - 100 m/min
Cutting capacity 0° (round) 325 mm
Cutting capacity 0° (flat) (length x width) 400 mm x 315 mm
Cutting capacity 0° (square) 315 mm
Cutting capacity 30° (round) 325 mm
Cutting capacity 30° (flat) (length x width) 380 mm x 315 mm
Cutting capacity 30° (square) 315 mm
Cutting capacity 45° (round) 300 mm
Cutting capacity 45° (flat) (length x width) 300 mm x 315 mm
Cutting capacity 45° (square) 300 mm
Max. feed length (multiple strokes) 6000 mm
Accuracies
Positioning accuracy (multiple strokes) 0,3 mm - 0,5 mm
Cutting capacity in semi-automatic mode
Cutting capacity 60° (round) 200 mm
Cutting capacity 60° (flat) (length x width) 200 mm x 315 mm
Cutting capacity 60° (square) 200 mm
Drive capacity
Motor rating main drive 2,2 kW
Motor rating hydraulic pump 1,5 kW
Motor rating coolant pump 0,12 kW
Measures and weights
Blade dimensions 4380 mm x 34 mm x 1,1 mm
Overall dimensions (length x width x height) 2,13 m x 2,15 m x 1,65 m
Weight 1860 kg

  • The ABS H NC is a fully automated horizontal band saw series with parallel guiding system, which is ideally suited for series productions with miter cuts in solid materials, tubes, and profiles
  • The torsionally rigid guideway frame provides excellent stability and vibration-damping characteristics
  • The combination of linear guides and box ways result in low maintenance, long tool life and extreme ruggedness under heavy production conditions
  • The fully automated mode allows miter cut angles up to 45°, and the semi-automatic mode up to 60°
  • A slight 3° inclination of the saw frame on the cutting axis increases cutting capacity and saw blade life
  • Rigid high-precision carbide saw blade guides ensure high vertical angular accuracy
  • The reliable hydraulic unit provides the drive power for the automatic workpiece feed, and also the controlled clamping force for workpiece clamping
  • Hydraulically controlled saw frame micro-feed
  • The reliable Siemens Simatic KP 400 PLC allows for easy and convenient programming for a fully automated operation
  • Unnecessary downtime is reduced by an optically controlled change-over from rapid feed to work feed
  • A motor with infinitely variable speeds transmits power via a continuous-operation idler gear to the machine drive wheel
  • The correct saw blade tension can be verified directly at the pressure gauge display
  • An automatic band breakage control, a high-performance coolant system, and a chip brush complement the standard equipment package

This machine is equipped with helpful accessories for cutting pipes:

  • Hydraulic bundle clamping
  • Hydraulic saw blade tensioning
  • Roller Conveyor 3m
  • Minimum quantity cooling
  • Laser pointer
  • Clamping force controlled at operator panel

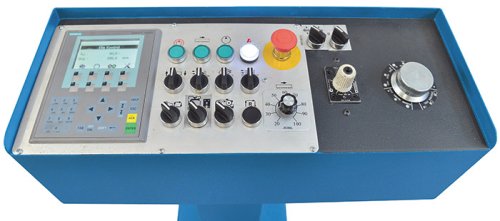

Siemens Simatic KP 400 SPS-control SKU:

Siemens Simatic KP400

  • Number of programs: 1
  • Working steps in the program: 10
Siemens Simatic KP 400 SPS-control
Siemens Simatic KP 400 SPS-control SKU:

Siemens Simatic KP400

  • Number of programs: 1
  • Working steps in the program: 10
Automatic workpiece feed (hydraulic)
Automatic workpiece feed (hydraulic) SKU:
Hydraulic part clamping
Hydraulic part clamping SKU:
hydraulic cutting angle clamping
hydraulic cutting angle clamping SKU:
Hydraulic top clamping
Hydraulic top clamping SKU:
Hydraulic sawblade tensioning
Hydraulic sawblade tensioning SKU:
Digital angle display
Digital angle display SKU:
Optical height adjustment
Optical height adjustment SKU:
Saw-band
Saw-band SKU:
Saw blade cleaner brush
Saw blade cleaner brush SKU:
Roller table (3 meter)
Roller table (3 meter) SKU:
Coolant system
Coolant system SKU:
Operating tools
Operating tools SKU:
Operator manual
Operator manual SKU:

Siemens Simatic KP 400 SPS-control

Siemens Simatic KP400

  • Number of programs: 1
  • Working steps in the program: 10
3 meter roller table for ABS S 325 NC / ABS H 325 NC
3 meter roller table for ABS S 325 NC / ABS H 325 NC SKU: 253752
3 meter roller table for ABS S 325 NC / ABS H 325 NC

Resources & Downloads

Optional Accessories

Explore the range of compatible accessories in stock

Bandsaw Blades Bi-metal band saw blade, 4380x34x1.1 mm, 3/4 teeth
SKU : 119804 €57.00
Bandsaw Blades Bi-Metallic Bandsaw Blade, 4380x34x1.1mm, 4/6 Z
SKU : 119805 €57.00
Bandsaw Blades Bi-metal band saw blade, 4380x34x1.1 mm, 5/8 teeth
SKU : 119806 €57.00
Oil, Coolants and Lubricants Coolant Concentrate 5 Ltr.
SKU : 103184 €130.00
