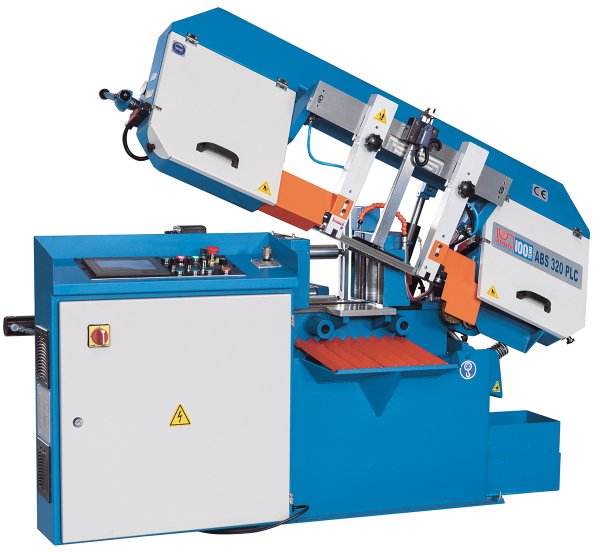

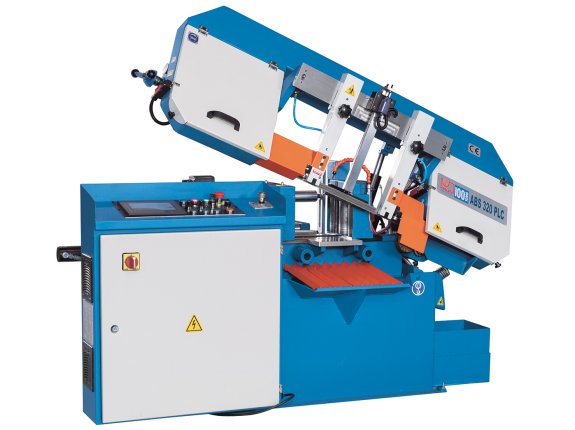

ABS 320 PLC - Fully automatic band saw with motorized material feed

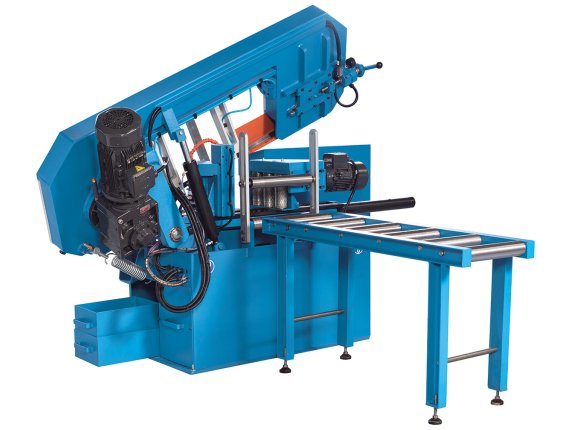

A motor with infinitely variable speeds transmits power via a continuous-operation idler gear to the machine drive wheel

A motor with infinitely variable speeds transmits power via a continuous-operation idler gear to the machine drive wheel

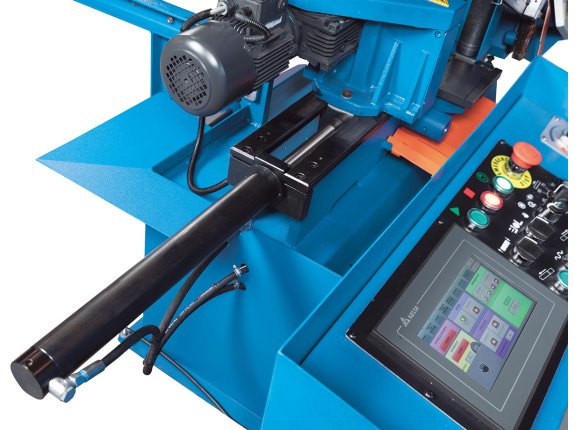

Hydraulic part clamping included in standard equipment

Hydraulic part clamping included in standard equipment

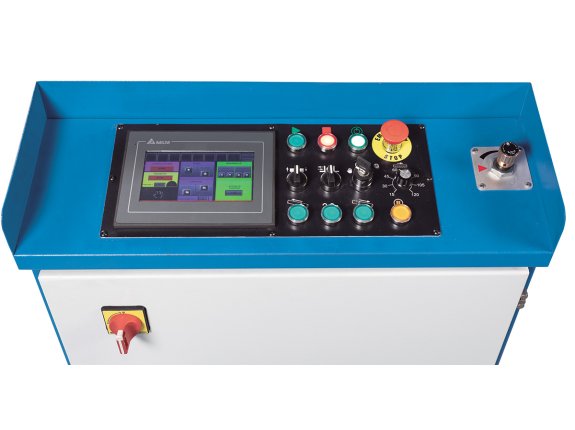

PLC control with touchscreen

PLC control with touchscreen

ABS 320 PLC - Fully automatic band saw with motorized material feed
A motor with infinitely variable speeds transmits power via a continuous-operation idler gear to the machine drive wheel
Hydraulic part clamping included in standard equipment
PLC control with touchscreen

AUTO STRAIGHT BANDSAW

ABS 320 PLC

SKU : 152759

The ABS 320 PLC is a robust fully automated band saw designed for maximum reliability. The automatic feed is driven via rolls in the clamping jaws. Operation is simple, and the touchscreen guides the operator through the machine setup.

  • Touchscreen for automatic feed
  • Hydraulic workpiece clamping
  • Bundling vise
  • Infinitely variable cutting speeds
Cutting Capacities
Cutting capacity 0° (round) 320 mm
Cutting capacity 0° (square) 320 mm
Cutting capacity 0° (flat) (length x width) 320 mm x 320 mm
Cutting speed 15 m/min - 120 m/min
Working height 640 mm
Drive capacity
Motor rating main drive 2,2 kW
Motor rating hydraulic pump 0,37 kW
Motor rating coolant pump 0,12 kW
Motor rating feed 0,25 kW
Measures and weights
Blade dimensions 3660 mm x 27 mm x 0,9 mm
Overall dimensions (length x width x height) 1,9 m x 0,85 m x 1,3 m
Weight 770 kg

  • The ABS 320 PLC is a fully automated horizontal band saw, which is ideally suited for single cut and series production of solid materials, tubes, and profiles
  • The automatic workpiece feed is very precise and driven via vise-integrated motorized rollers
  • The robust and user-friendly touchscreen is used to enter the desired cut lengths, which then are produced in a fully automatic operation
  • The torsionally rigid saw frame provides excellent stability and vibration-damping characteristics

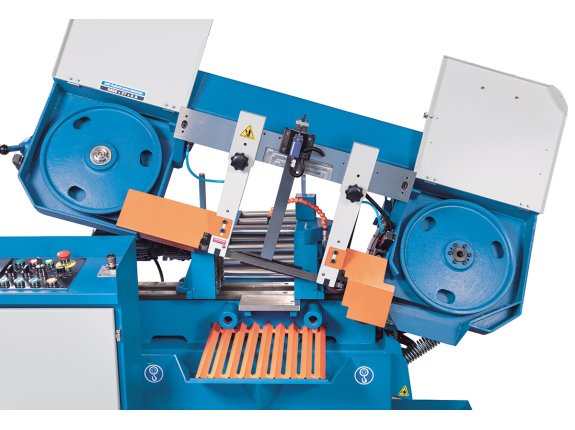

  • Large drive wheels and idlers extend the saw blade life
  • The saw blade tension can be precisely adjusted via a pressure gauge that is integrated in the clamping mechanism

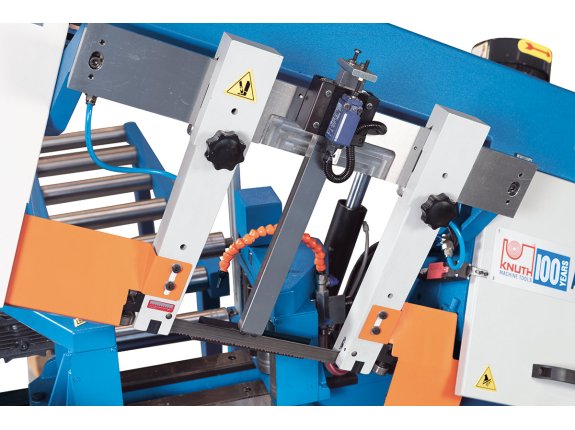

  • Rigid high-precision carbide saw blade guides ensure excellent vertical angular accuracy of the cut
  • The reliable hydraulic unit provides the drive power for saw frame stroke and workpiece clamping
  • Saw blade feed via micro-adjustable hydraulic valve

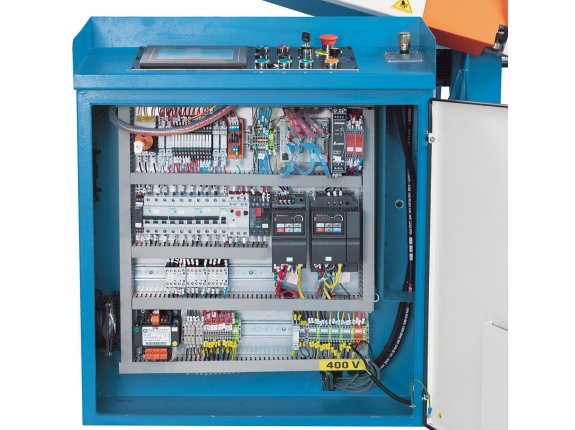

  • All switches and controls are arranged centrally on an operator panel at the control cabinet
  • Unnecessary down-times are reduced by an optically controlled change-over from rapid feed to work feed
  • The extensive standard equipment package includes an integrated band breakage control, a high-performance coolant system, and a bundling vise
  • The extensive optional accessories includes everything from motor-driven roller conveyors to Minimal Quantity Lubrication (MQL)

SPS-control with touch-screen SKU:
SPS-control with touch-screen
SPS-control with touch-screen SKU:
Hydraulic part clamping
Hydraulic part clamping SKU:
Bundle vise
Bundle vise SKU:

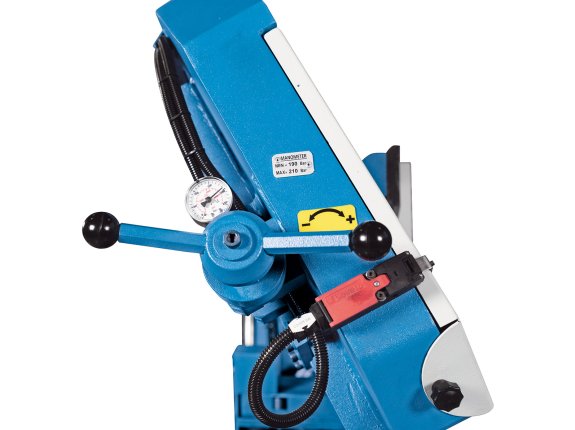

Mechanical saw blade tensioning with hydraulic pressure gauge
Mechanical saw blade tensioning with hydraulic pressure gauge SKU:
Optical height adjustment
Optical height adjustment SKU:
Automatic band break control
Automatic band break control SKU:
Feed roller table 1,2 m
Feed roller table 1,2 m SKU:
Coolant system
Coolant system SKU:
Saw-band
Saw-band SKU:
Saw blade cleaner brush
Saw blade cleaner brush SKU:
Operating tools
Operating tools SKU:
Operator instructions
Operator instructions SKU:
3 meter roller table
3 meter roller table SKU: 251888
3 meter roller table
chip conveyor SKU: 251889
chip conveyor
Hydraulic saw blade tensioning SKU: 253894
Hydraulic saw blade tensioning
Micro spray cooling system SKU: 253851
Micro spray cooling system
Laser pointer SKU: 253753
Laser pointer
