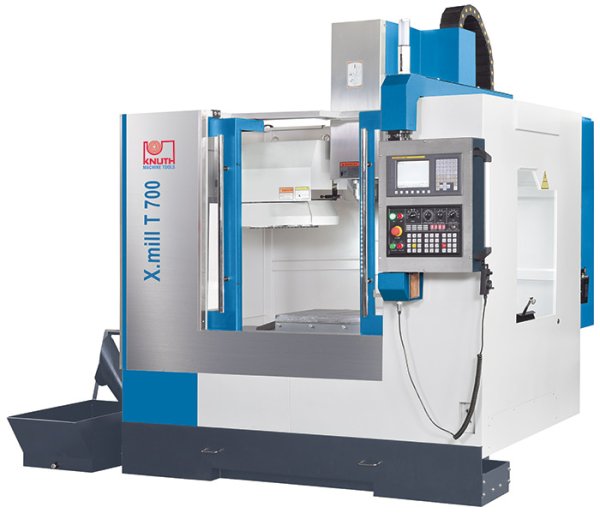

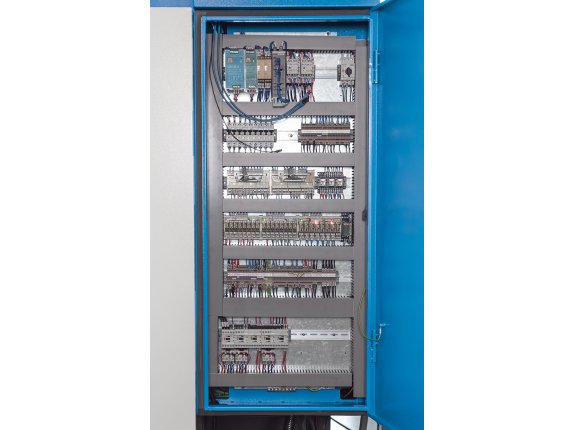

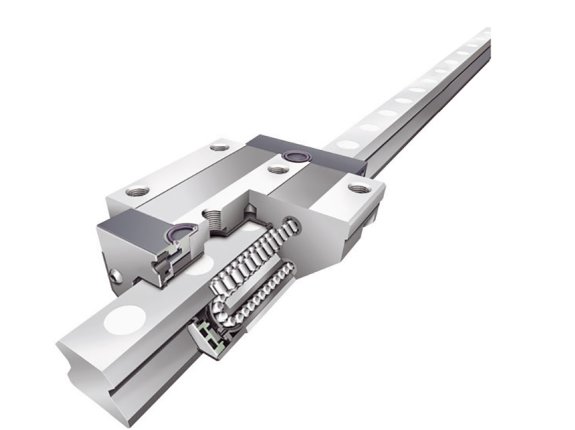

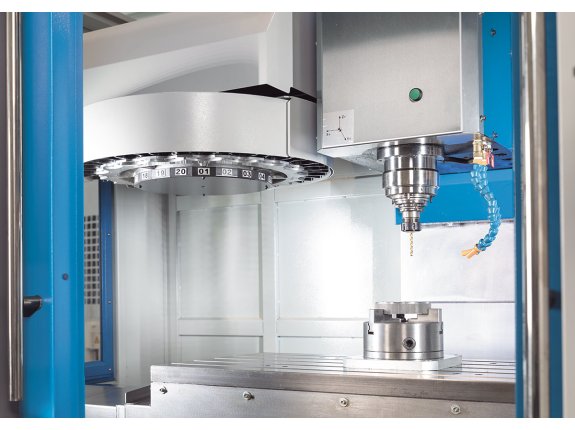

C-FRAME VERTICAL CNC CENTER

X.mill T 700 SI

With the 3D workpiece simulation, SINUMERIK offers you optimum help and security when programming and calculating quotations.

• Safety: 3-level view and solid model of the finished part, with zoom on details and free rotation of the viewing angle
• Support: - Simulation speed adjustable via override - Single block operation and start/stop possible at any time
• Control: Automatic calculation of the processing time

Contour areas that cannot be machined with large-diameter milling cutters are automatically recognised by the cycle for contour pockets and studs. These areas can be specifically reworked with a suitable smaller tool without having to machine the entire pocket or tenon again. If you want to mill several pockets and avoid unnecessary tool changes, it makes sense to clear out all pockets first and then remove the remaining material. In this case, you must specify the tool that was used to clear the pockets in the "Reference tool TR" parameter when clearing residual material.

• Shorter machining times by using a large tool for the main part of the machining and a smaller tool specifically for the remaining residual material
• Avoidance of empty cuts with extremely simple programming at the same time

While the workpiece is being machined, the tool paths can be drawn on the control unit screen in top view, 3-sided view and 3D view. The display and views of the workpiece correspond to the graphical simulation.

• Machining can also be monitored in a cluttered machine room

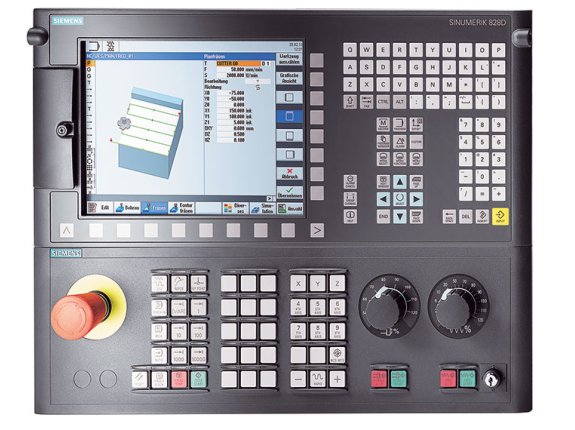

For the two variants Sinumerik 828D and Sinumerik 828D Advanced, Siemens is also offering a capacitive touch display with a 15.6-inch screen diagonal for the first time with the Panel Processing Unit (PPU) 290. The touch display can be operated using single-touch gestures. According to Siemens, the full QWERTY keyboard integrated into the housing below the screen enables fast input, for example for programming CNC tasks. The wider 16:9 screen with a resolution of 1366 x 678 pixels offers more space for detailed displays. This makes the 15.6-inch display particularly suitable for displaying two channels, for example during turning and grinding, on the Sinumerik 828D Advanced.

The ultra-compact OMP40-2 (40 mm diameter) touch-trigger probe with optical transmission provides a flexible probing solution. The OMP40 is suitable for small to medium machining centres.

• Testing and setting up workpieces on machining centres
• Proven kinematic design
• Exceptional resistance to light interference with modulated transmission
• 360° transmission envelope
• 1.00 µm 2σ repeatability

The ultra-compact OMP40-2 (40 mm diameter) touch-trigger probe with optical transmission provides a flexible probing solution. The OMP40 is suitable for small to medium machining centres. The OTS 3D touch-trigger tool setter with optical signal transmission can be used for on a wide range of tools on small to medium machining centres. It is compatible with Renishaw optical modulated receivers and can be used as part of a twin probe system. The robust and cable-free design allows freedom of table movement, ideal for twin pallet or rotary table machines.

• Testing and setting up workpieces on machining centres (OMP)
• Tool measurement and breakage detection on machining centres (OTS)
• Proven kinematic design
• Exceptional resistance to light interference with modulated transmission
• 360° transmission envelope
• Directionally adjustable optical infrared module (OTS)
• Cable-free for unrestricted machine movement and easy installation
• 1.00 µm 2σ repeatability

The OTS 3D touch-trigger tool setter with optical signal transmission can be used for on a wide range of tools on small to medium machining centres. It is compatible with Renishaw optical modulated receivers and can be used as part of a twin probe system. The robust and cable-free design allows freedom of table movement, ideal for twin pallet or rotary table machines.

• Tool measurement and breakage detection on machining centres
• Proven kinematic design
• Exceptional resistance to light interference with modulated transmission
• Direction-adjustable infrared optical module
• Cable-free for unrestricted machine movement and ease of installation
• 1.00 µm 2σ repeatability
