X.mill T 1000 FA - Compact all-in-one solution for complex solutions and powerful 3-axis machining

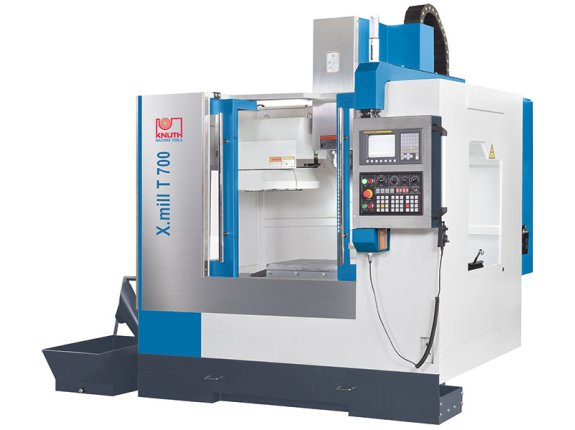

Fig. X.mill T 700

Solid machine table with 5 slots

Solid machine table with 5 slots

Cast iron body with large span

Cast iron body with large span

Delta column design for excellent cutting stability

Delta column design for excellent cutting stability

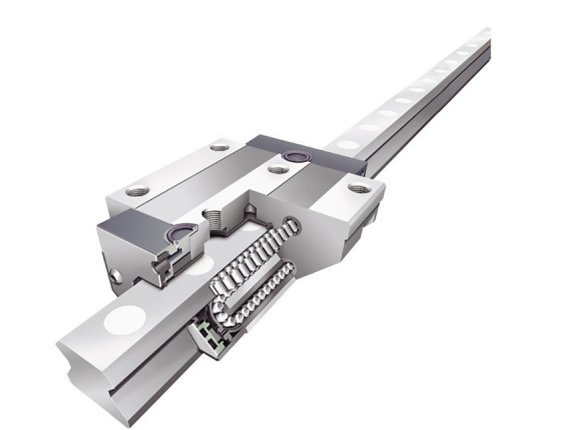

High quality roller guides

High quality roller guides

Control Fanuc Oi-MF

Control Fanuc Oi-MF

X.mill T 1000 FA - Compact all-in-one solution for complex solutions and powerful 3-axis machining
Solid machine table with 5 slots
Cast iron body with large span
Delta column design for excellent cutting stability
High quality roller guides
Control Fanuc Oi-MF

X.mill T 1000 FA

SKU : 181438

The X.mill T series is the newest generation of our vertical machining centers, with modern high-performance compact CNC controls. Whether equipped with Siemens or Fanuc controls, this series offers an excellent price-performance ratio. Wide range of accessories for easy adaptation to meet your specific requirements. Using state-of-the-art FEM Analysis Software, we were able to achieve the highest machine frame rigidity in this machine class

  • Optimized frame design using FEM analysis
  • Extra wide Y-shaped column for increased rigidity
  • Ø32 mm C3 preloaded ball screws for high accuracy
  • Available with Siemens or Fanuc control
  • High customization and automation possibilities
Working area
Table dimensions 1100 mm x 550 mm
Table load capacity 800 kg
Spindle nose-to-table surface distance 150 mm - 700 mm
Spindle center-to-stand distance 520 mm
Number of T-slots 5 positions
T-slot (width x spacing) 18 mm x 100 mm
Travels
Travel X-axis 1000 mm
Travel Y-axis 550 mm
Travel Z-axis 550 mm
Headstock
Spindle speed 10000 1/min
Spindle mount SK 40 ISO 7388-1 (DIN 69871)
Spindle torque (max.) 63,7 Nm
Rapid feed
Rapid feed X-, Y-, Z- axis 36000 mm/min
Feed
Work feed X / Y / Z axis 10 m/min x 10 m/min x 10 m/min
Tooling
Number of tool stations 20 positions
Tool Ø 100 (130) mm
Tool weight max. 8 kg
Tool-change time tool/tool 10 sec
Accuracies
Positioning accuracies ± 0,005 mm
Repeatabilities ± 0,003 mm
Drive capacity
Motor rating main drive 11 kW
Motor rating X-axis 1,8 kW
Motor rating Y-axis 1,8 kW
Motor rating Z-axis 3 kW
Total power consumption 15 kVA - 20 kVA
Control
Control Fanuc
Measures and weights
Overall dimensions (length x width x height) 2,62 m x 2,2 m x 2,7 m
Weight 4600 kg

  • The new X.mill series is ideally suited for streamlined and cost-effective series production
  • The entire series is optionally available with modern compact CNC controls from Siemens or Fanuc and thus offers the right control solution for many companies.

Machine Design

  • The X.mill series machine frame was developed using the most advanced FEM analysis software on the market
  • The thorough analysis of the entire machine bed construction and wide column base resulted in a design that is optimized for all load conditions
  • All axes move on premium, fully enclosed linear guideways and precision ball screws and are driven by dynamic servo-motors

Spindle

  • The main spindle is supported by multiple bearings to ensure excellent absorption and dissipation of forces during machining
  • The advanced design of our spindles ensure low heat accumulation under load
  • Large pre-loaded bearings ensure radial stability during heavy-duty machining operations
  • High-temperature lubricants ensure optimum lubrication at any operating temperature and a long tool life

Tool Changer

  • The robust armless 20-station tool changer brings flexibility to everyday production operations
  • An optional 30-station tool changer with dual-arm gripper is also available

Handling

  • The totally enclosed workspace features a large door and side doors for easy access, safety and cleanliness
  • An electronic hand-wheel simplifies machine set-up
  • Electrical equipment is divided into separate control cabinets for high and low voltage systems, which results in a significant reduction of heat accumulation and noise
  • The automatic central lubrication system ensures proper lubrication of all lube points

Fanuc Oi-MF (5) control SKU:

Fanuc 0i MF control

  • Easy programming and operation, short learning curve
  • User-friendly graphics display for visual verification of parts programs
  • Use of existing programs without reprogramming requirements
  • High-speed machining and standard nano-interpolation
  • Fixed cycles and custom macro B for simplified parts programming
  • State-of-the-Art functionality, like jerk limitation, nano smoothing, and Al Contour Control ll - compatibile with previous version series 0 and series 0i models A, B, C and D
  • Series 0i Model F are the successor models of the Series 0 and Series 0i, which are the most popular CNC controls worldwide with over 700,000 installations.
  • With up to 4 simultaneously controlled axes, the CNC Series 0i provides the best controls for highly demanding machine tools.
Fanuc Oi-MF (5) control
Fanuc Oi-MF (5) control SKU:

Fanuc 0i MF control

  • Easy programming and operation, short learning curve
  • User-friendly graphics display for visual verification of parts programs
  • Use of existing programs without reprogramming requirements
  • High-speed machining and standard nano-interpolation
  • Fixed cycles and custom macro B for simplified parts programming
  • State-of-the-Art functionality, like jerk limitation, nano smoothing, and Al Contour Control ll - compatibile with previous version series 0 and series 0i models A, B, C and D
  • Series 0i Model F are the successor models of the Series 0 and Series 0i, which are the most popular CNC controls worldwide with over 700,000 installations.
  • With up to 4 simultaneously controlled axes, the CNC Series 0i provides the best controls for highly demanding machine tools.
Shield-type 20-station tool changer
Shield-type 20-station tool changer SKU:
Screw-type chip conveyor with bucket
Screw-type chip conveyor with bucket SKU:
Ridgid tapping
Ridgid tapping SKU:
Autom. power off
Autom. power off SKU:
Manual coolant spray gun
Manual coolant spray gun SKU:
Coolant system
Coolant system SKU:
Spindle air system
Spindle air system SKU:
Heat Exchanger for electric control cabinet
Heat Exchanger for electric control cabinet SKU:
Fully enclosed work space (without top cover)
Fully enclosed work space (without top cover) SKU:
Electronic hand-wheel
Electronic hand-wheel SKU:
USB port
USB port SKU:
Automatic central lubrication
Automatic central lubrication SKU:
Work lamp
Work lamp SKU:
3-color signal lamp
3-color signal lamp SKU:
Operating tools
Operating tools SKU:
Leveling bolts and blocks
Leveling bolts and blocks SKU:
Preparation for Renishaw TS 27 R
Preparation for Renishaw TS 27 R SKU:

Fanuc Oi-MF (5) control

Fanuc 0i MF control

  • Easy programming and operation, short learning curve
  • User-friendly graphics display for visual verification of parts programs
  • Use of existing programs without reprogramming requirements
  • High-speed machining and standard nano-interpolation
  • Fixed cycles and custom macro B for simplified parts programming
  • State-of-the-Art functionality, like jerk limitation, nano smoothing, and Al Contour Control ll - compatibile with previous version series 0 and series 0i models A, B, C and D
  • Series 0i Model F are the successor models of the Series 0 and Series 0i, which are the most popular CNC controls worldwide with over 700,000 installations.
  • With up to 4 simultaneously controlled axes, the CNC Series 0i provides the best controls for highly demanding machine tools.
Top cover for X.Mill/Vector 650-1000
Top cover for X.Mill/Vector 650-1000 SKU: 252819
Top cover for X.Mill/Vector 650-1000
Renishaw OMP 40 Workpiece Measuring SKU: 252820
Renishaw OMP 40 Workpiece Measuring
Upg from Fanuc 0i-MF (package 5) to (package 1) SKU: 252888
Upg from Fanuc 0i-MF (package 5) to (package 1)
Manual guide 0i SKU: 252889
Manual guide 0i
Connection for 4th axis (wiring only and axis chart) SKU: 253019
Connection for 4th axis (wiring only and axis chart)
CTS 30 bar system with dual filter system SKU: 253369
CTS 30 bar system with dual filter system
Disc Type Oil Skimmer SKU: 253383
Disc Type Oil Skimmer
Chip Wash System SKU: 253384
Chip Wash System
Renishaw Tool Setter TS27R SKU: 253386
Renishaw Tool Setter TS27R
Arm Type BT-40/SK 40 24-Tool-Changer SKU: 253436
Arm Type BT-40/SK 40 24-Tool-Changer
Spindle Oil Cooler SKU: 253440
Spindle Oil Cooler
Renishaw OTS wireless tool setter (OTS) SKU: 253598
Renishaw OTS wireless tool setter (OTS)
Spindle speed upgrade to 12.000 rpm direct drive no CTS SKU: 253610
Spindle speed upgrade to 12.000 rpm direct drive no CTS
Arm type ATC upgrade from 24 to 30 tools (BT40) for X.Mill T SKU: 253611
Arm type ATC upgrade from 24 to 30 tools (BT40) for X.Mill T
preparation for Renishaw OMP40 SKU: 253613
preparation for Renishaw OMP40
manual tailstock ST-125T for rotary table for X.mill SKU: 253617
manual tailstock ST-125T for rotary table for X.mill
manual tailstock ST-170T for rotary table for X.mill SKU: 253618
manual tailstock ST-170T for rotary table for X.mill
manual tailstock ST-255T for rotary table for X.mill SKU: 253620
manual tailstock ST-255T for rotary table for X.mill
manual 5'' chuck for rotary table for X.mill SKU: 253621
manual 5'' chuck for rotary table for X.mill
manual 6'' chuck for rotary table for X.mill SKU: 253622
manual 6'' chuck for rotary table for X.mill
manual 9'' chuck for rotary table for X.mill SKU: 253624
manual 9'' chuck for rotary table for X.mill
Z axis travel upgrade from 550 to 800 mm for X.mill SKU: 253625
Z axis travel upgrade from 550 to 800 mm for X.mill
Z axis travel upgrade from 550 to 800 mm for X.mill SKU: 253626
Z axis travel upgrade from 550 to 800 mm for X.mill
CTS 20 bar system with dual filter system SKU: 253627
CTS 20 bar system with dual filter system
Manual guide i (requires Fanuc Package 1) SKU: 253631
Manual guide i (requires Fanuc Package 1)
125 mm diam. 4th axis (4th axis, servo motor, driver, air brakes)(Fa) SKU: 253639
125 mm diam. 4th axis (4th axis, servo motor, driver, air brakes)(Fa)
170 mm diam. 4th axis (4th axis, servo motor, driver, air brakes)(Fa) SKU: 253640
170 mm diam. 4th axis (4th axis, servo motor, driver, air brakes)(Fa)
210 mm diam. 4th axis (4th axis, servo motor, driver, air brakes)(Fa) SKU: 253641
210 mm diam. 4th axis (4th axis, servo motor, driver, air brakes)(Fa)
250 mm diam. 4th axis (4th axis, servo motor, driver, air brakes)(Fa) SKU: 253642
250 mm diam. 4th axis (4th axis, servo motor, driver, air brakes)(Fa)
Renishaw OMP 60 workpiece measuring system (BT40) SKU: 253681
Renishaw OMP 60 workpiece measuring system (BT40)
Spindle speed upgrade to 12000 rpm, belt-type SKU: 253781
Spindle speed upgrade to 12000 rpm, belt-type
Air through spindle for Vector SKU: 253782
Air through spindle for Vector
Upgrade from worm-gear to chain-type chip conveyor for X.Mill T 1000 SKU: 253837
Upgrade from worm-gear to chain-type chip conveyor for X.Mill T 1000
Upgrade Spindle Taper from SK40 to BBT 40 SKU: 253951
Upgrade Spindle Taper from SK40 to BBT 40

Resources & Downloads

Optional Accessories

Explore the range of compatible accessories in stock

Drill Chucks Keyless Drill Chuck 1-13 mm B 16
SKU : 104765
Drill Chucks Keyless Drill Chuck 3-16 mm B 18
SKU : 104770
Vises HNCS 160V hydraulic machine vise
SKU : 104934
Vises Dial for HNCS 160V
SKU : 104935
Clamping Kits De Luxe Clamping Tool Set 18/M16
SKU : 105305
Clamping Kits Swivel Hold-Down Clamp Set 125/M16
SKU : 105800
Collets & Chucks ER 32 Collet Set 6 pcs.
SKU : 106052
Collets & Chucks ER 40 Collet Set 15 pcs.
SKU : 106075
Chip Removal Power Worker Metal Cutter
SKU : 123040
Vises HS 150 Hydraulic machine vise
SKU : 125028
Vises Corrugated Parallel Parts 9-23mm
SKU : 128960
Vises Corrugated Parallels 25-39mm
SKU : 128961
Machinetool accessories: combination arbors: combination arbor DIN 69871, SK 40 Ø 13 Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 13
SKU : 192926
Machinetool accessories: combination arbors: combination arbor DIN 69871, SK 40 Ø 16 Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 16
SKU : 192927
Machinetool accessories: combination arbors: combination arbor DIN 69871, SK 40 Ø 22 Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 22
SKU : 192928
Machinetool accessories: combination arbors: combination arbor DIN 69871, SK 40 Ø 27 Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 27
SKU : 192929
Machinetool accessories: combination arbors: combination arbor DIN 69871, SK 40 Ø 32 Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 32
SKU : 192930
Machinetool accessories: combination arbors: combination arbor DIN 69871, SK 40 Ø 40 Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 40
SKU : 192931
Machinetool accessories: Weldon chucks: Weldon DIN 69871, SK 40, Ø 6 x 50 Milling Arbors & Milling Chucks Weldon DIN 69871, SK 40, Ø 6 x 50
SKU : 192972
Machinetool accessories: Weldon chucks: Weldon DIN 69871, SK 40, Ø 8 x 50 Milling Arbors & Milling Chucks Weldon DIN 69871, SK 40, Ø 8 x 50
SKU : 192975
Machinetool accessories: Weldon chucks: Weldon DIN 69871, SK 40, Ø 10 x 50 Milling Arbors & Milling Chucks Weldon DIN 69871, SK 40, Ø 10 x 50
SKU : 192978
Machinetool accessories: Weldon chucks: Weldon DIN 69871, SK 40, Ø 12 x 50 Milling Arbors & Milling Chucks Weldon DIN 69871, SK 40, Ø 12 x 50
SKU : 192981
Machinetool accessories: Weldon chucks: Weldon DIN 69871, SK 40, Ø 14 x 50 Milling Arbors & Milling Chucks Weldon DIN 69871, SK 40, Ø 14 x 50
SKU : 192984
Machinetool accessories: Weldon chucks: Weldon DIN 69871, SK 40, Ø 16 x 63 Milling Arbors & Milling Chucks Weldon DIN 69871, SK 40, Ø 16 x 63
SKU : 192987
Machinetool accessories: Weldon chucks: Weldon DIN 69871, SK 40, Ø 18 x 63 Milling Arbors & Milling Chucks Weldon DIN 69871, SK 40, Ø 18 x 63
SKU : 192990
Machinetool accessories: Weldon chucks: Weldon DIN 69871, SK 40, Ø 20 x 63 Milling Arbors & Milling Chucks Weldon DIN 69871, SK 40, Ø 20 x 63
SKU : 192993
Machinetool accessories: Weldon chucks: Weldon DIN 69871, SK 40, Ø 22 x 63 Milling Arbors & Milling Chucks Weldon DIN 69871, SK 40, Ø 22 x 63
SKU : 192996
Machinetool accessories: Weldon chucks: Weldon DIN 69871, SK 40, Ø 25 x 100 Milling Arbors & Milling Chucks Weldon DIN 69871, SK 40, Ø 25 x 100
SKU : 192997
Machinetool accessories: Weldon chucks: Weldon DIN 69871, SK 40, Ø 32 x 100 Milling Arbors & Milling Chucks Weldon DIN 69871, SK 40, Ø 32 x 100
SKU : 192999
Machinetool accessories: Weldon chucks: Weldon DIN 69871, SK 40, Ø 40 x 115 Milling Arbors & Milling Chucks Weldon DIN 69871, SK 40, Ø 40 x 115
SKU : 193001
Machinetool accessories: drill chuck arbors: drill chuck arbor DIN 69871, SK 40, B16 Drill Chucks drill chuck arbor DIN 69871, SK 40, B16
SKU : 193033
Machinetool accessories: drill chuck arbors: drill chuck arbor DIN 69871, SK 40, B18 Drill Chucks drill chuck arbor DIN 69871, SK 40, B18
SKU : 193034
Machinetool accessories: morse taper sleeves: reducing adaptor, tang type DIN 69871, SK 40 / MT1 Milling & Drilling Adapters reducing adaptor, tang type DIN 69871, SK 40 / MT1
SKU : 193037
Machinetool accessories: morse taper sleeves: reducing adaptor, tang type DIN 69871, SK 40 / MT2 Milling & Drilling Adapters reducing adaptor, tang type DIN 69871, SK 40 / MT2
SKU : 193038
Machinetool accessories: morse taper sleeves: reducing adaptor, tang type DIN 69871, SK 40 / MT3 Milling & Drilling Adapters reducing adaptor, tang type DIN 69871, SK 40 / MT3
SKU : 193039
Machinetool accessories: morse taper sleeves: reducing adaptor, tang type DIN 69871, SK 40 / MT4 Milling & Drilling Adapters reducing adaptor, tang type DIN 69871, SK 40 / MT4
SKU : 193040
Collets & Chucks collet chuck DIN 69871, SK40, ER 40
SKU : 193064
Easy remote service of CNC machines is now safer than ever before SmartFactory E.T. Box LAN
SKU : 270307
Easy remote service of CNC machines is now safer than ever before SmartFactory E.T. Box WIFI
SKU : 270308
Easy remote service of CNC machines is now safer than ever before SmartFactory E.T. Box W4G
SKU : 270309

Similar Products

X.mill T 1000 SI - Compact all-in-one solution for complex solutions and powerful 3-axis machining

X.mill T 1000 SI

Travel X-axis: 1.000 mm
Travel Y-axis: 550 mm
X.mill T 700 FA - Compact all-in-one solution for complex solutions and powerful 3-axis machining

X.mill T 700 FA

Travel X-axis: 700 mm
Travel Y-axis: 450 mm
X.mill T 700 SI - Compact all-in-one solution for complex solutions and powerful 3-axis machining

X.mill T 700 SI

Travel X-axis: 700 mm
Travel Y-axis: 450 mm
X.mill T 800 (Fa) - Compact all-in-one solution for complex solutions and powerful 3-axis machining

X.mill T 800 (Fa)

Travel X-axis: 800 mm
Travel Y-axis: 520 mm
X.mill T 800 SI - Compact all-in-one solution for complex solutions and powerful 3-axis machining

X.mill T 800 SI

Travel X-axis: 800 mm
Travel Y-axis: 520 mm
consultation

Need help finding a machine?

We will gladly assist you in making the right decision to achieve your business goals

Service by KNUTH

All machines need an occasional pit stop. With our all-encompassing plans for service, training and installation you always will get the best possible performance from your KNUTH machines.

View Services

See KNUTH Machines in action

Get a first-hand impression at one of our facilities! Many machines in our portfolio are always in stock and available for demonstration.

Book a Demo

Request a quote

X.mill T 1000 FA - Compact all-in-one solution for complex solutions and powerful 3-axis machining
X.mill T 1000 FA
SKU : 181438
*
*
*
*
*
*
*
*
*
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Request timed out, please submit the form again
Thank You!

We have received your request and appreciate your interest! Our sales representative will get in touch within 1 business day.

Explore more machines Book a demo for this machine
Something went wrong

Please refresh the page and try submitting the form again.

Request a Consultation

*
*
*
*
*
*
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Request timed out, please submit the form again
Thank You!

We have received your request and appreciate your interest! Our sales representative will get in touch within 1 business day.

Something went wrong

Please refresh the page and try submitting the form again.

Request a service

*
*
*
*
*
*
*
*
*
*
*
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Request timed out, please submit the form again
Thank You!

We have received your request and appreciate your interest! Our service representative will get in touch within 1 business day.

Something went wrong

Please refresh the page and try submitting the form again.
