The high-resolution touchscreen features a scratch-resistant surface.
Matching rpm and feed speeds for each drill can be recalled from a database and automatically applied.

The high-resolution touchscreen features a scratch-resistant surface. Matching rpm and feed speeds for each drill can be recalled from a database and automatically applied.

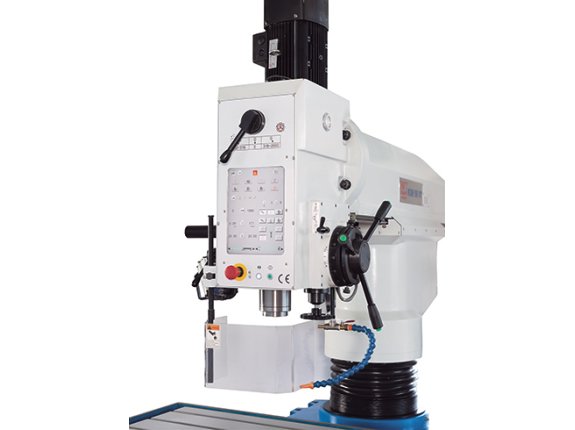

KSR 50 VT

SKU : 162365

“Tool to the workpiece” is the motto of the high-speed radial drilling machines of the KSR series. They offer unique flexibility with clamping surfaces for different applications on three machine sides. The KSR VT also has an electronically controlled servo quill feed and a touchscreen operating display, which supports the selection of the correct machining parameters for drilling and thread cutting. The ideal solution for single and small series production, which is often used in maintenance as well as in tool and steel construction.

  • Unique operating concept
  • 3 workstations
  • Advanced control of machine functions
  • Servomotor-driven quill feed
  • Rigid design with proven high stability
Working area
Drilling capacity 50 mm
Table set up area-length 1200 mm
Table set up area-width 505 mm
Tapping capacity, steel M 32
Throat 640 mm
Spindle nose-to-table surface distance 760 mm
Quill stroke 200 mm
Column diameter 220 mm
Head swivel range ± 90°
Column stroke 400 mm
Travels
Upper beam travel 590 mm
Headstock
Spindle mount 4 MT
Spindle speed (infinitely variable) 50 1/min - 2000 1/min
Feed
Feeds 1 mm/min - 3000 mm/min
Feeds-stages 6
Drive capacity
Motor rating main drive 3 kW
Motor rating hydraulic pump 0.37 kW
Motor rating height adjustment 1.5 kW
Motor rating feed 1.26 kW
Motor rating coolant pump 0.085 kW
Supply voltage 400 V
Measures and weights
Overall dimensions (length x width x height)-length 1.72 m
Overall dimensions (length x width x height)-width 1.2 m
Overall dimensions (length x width x height)-height 2.25 m
Weight 2740 kg

  • Table, column, male die and gear head are made of thick-walled high-grade cast-iron and the entire machine structure features high-quality components and precision machined surfaces
  • The large work area can be expanded by mounting optional swivel and angle tables for a wide variety of clamping and machining options
  • The male die features a low-maintenance, very rigid design and runs smoothly in two large linear roller guideways, allowing exact positioning with minimal effort
  • The entire machine is extremely smooth running for effortless operation in a production environment
  • Column and male die are equipped with hydraulic clamping fixtures
  • Main spindle drive with 2 gear steps, infinitely variable speed in each gear step
  • For angular bores, the drill head can be rotated 45° in either direction
  • A central lubrication system simplifies maintenance

Electronically controlled servo quill feed

  • A servo-motor provides infinitely variable control of the quill feed
  • The depth stop is set electronically with a positioning accuracy of +/- 0.1 mm

Improved functionality and improved layout of the large touchscreen display

  • All machine functions are controlled and displayed on the touchscreen
  • Measuring units for input and display can be selected by the operator (mm or inch)
  • In Thread Cutting Mode, the quill will automatically reverse direction upon reaching the selected thread depth
  • Various alarm screens warn the operator in case of operational errors and display information on the operational state
  • The control software also provides recommendations for rpm and feed in relation to the desired drill size
  • The high-performance coolant system is activated at the touchscreen

touch screen monitor
additional setup areas at the side and rear
cube table
swivelling horizontal table
work lamp
coolant system
tapping unit
reducing sleeves
operating tools
operator manual
