KSR 40 Advance - Precise and quick hydraulic positioning with variable speed for drilling, tapping, counterskinking
Easy handling and sophisticated functionality

Easy handling and sophisticated functionality

Additional setup areas meets all your requirements

Additional setup areas meets all your requirements

KSR 40 Advance - Precise and quick hydraulic positioning with variable speed for drilling, tapping, counterskinking
Easy handling and sophisticated functionality
Additional setup areas meets all your requirements

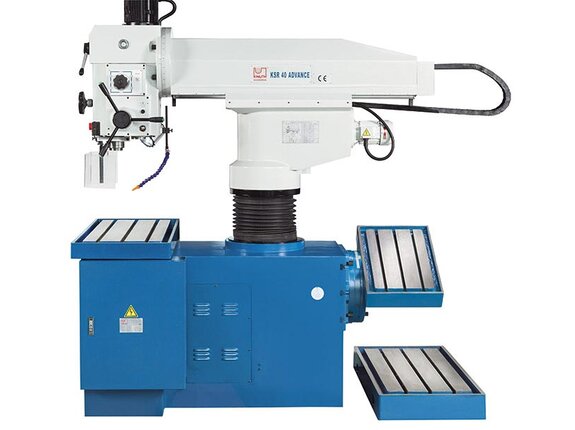

KSR 40 Advance

SKU : 162363

The high-speed radial drilling machines of the KSR series are designed according to the machining principle "tool to workpiece" and are often used in maintenance and in tool and steel construction. The design offers unique flexibility and plenty of work space for larger workpieces, so that one side of the workpiece can be completely machined without repositioning. The machine frame offers clamping surfaces for clamping devices and workpieces on three sides. The quill feed can be varied in four stages by gearbox and with a manually mechanically adjustable depth stop.

  • Unique operating concept
  • 3 workstations
  • Quill feed with gears
  • Digital depth indicator
  • Tapping unit
  • Extensive accessories
Working area
Drilling capacity 40 mm
Tapping capacity, steel M 30
Throat 950 mm
Spindle nose-to-table surface distance 780 mm
Column stroke 380 mm
Quill stroke 200 mm
Head swivel range ± 90°
Column diameter 220 mm
Table set up area 1200 mm x 505 mm
Number of T-slots 3 positions
T-slots, width 18 mm
Travels
Upper beam travel 590 mm
Headstock
Spindle mount 4 MT
Spindle speed (infinitely variable) 50 1/min - 2000 1/min
Feed
Feeds 0,08 mm/R - 0,5 mm/R
Drive capacity
Motor rating main drive 2,2 kW
Motor rating height adjustment 1,5 kW
Motor rating coolant pump 0,37 kW
Measures and weights
Overall dimensions (length x width x height) 1,72 m x 1,2 m x 2,25 m
Weight 2740 kg

  • Powerful machine for drilling, tapping, countersinking and boring
  • Large travel ranges and many different machining stations provide maximum setup and machining possibilities
  • Extremely sturdy construction ensures high accuracy and reliability
  • Quick and precise tool positioning: hydraulic clamping is released by the push of a button, head easily swivels forward, backward and horizontally
  • Motorized up and down movement of drill head
  • Height can be adjusted without changing the drilling position
  • Provides great flexibility when machining large parts
  • Drill head swivels ±90 degrees
  • Automatic feed with depth stop trigger
  • Thick-walled column and large dimensions of all components ensure maximum accuracy
  • Digital boring depth display
  • Infinitely variable spindle speed with digital display and a digital drilling depth indicator provide extra convenience for the operator

digital speed indicator

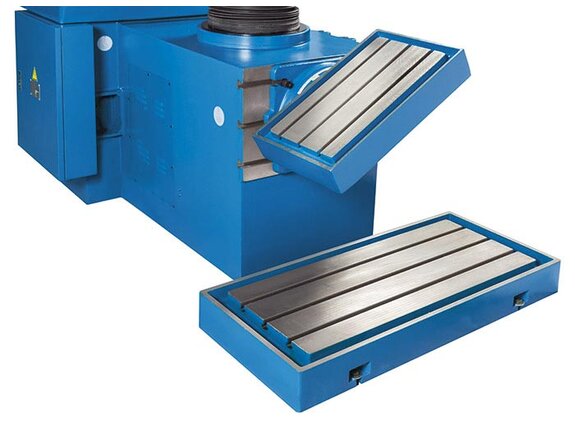

additional setup areas at the side and rear
cube table
swivelling horizontal table
digital boring depth indicator
work lamp
coolant system
Thread cutting function
drill chuck with tool-holder bits
Reduction sleeves
operating tools
operator manual

KSR 40 Advance Compound Sliding Table with milling function
KSR 40 Advance Compound Sliding Table with milling function SKU: 162364
KSR 40 Advance Compound Sliding Table with milling function
Reduction Sleeve MT 4/1 SKU: 103820
Reduction Sleeve MT 4/1
  • Reducing sleeves are used for tool mounting with Morse taper shanks on lathes, drill presses, and milling machines
  • The sleeves are hardened to ensure a secure hold, and ground inside and outside
Reduction Sleeve MT 4/2 SKU: 103825
Reduction Sleeve MT 4/2
  • Reducing sleeves are used for tool mounting with Morse taper shanks on lathes, drill presses, and milling machines
  • The sleeves are hardened to ensure a secure hold, and ground inside and outside
Reduction Sleeve MT 4/3 SKU: 103830
Reduction Sleeve MT 4/3
  • Reducing sleeves are used for tool mounting with Morse taper shanks on lathes, drill presses, and milling machines
  • The sleeves are hardened to ensure a secure hold, and ground inside and outside
Extension Sleeve MT 4/5 SKU: 104670
Extension Sleeve MT 4/5
  • With inside and outside Morse taper shank
  • With tangs
  • Fully hardened and ground
  • Maximum concentricity
Taper Drift MT 4/5 SKU: 104695
Taper Drift MT 4/5
Tool Holder Bit MT4 / B16 SKU: 104745
Tool Holder Bit MT4 / B16
  • Hardened and precision-ground for maximum concentricity, MT shank and tangs
  • Precise and cost-effective design for mounting of drill chucks on drill presses, lathes, equipment, etc.
Tool Holder Bit MT4 / B18 SKU: 104750
Tool Holder Bit MT4 / B18
  • Hardened and precision-ground for maximum concentricity, MT shank and tangs
  • Precise and cost-effective design for mounting of drill chucks on drill presses, lathes, equipment, etc.
Keyless Drill Chuck 1-13 mm B 16 SKU: 104765
Keyless Drill Chuck 1-13 mm B 16
  • Chucking range 1-13 mm
  • Mount B 16
Keyless Drill Chuck 3-16 mm B 18 SKU: 104770
Keyless Drill Chuck 3-16 mm B 18
  • Chucking range 3-16 mm
  • Mount B 18
Clamping Tool Set De Luxe 14/M12 SKU: 105295
Clamping Tool Set De Luxe 14/M12
  • 52 parts
  • In a convenient, sturdy steel magazine
  • 24 stud bolts, 4 each in the lengths 75, 100, 125, 150, 175, 200 mm
  • 4 extension nuts, 6 stepped clamps (3 pair), 6 T-slot nuts, 6 hexagon nuts flanged, step blocks (3 pairs)
Tapping Attachment MT3/4 M5-M12 SKU: 106035
Tapping Attachment MT3/4 M5-M12
  • Integrated quick-return acts promptly upon feed direction change
  • Slip coupling torque adjustable to 4 levels
  • Including MT 3 and MT 4 shank
  • For thread cutter
Tapping Attachment MT3/4 M8-M20 SKU: 106037
Tapping Attachment MT3/4 M8-M20
  • Integrated quick-return acts promptly upon feed direction change
  • Slip coupling torque adjustable to 4 levels
  • Including MT 3 and MT 4 shank
  • For thread cutter
HSS Form Countersing Set round 2 - 12 mm SKU: 107615
HSS Form Countersing Set round 2 - 12 mm
  • With parallel shank
  • Made of wear-resistant HSS material
  • Within stand
  • The set consists of 8 countersinks
  • Set 2 - 12 mm (consisting of 2, 3, 4, 5, 6, 8, 10 + 12 mm)
HSS Form Countersing Set round 6 - 20 mm SKU: 107617
HSS Form Countersing Set round 6 - 20 mm
  • With parallel shank
  • Made of wear-resistant HSS material
  • Within stand
  • The set consists of 8 countersinks
  • Set 6 - 20 mm (consisting of 6, 8, 10, 12, 14, 16, 18 + 20 mm)
Lathe Bore Head with Boring Bar Set 50 mm 9 pcs. SKU: 108631
Lathe Bore Head with Boring Bar Set 50 mm 9 pcs.
  • For easy inside diameter turning on drill presses, lathes and milling machines
  • Micrometer screw for precise inside turning diameter adjustment
  • High quality steel hardened and precision-ground
  • Feed: 0.01 mm / division line
  • 2 vertical tool mounts, 1 horizontal tool mount
Lathe Bore Head with Boring Bar Set 75 mm 12 pcs. SKU: 108633
Lathe Bore Head with Boring Bar Set 75 mm 12 pcs.
  • For easy inside diameter turning on drill presses, lathes and milling machines
  • Micrometer screw for precise inside turning diameter adjustment
  • High quality steel hardened and precision-ground
  • Feed: 0.01 mm / division line
  • 2 vertical tool mounts, 1 horizontal tool mount
Mounting Shank for reaming head 50/75 mm, MT4 SKU: 108641
Mounting Shank for reaming head 50/75 mm, MT4
  • Mount with connection thread for reaming heads
  • With draw-in bolt thread for use on milling machines
  • Tapers are hardened and ground
  • The reaming head set is provided without mount
  • Shank with draw-in thread MT 4
Combo Flat Counter Sink SKU: 108655
Combo Flat Counter Sink

Multiple cutter countersink with front face bore. Exchangeable pilot pins allow the use of one countersink for several pilot bores of different sizes.

  • MT 2 shank
  • Flat countersink: Ø14.5-24.5 mm
  • Sizes: Ø 14.5 / 16.5 / 18.5 / 20.5 / 22.5 / 24.5 mm
  • Pilot pin: Ø7 - 15 mm
  • Sizes: Ø7 / 7.5 / 8 / 8.5 / 9 / 9.5 / 10 / 10.5 / 11 / 11.5 / 12 / 13 / 14 / 15 mm
Counter-Sink 90° SKU: 108665
Counter-Sink 90°
  • 5, 6, 8, 10, 12 mm
  • HSS, 3 cutters
SKU: 125006
  • Integrated quick-action clamping
  • Spindle nut with 3x interlocking teeth ensures high clamping force and a secure hold
  • Replaceable jaws made of hardened and ground steel
  • Wide and flat construction
  • Long slots for many setup possibilities
SKU: 125007
  • Integrated quick-action clamping
  • Spindle nut with 3x interlocking teeth ensures high clamping force and a secure hold
  • Replaceable jaws made of hardened and ground steel
  • Wide and flat construction
  • Long slots for many setup possibilities
UMS 140 Machine Vise SKU: 125031
UMS 140 Machine Vise
  • Solid vise, ideal for drill presses
  • Deep hole bores for flexible clamping
  • Low height for cost-effective use of machine
UMS 200 Machine Vise SKU: 125032
UMS 200 Machine Vise
  • Solid vise, ideal for drill presses
  • Deep hole bores for flexible clamping
  • Low height for cost-effective use of machine
Coolant Concentrate 5 Ltr. SKU: 103184
Coolant Concentrate 5 Ltr.
  • Improved chip flow, longer tool service life and better cut profile
  • For sawing, drilling, milling, turning of steel, cast-iron, stainless steel, non-ferrous and light metals
  • Dilute with water 1:20
  • 1 canister contains 5 Ltr.
SKU: 104840
  • 1 horizontal v-slot and 3 vertical v-slots
  • Parallelism of jaws: 0.02 mm
  • Guide to base: 0.02 mm
SKU: 104845
  • 1 horizontal v-slot and 3 vertical v-slots
  • Parallelism of jaws: 0.02 mm
  • Guide to base: 0.02 mm
De Luxe Clamping Tool Set 18/M16 SKU: 105305
De Luxe Clamping Tool Set 18/M16
  • 52 parts
  • In a convenient, sturdy steel magazine
  • 24 stud bolts, 4 each in the lengths 75, 100, 125, 150, 175, 200 mm
  • 4 extension nuts, 6 stepped clamps (3 pair), 6 T-slot nuts, 6 hexagon nuts flanged, step blocks (3 pairs)
Universal Facing / Lathe Bore Head ADA / MT 4 SKU: 103402
Universal Facing / Lathe Bore Head ADA / MT 4
  • With self-actuated slide advance and automatic stop activation
  • Can be used on drill presses, lathes, milling machines, etc.
  • Automatic advance ensures constant tool feed
  • Adjustable guides
  • Adjustable stops
  • Made of carbon-chromium-molybdenum steel
  • All parts are hardened and precision-ground
  • Guaranteed maximum accuracy
  • Incl. reducing sleeves 4, 8, 12 mm
Accessory Set for Drilling MT4, 8-pc SKU: 104594
Accessory Set for Drilling MT4, 8-pc
  • Incl. keyless drill chuck and drill chuck arbors
  • In wooden case

Content / Set:

  • Reducing sleeve: MT 4 / MT 3
  • Reducing sleeve: MT 4 / MT 2
  • Reducing sleeve: MT 4 / MT 1
  • Extension Sleeve: MT 4 / MT 5
  • Tool holder bit: MT 4 / B 18
  • Tool holder bit: MT 4 / B 16
  • Keyless drill chuck: 3-16 mm / B 18
  • Keyless drill chuck: 1-13 mm / B 16
