Direct indexing head S 200

excl. VAT
A divider is a universal device for positioning a workpiece at a precise angle, so that it can be machined on its face or side surface. Direct dividers include a disc with a single row of notches or boreholes that can be stopped in a particular position with a wedge or bolts. For easier operation, divider sections that are not needed can be covered, so the desired separation can be set easily and reliably.
  • Vertical and horizontal setup
  • Centrally clamping 3-jaw chuck
SKU : 110966

Delivery from our German warehouse

2-4 days domestic delivery

5-7 days international delivery

Product Details

  • The S 200 Direct Indexing Head can be used in a horizontal or vertical setup. The indexing unit is enclosed in the resistant cast-iron body of the divider, where it is protected from contamination to ensure precise and constant divisions of 2, 3, 4, 6, 8, 12, and 24. An easy-to-read circumferentially mounted Nonius scale provides exact divisions up to 360º. A sturdy clamping lever is provided for the torsion-proof fixture of the chuck at any set position.

Technical Specs

Center height
150 mm
Manual 3-jaw-chuck diameter
210 mm
2, 3, 4, 6, 8, 12, 24
Spindle concentricity radial
0,01 mm
Axial concentricity, clamping plate
0,015 mm
Optical flat setup plate - base plate
0,02 mm
Squareness of setup area
0,015/200 mm
Indexing accuracy
25 "
59 kg

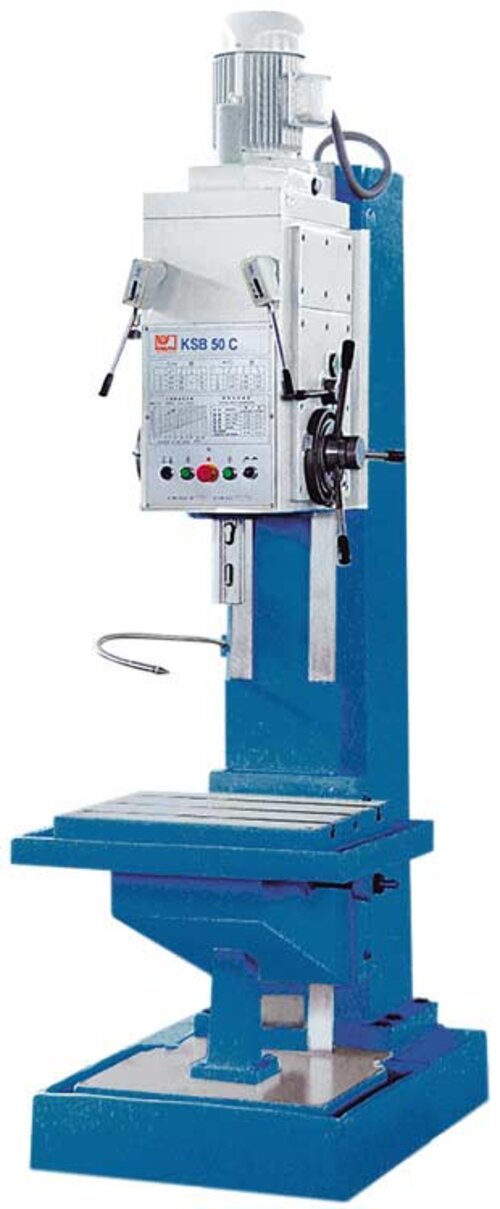

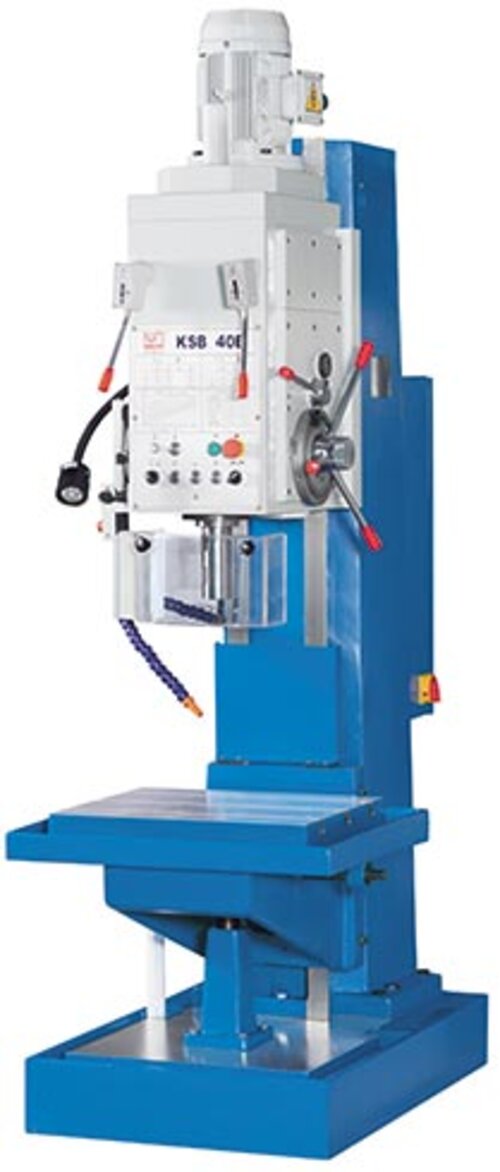

Compatible Machines
