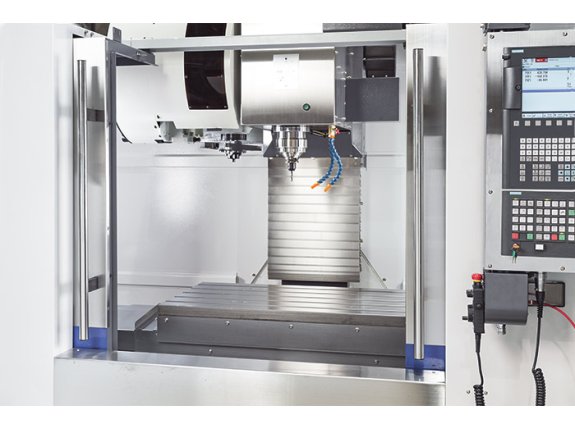

Vector 1200 M model with Siemens Sinumerik 828D is shown

Linear-roller guides for super quiet operation

Linear-roller guides for super quiet operation

Siemens Sinumerik 828D with ShopMill

Siemens Sinumerik 828D with ShopMill

Tool changer with dual-arm gripper and 24 tool stations

Tool changer with dual-arm gripper and 24 tool stations

Wide opening front doors

Wide opening front doors

Additional guides for even more load capacity and increased stability

Additional guides for even more load capacity and increased stability

VECTOR 1200 M SI - Premium milling solution for mould making and production with extensive customisation and automation options
Linear-roller guides for super quiet operation
Siemens Sinumerik 828D with ShopMill
Tool changer with dual-arm gripper and 24 tool stations
Wide opening front doors
Additional guides for even more load capacity and increased stability

C-FRAME VERTICAL CNC CENTER

VECTOR 1200 M SI

SKU : 181423

The Vector 1200 series was developed for machining large and heavy workpieces. The heavy machine frame made of Meehanite cast, the robust construction with four guideways on the Y-axis and high-quality components guarantee consistently high cutting performance. You can rely on high precision even in multi-shift operations. A wide range of accessories allows the machines to be expanded into tailor-made complete solutions for specific applications. The series offers automation solutions that enable you to further increase productivity.

  • Spindle on multiple bearings ensures minimal vibrations
  • 30-bar CTS to ensure optimum machining quality
  • Designed for multi-shift operation
  • Many customization and automation possibilities
  • 2-year standard warranty
Working area
Table dimensions 1300 mm x 600 mm
Table load capacity 1200 kg
Tool weight max. 7 kg
Spindle nose-to-table surface distance 150 mm - 750 mm
Spindle center - column 670 mm
Number of T-slots 5 positions
T-slot (width x spacing) 18 mm x 100 mm
Travels
Travel X-axis 1220 mm
Travel Y-axis 600 mm
Travel Z-axis 600 mm
Headstock
Spindle speed 10000 1/min
Spindle mount SK 40 ISO 7388-1 (DIN 69871)
Rapid feed
Rapid feed 36 m/min
Feed
Work feed 10000 mm/min
Tooling
Number of tool stations 24 positions
Tool size Ø x L (max.) 80 mm x 300 mm
Tool-changing time chip/chip 3,9 sec
Tool-change time tool/tool 1,8 sec
Accuracies
Positioning accuracies ± 0,005/ 0,0002" mm
Repeatabilities ± 0,003 / ± 0,00012" mm
Drive capacity
Main drive, continuous load 12 kW
Motor rating X-axis 3,3 kW
Motor rating Y-axis 3,3 kW
Motor rating Z-axis 5,5 kW
Total power consumption 13 kVA
Control
Control Siemens
Measures and weights
Overall dimensions (length x width x height) 3 m x 2,4 m x 2,93 m
Weight 6500 kg

Machine Design

  • The innovative machine base design features a low center of gravity for excellent rigidity, allowing high-precision machining of workpieces with weights up to 1200 kg
  • With extensive experience and modern FEM analysis tools for the simulation of countless load conditions, it was possible to guarantee superior stability of the machine frame in real-world applications
  • One development goal was to achieve a space-saving, compact design
  • Linear roller guides on all axes provide high load capacities, maximum rigidity and smooth motion ensuring the high dynamics needed to optimally handle high loads
  • Powerful servo-drives connect directly to large preloaded ball screws providing zero-loss high torque transmission

Main spindle

  • Main spindle runs on multiple bearings to ensure excellent absorption and dissipation of forces during machining
  • The advanced design of our spindles ensure low heat accumulation under load
  • Large pre-loaded bearings ensure radial stability during heavy-duty machining operations
  • High-temperature lubricants ensure optimum lubrication at any operating temperature and a long tool life
  • Clamping the tool between contact surfaces at the taper and workpiece flange ensures maximum hold of the tool in the spindle

Tool Changer

  • The VECTOR is equipped with the best tool changer to allow full utilization of the machining center’s capacity
  • With only 1.8 seconds tool changing time, the dual-arm gripper also is one of the fastest tool changers on the market

Handling

  • The totally enclosed workspace features a large door and side doors for easy access, safety and cleanliness
  • Electrical equipment is divided into separate control cabinets for high and low voltage systems, which results in a significant reduction of heat accumulation and noise
  • An electronic hand-wheel simplifies machine set-up
  • The automatic central lubrication system ensures proper lubrication of all lube points

Siemens 828D control with Shopmill SKU:

SINUMERIK 828 D – The workhorse in the compact class of CNCs

Highlights

  • Compact, robust, maintenance-free control panel-based CNC
  • Comfortable program and parameter input via QWERTY keyboard
  • Maximum machining precision
  • Intelligent kinematic transformations for machining of cylindrical parts, and for angled workpiece levels
  • SINUMERIK MDynamics with the new Advanced Surface feature: for perfect part surfaces and shortest machining times in mold making applications
  • ShopMill: shortest programming time for single parts and small batch productions
  • ProgramGUIDE: fastest machining time and maximum flexibility for large series productions
  • Unique spectrum of technology cycles - from milling contours with residual material recognition to process measurements
  • Animated Elements: unique operation and programming assistance with animated sequences
  • Modern data transfer options via USB stick, CF card and network (Ethernet)
  • Easy Message: maximum machine availability due to process monitoring per texting (SMS)

CNC hardware

  • Control-panel based high-performance CNC Control
  • Robust front control panel made of magnesium die-casting
  • Integreated full-size QWERTY keyboard
  • Maintenance-free design (no buffer battery required)

CNC performance data and functions

  • SINUMERIK MDynamics package with Advanced Surface for mold making applications
  • Dynamic feed-forward control
  • 4-axis simultaneous interpolation (X, Y, Z and rotary axis)
  • Linear, circular and helical interpolation
  • Tapping without compensating chuck, plus thread cutting
  • Oriented spindle holder
  • Toggle between inch and metric units
  • FRAME concept for individual coordinate transformations, rotations, scaling and mirroring
  • 100 adjustable zero offsets
  • Synchronous actions and quick help function output

CNC technology cycles

  • Technology cycles for programGUIDE and ShopMill work step programming are available
  • Large selection of drilling cycles
  • Large selection of milling cycles for standard geometry
  • Large selection of position patterns for drilling and milling operations
  • High-speed settings for mold making applications
  • Geometry calculator for free contour input
  • Machining cycle for contour pockets / contour spigots with isolated contours

Graphic features

  • Animated Elements: input help for machining parameters with animated sequences
  • Graphical online help system, similar to PC system
  • Graphical CNC simulation with level display

CNC tool management

  • Display of tool and magazine data on one screen
  • Tool management with plain-text tool names
  • Loading/unloading feature for easy magazine assignment
  • Tool management with tool life monitoring
  • 10.4“ TFT color monitor
  • Jerk-limited acceleration
Siemens 828D control with Shopmill
Siemens 828D control with Shopmill SKU:

SINUMERIK 828 D – The workhorse in the compact class of CNCs

Highlights

  • Compact, robust, maintenance-free control panel-based CNC
  • Comfortable program and parameter input via QWERTY keyboard
  • Maximum machining precision
  • Intelligent kinematic transformations for machining of cylindrical parts, and for angled workpiece levels
  • SINUMERIK MDynamics with the new Advanced Surface feature: for perfect part surfaces and shortest machining times in mold making applications
  • ShopMill: shortest programming time for single parts and small batch productions
  • ProgramGUIDE: fastest machining time and maximum flexibility for large series productions
  • Unique spectrum of technology cycles - from milling contours with residual material recognition to process measurements
  • Animated Elements: unique operation and programming assistance with animated sequences
  • Modern data transfer options via USB stick, CF card and network (Ethernet)
  • Easy Message: maximum machine availability due to process monitoring per texting (SMS)

CNC hardware

  • Control-panel based high-performance CNC Control
  • Robust front control panel made of magnesium die-casting
  • Integreated full-size QWERTY keyboard
  • Maintenance-free design (no buffer battery required)

CNC performance data and functions

  • SINUMERIK MDynamics package with Advanced Surface for mold making applications
  • Dynamic feed-forward control
  • 4-axis simultaneous interpolation (X, Y, Z and rotary axis)
  • Linear, circular and helical interpolation
  • Tapping without compensating chuck, plus thread cutting
  • Oriented spindle holder
  • Toggle between inch and metric units
  • FRAME concept for individual coordinate transformations, rotations, scaling and mirroring
  • 100 adjustable zero offsets
  • Synchronous actions and quick help function output

CNC technology cycles

  • Technology cycles for programGUIDE and ShopMill work step programming are available
  • Large selection of drilling cycles
  • Large selection of milling cycles for standard geometry
  • Large selection of position patterns for drilling and milling operations
  • High-speed settings for mold making applications
  • Geometry calculator for free contour input
  • Machining cycle for contour pockets / contour spigots with isolated contours

Graphic features

  • Animated Elements: input help for machining parameters with animated sequences
  • Graphical online help system, similar to PC system
  • Graphical CNC simulation with level display

CNC tool management

  • Display of tool and magazine data on one screen
  • Tool management with plain-text tool names
  • Loading/unloading feature for easy magazine assignment
  • Tool management with tool life monitoring
  • 10.4“ TFT color monitor
  • Jerk-limited acceleration
Coolant through spindle 30 bar with double filter
Coolant through spindle 30 bar with double filter SKU:
24-station tool changer with dual-arm
24-station tool changer with dual-arm SKU:
ST 40 mount
ST 40 mount SKU:
Spindle oil cooler
Spindle oil cooler SKU:
Chain-type conveyor with chip container
Chain-type conveyor with chip container SKU:
Electronic hand-wheel
Electronic hand-wheel SKU:
Oil skimmer
Oil skimmer SKU:
Automatic central lubrication
Automatic central lubrication SKU:
Coolant system flush gun
Coolant system flush gun SKU:
Chip wash system
Chip wash system SKU:
Heat Exchanger for electric control cabinet
Heat Exchanger for electric control cabinet SKU:
Telescoping axis cover
Telescoping axis cover SKU:
USB port
USB port SKU:
Work lamp
Work lamp SKU:
3-color signal lamp
3-color signal lamp SKU:
CF card reader
CF card reader SKU:
Totally enclosed work space
Totally enclosed work space SKU:
Coolant system
Coolant system SKU:
Adjustable machine feet
Adjustable machine feet SKU:
Operating tools
Operating tools SKU:
Operator instructions
Operator instructions SKU:
Preparation for Renishaw TS 27 R
Preparation for Renishaw TS 27 R SKU:

Siemens 828D control with Shopmill

SINUMERIK 828 D – The workhorse in the compact class of CNCs

Highlights

  • Compact, robust, maintenance-free control panel-based CNC
  • Comfortable program and parameter input via QWERTY keyboard
  • Maximum machining precision
  • Intelligent kinematic transformations for machining of cylindrical parts, and for angled workpiece levels
  • SINUMERIK MDynamics with the new Advanced Surface feature: for perfect part surfaces and shortest machining times in mold making applications
  • ShopMill: shortest programming time for single parts and small batch productions
  • ProgramGUIDE: fastest machining time and maximum flexibility for large series productions
  • Unique spectrum of technology cycles - from milling contours with residual material recognition to process measurements
  • Animated Elements: unique operation and programming assistance with animated sequences
  • Modern data transfer options via USB stick, CF card and network (Ethernet)
  • Easy Message: maximum machine availability due to process monitoring per texting (SMS)

CNC hardware

  • Control-panel based high-performance CNC Control
  • Robust front control panel made of magnesium die-casting
  • Integreated full-size QWERTY keyboard
  • Maintenance-free design (no buffer battery required)

CNC performance data and functions

  • SINUMERIK MDynamics package with Advanced Surface for mold making applications
  • Dynamic feed-forward control
  • 4-axis simultaneous interpolation (X, Y, Z and rotary axis)
  • Linear, circular and helical interpolation
  • Tapping without compensating chuck, plus thread cutting
  • Oriented spindle holder
  • Toggle between inch and metric units
  • FRAME concept for individual coordinate transformations, rotations, scaling and mirroring
  • 100 adjustable zero offsets
  • Synchronous actions and quick help function output

CNC technology cycles

  • Technology cycles for programGUIDE and ShopMill work step programming are available
  • Large selection of drilling cycles
  • Large selection of milling cycles for standard geometry
  • Large selection of position patterns for drilling and milling operations
  • High-speed settings for mold making applications
  • Geometry calculator for free contour input
  • Machining cycle for contour pockets / contour spigots with isolated contours

Graphic features

  • Animated Elements: input help for machining parameters with animated sequences
  • Graphical online help system, similar to PC system
  • Graphical CNC simulation with level display

CNC tool management

  • Display of tool and magazine data on one screen
  • Tool management with plain-text tool names
  • Loading/unloading feature for easy magazine assignment
  • Tool management with tool life monitoring
  • 10.4“ TFT color monitor
  • Jerk-limited acceleration
Arm Type BT40 upg. from 24 to 30 tools
Arm Type BT40 upg. from 24 to 30 tools SKU: 252967
Arm Type BT40 upg. from 24 to 30 tools
Connection for 4th axis (wiring only and axis chart) SKU: 253019
Connection for 4th axis (wiring only and axis chart)
Siemens Function: P25: 3D Simulation SKU: 253378
Siemens Function: P25: 3D Simulation
Siemens Function: P13: Residual Material Detection SKU: 253379
Siemens Function: P13: Residual Material Detection
Siemens Function: P22: Simultaneous Recording SKU: 253380
Siemens Function: P22: Simultaneous Recording
Ø 170mm 4th axis (4th axis, servo motor, driver, air brakes)(Si) SKU: 253605
Ø 170mm 4th axis (4th axis, servo motor, driver, air brakes)(Si)
Ø 210mm 4th axis (4th axis, servo motor, driver, air brakes)(Si) SKU: 253606
Ø 210mm 4th axis (4th axis, servo motor, driver, air brakes)(Si)
Ø 250mm 4th axis (4th axis, servo motor, driver, air brakes)(Si) SKU: 253607
Ø 250mm 4th axis (4th axis, servo motor, driver, air brakes)(Si)
manual tailstock ST-170T for rotary table for X.mill SKU: 253618
manual tailstock ST-170T for rotary table for X.mill
manual tailstock ST-210T for rotary table for X.mill SKU: 253619
manual tailstock ST-210T for rotary table for X.mill
manual tailstock ST-255T for rotary table for X.mill SKU: 253620
manual tailstock ST-255T for rotary table for X.mill
manual 6'' chuck for rotary table for X.mill SKU: 253622
manual 6'' chuck for rotary table for X.mill
manual 8'' chuck for rotary table for X.mill SKU: 253623
manual 8'' chuck for rotary table for X.mill
manual 9'' chuck for rotary table for X.mill SKU: 253624
manual 9'' chuck for rotary table for X.mill
Z axis travel upgrade from 550 to 800 mm for X.mill SKU: 253625
Z axis travel upgrade from 550 to 800 mm for X.mill
Upgrade from 10.4” to 15” touch screen (for PPU260 or higher) SKU: 253674
Upgrade from 10.4” to 15” touch screen (for PPU260 or higher)
200mm diam. 4th & 5th axis SKU: 253682
200mm diam. 4th & 5th axis
Spindle speed upgrade to 12000 rpm, belt-type SKU: 253781
Spindle speed upgrade to 12000 rpm, belt-type
Top cover for Vector 1200 SKU: 253838
Top cover for Vector 1200
12,000 rpm, direct drive CTS for Vector 650-1200(Si) SKU: 253956
12,000 rpm, direct drive CTS for Vector 650-1200(Si)
Renishaw OMP40-2T Workpiece Scanning Probe SKU: 253288
Renishaw OMP40-2T Workpiece Scanning Probe

The ultra-compact OMP40-2 (40 mm diameter) touch-trigger probe with optical transmission provides a flexible probing solution. The OMP40 is suitable for small to medium machining centres.

  • Testing and setting up workpieces on machining centres
  • Proven kinematic design
  • Exceptional resistance to light interference with modulated transmission
  • 360° transmission envelope
  • 1.00 µm 2σ repeatability
Renishaw SET OMP40-2T measuring probe +OTS Toolsetter (SK 40) SKU: 254026
Renishaw SET OMP40-2T measuring probe +OTS Toolsetter (SK 40)

The ultra-compact OMP40-2 (40 mm diameter) touch-trigger probe with optical transmission provides a flexible probing solution. The OMP40 is suitable for small to medium machining centres. The OTS 3D touch-trigger tool setter with optical signal transmission can be used for on a wide range of tools on small to medium machining centres. It is compatible with Renishaw optical modulated receivers and can be used as part of a twin probe system. The robust and cable-free design allows freedom of table movement, ideal for twin pallet or rotary table machines.

  • Testing and setting up workpieces on machining centres (OMP)
  • Tool measurement and breakage detection on machining centres (OTS)
  • Proven kinematic design
  • Exceptional resistance to light interference with modulated transmission
  • 360° transmission envelope
  • Richtungsverstellbares optisches Infrarotmodul (OTS)
  • Kabelfrei zur uneingeschränkten Maschinenbewegung und einfachen Installation
  • 1.00 µm 2σ repeatability
Renishaw OTS Toolsetter SKU: 254285
Renishaw OTS Toolsetter

The OTS 3D touch-trigger tool setter with optical signal transmission can be used for on a wide range of tools on small to medium machining centres. It is compatible with Renishaw optical modulated receivers and can be used as part of a twin probe system. The robust and cable-free design allows freedom of table movement, ideal for twin pallet or rotary table machines.

  • Tool measurement and breakage detection on machining centres
  • Proven kinematic design
  • Exceptional resistance to light interference with modulated transmission
  • Direction-adjustable infrared optical module
  • Cable-free for unrestricted machine movement and ease of installation
  • 1.00 µm 2σ repeatability

Resources & Downloads

Optional Accessories

Explore the range of compatible accessories in stock

Easy remote service of CNC machines is now safer than ever before SmartFactory E.T. Box LAN
SKU : 270307
Easy remote service of CNC machines is now safer than ever before SmartFactory E.T. Box WIFI
SKU : 270308
Easy remote service of CNC machines is now safer than ever before SmartFactory E.T. Box W4G
SKU : 270309
Milling Arbors & Milling Chucks Pull stud DIN 69872A SK40 with hole
SKU : 253962
Drill Chucks Keyless Drill Chuck 1-13 mm B 16
SKU : 104765
Drill Chucks Keyless Drill Chuck 3-16 mm B 18
SKU : 104770
Vises HNCS 160V hydraulic machine vise
SKU : 104934
Vises Dial for HNCS 160V
SKU : 104935
Clamping Kits De Luxe Clamping Tool Set 18/M16
SKU : 105305
Clamping Kits Swivel Hold-Down Clamp Set 125/M16
SKU : 105800
Collets & Chucks ER 32 Collet Set 6 pcs.
SKU : 106052
Collets & Chucks ER 40 Collet Set 15 pcs.
SKU : 106075
Collets Angle Collet Fixture (vertical + horizontal)
SKU : 106090
Collets 5-C-Collet Clamp-Ø 1 mm
SKU : 106103
Collets 5-C-Collet Clamp-Ø 2 mm
SKU : 106104
Collets 5-C-Collet Clamp-Ø 3 mm
SKU : 106105
Collets 5-C-Collet Clamp-Ø 4 mm
SKU : 106110
Collets 5-C-Collet Clamp-Ø 25 mm
SKU : 106215
Chip Removal Power Worker Metal Cutter
SKU : 123040
Vises HS 150 Hydraulic machine vise
SKU : 125028
Vises Corrugated Parallel Parts 9-23mm
SKU : 128960
Vises Corrugated Parallels 25-39mm
SKU : 128961
Machinetool accessories: combination arbors: combination arbor DIN 69871, SK 40 Ø 13 Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 13
SKU : 192926
Machinetool accessories: combination arbors: combination arbor DIN 69871, SK 40 Ø 16 Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 16
SKU : 192927
Machinetool accessories: combination arbors: combination arbor DIN 69871, SK 40 Ø 22 Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 22
SKU : 192928
Machinetool accessories: combination arbors: combination arbor DIN 69871, SK 40 Ø 27 Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 27
SKU : 192929
Machinetool accessories: combination arbors: combination arbor DIN 69871, SK 40 Ø 32 Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 32
SKU : 192930
Machinetool accessories: combination arbors: combination arbor DIN 69871, SK 40 Ø 40 Milling Arbors & Milling Chucks combination arbor DIN 69871, SK 40 Ø 40
SKU : 192931
Machinetool accessories: drill chuck arbors: drill chuck arbor DIN 69871, SK 40, B16 Drill Chucks drill chuck arbor DIN 69871, SK 40, B16
SKU : 193033
Machinetool accessories: drill chuck arbors: drill chuck arbor DIN 69871, SK 40, B18 Drill Chucks drill chuck arbor DIN 69871, SK 40, B18
SKU : 193034
Machinetool accessories: morse taper sleeves: reducing adaptor, tang type DIN 69871, SK 40 / MT1 Milling & Drilling Adapters reducing adaptor, tang type DIN 69871, SK 40 / MT1
SKU : 193037
Machinetool accessories: morse taper sleeves: reducing adaptor, tang type DIN 69871, SK 40 / MT2 Milling & Drilling Adapters reducing adaptor, tang type DIN 69871, SK 40 / MT2
SKU : 193038
Machinetool accessories: morse taper sleeves: reducing adaptor, tang type DIN 69871, SK 40 / MT3 Milling & Drilling Adapters reducing adaptor, tang type DIN 69871, SK 40 / MT3
SKU : 193039
Machinetool accessories: morse taper sleeves: reducing adaptor, tang type DIN 69871, SK 40 / MT4 Milling & Drilling Adapters reducing adaptor, tang type DIN 69871, SK 40 / MT4
SKU : 193040
Machinetool accessories: collet chucks: collet chuck DIN 69871, SK40, ER 40 Collets & Chucks collet chuck DIN 69871, SK40, ER 40
SKU : 193064
Machinetool accessories: Weldon chucks with coolant ring: Weldon with coolant ring DIN 69871, SK 40, Ø 25 Milling Arbors & Milling Chucks Weldon with coolant ring DIN 69871, SK 40, Ø 25
SKU : 193079
Machinetool accessories: Weldon chucks with coolant ring: Weldon with coolant ring DIN 69871, SK 40, Ø 32 Milling Arbors & Milling Chucks Weldon with coolant ring DIN 69871, SK 40, Ø 32
SKU : 193080
Machinetool accessories: Weldon chucks with coolant ring: Weldon with coolant ring DIN 69871, SK 40, Ø 40 Milling Arbors & Milling Chucks Weldon with coolant ring DIN 69871, SK 40, Ø 40
SKU : 193081
consultation

Need help finding a machine?

We will gladly assist you in making the right decision to achieve your business goals

Service by KNUTH

All machines need an occasional pit stop. With our all-encompassing plans for service, training and installation you always will get the best possible performance from your KNUTH machines.

View Services

See KNUTH Machines in action

Get a first-hand impression at one of our facilities! Many machines in our portfolio are always in stock and available for demonstration.

Book a Demo

Request a quote

VECTOR 1200 M SI - Premium milling solution for mould making and production with extensive customisation and automation options
VECTOR 1200 M SI
SKU : 181423
*
*
*
*
*
*
*
*
*
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Request timed out, please submit the form again
Thank You!

We have received your request and appreciate your interest! Our sales representative will get in touch within 1 business day.

Explore more machines Book a demo for this machine
Something went wrong

Please refresh the page and try submitting the form again.

Request a Consultation

*
*
*
*
*
*
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Request timed out, please submit the form again
Thank You!

We have received your request and appreciate your interest! Our sales representative will get in touch within 1 business day.

Something went wrong

Please refresh the page and try submitting the form again.

Request a service

*
*
*
*
*
*
*
*
*
*
*
*
*
*
This site is protected by reCAPTCHA and the Google Privacy Policy and Terms of Service apply.
Request timed out, please submit the form again
Thank You!

We have received your request and appreciate your interest! Our service representative will get in touch within 1 business day.

Something went wrong

Please refresh the page and try submitting the form again.
