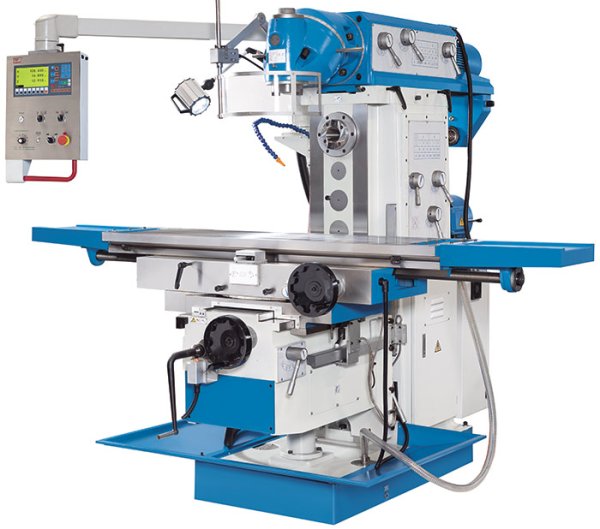

UWF 6 - With extended travel on axes, universal type milling head, ISO50 spindle, automatic feed on all axis and swiveling table

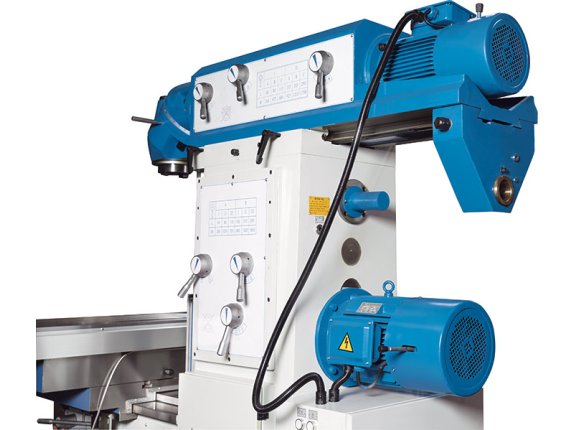

Horizontal spindle with its own drive and finely stepped gearbox

Horizontal spindle with its own drive and finely stepped gearbox

Large work area, cutter head swivels on 2 levels

Large work area, cutter head swivels on 2 levels

Premium electric components plus clean and structured wiring minimize disruptions

Premium electric components plus clean and structured wiring minimize disruptions

Manual central lubrication reduces maintenance and extends the machine life

Manual central lubrication reduces maintenance and extends the machine life

Swiveling control panel with integrated position indicator

Swiveling control panel with integrated position indicator

UWF 6 - With extended travel on axes, universal type milling head, ISO50 spindle, automatic feed on all axis and swiveling table
Horizontal spindle with its own drive and finely stepped gearbox
Large work area, cutter head swivels on 2 levels
Premium electric components plus clean and structured wiring minimize disruptions
Manual central lubrication reduces maintenance and extends the machine life
Swiveling control panel with integrated position indicator

UNIVERSAL MILLING MACHINE

UWF 6

Item No. 362751
Table dimensions
1.600 mm x 360 mm
Travel X-axis
1.300 mm
Spindle mount
SK 50 DIN 2080
  • Included: 3-axis position indicator X.Pos 3.2, Reducing sleeve ISO 50 / MT4, Milling arbor Ø 32 mm all 13 items
Call

Free and without obligation. You will receive price and delivery time by email.

Data sheet (PDF)

Your KNUTH advisory team
Questions about accessories or installation?

Working area
Table dimensions 1.600 mm x 360 mm
Table load capacity (max.) 500 kg
Number of T-slots 3 positions
T-slot (width x spacing) 18 mm x 80 mm
Travels
Travel X-axis 1.300 mm
Travel Y-axis 300 mm
Travel Z-axis 400 mm
Milling Head
Speed range 60 1/min - 1.750 1/min
Spindle mount SK 50 DIN 2080
Swivel angle 360°
Upper beam travel 550 mm
Spindle center-to-table distance 190 mm - 590 mm
Rapid feed
Rapid feed X-axis 1.200 mm/min
Rapid feed Y-axis 800 mm/min
Rapid feed Z-axis 600 mm/min
Horizontal Milling Spindle
Spindle speed (horizontal) 60 1/min - 1.800 1/min
Spindle mount SK 50 DIN 2080
Horizontal spindle-to-table surface distance 20 mm - 420 mm
Spindle axis-to-top beam distance 200 mm
Feed
Feed speed X-axis 30 mm/min - 750 mm/min
Feed speed Y-axis 20 mm/min - 500 mm/min
Feed speed Z-axis 15 mm/min - 375 mm/min
Drive capacity
Motor rating horizontal spindle 5,5 kW
Motor rating vertical spindle 4 kW
Measures and weights
Overall dimensions (length x width x height) 2,52 m x 2,1 m x 2 m
Weight 2.950 kg

This universal milling machine is the biggest model from UWF series and stands out with its rigid construction, large working area, and extended travels on all axes. Designed as a versatile solution, it can easily handle large workpieces and is packed with features like universal milling head, swiveling table, horizontal axis which greatly increases its range of application.

  • Universal cutter head swivels on 2 levels
  • Horizontal milling spindle with its own drive
  • Swiveling milling table
  • Servo-feed on all axes with rapid feed
  • Extensive standard equipment

  • Extremely rigid machine bed made of high-strength HT-200 cast-iron with heavy ribbing
  • Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance
  • The milling table features a large setup area, long X-axis travel, and it can be horizontally swiveled up to 45°
  • Quiet, precision-made headstock gears with hardened and ground gears
  • The universal cutter head swivels on 2 planes, allowing virtually any spatial angle setting
  • Vertical and horizontal spindles each have a separate drive with gearbox for maximum machining power
  • Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle
  • Powerful axis servo-motors allow infinite adjustment of feeds on all 3 axes
  • Minimum downtime due to rapid positioning of work table and rapid feeds in all axes
  • Swiveling control panel with integrated position indicator for maximum operator comfort
  • Coolant system and chip tray are included

3-axis position indicator

  • More accuracy
  • Lower error rate
  • Increased productivity
  • Resulting in valuable time savings
  • For increased productivity
  • Easy to read display
  • Operator-specific features
  • Convenient keyboard layout
  • Resolution: 0.01/ 0.005 mm
  • Default coordinates
  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Calculator function
  • Storage for 10 tools
  • Radius / diameter toggle
  • Mm/inch conversion
  • Easy expansion and maintenance-free operation

3-axis position indicator X.Pos 3.2 Item No.
  • New generation position indicator with integrated turning functions
3-axis position indicator X.Pos 3.2
3-axis position indicator X.Pos 3.2 Item No.
  • New generation position indicator with integrated turning functions
Reducing sleeve ISO 50 / MT4
Reducing sleeve ISO 50 / MT4 Item No.
Milling arbor Ø 32 mm
Milling arbor Ø 32 mm Item No.
Horizontal arbor Ø 27 mm
Horizontal arbor Ø 27 mm Item No.
Outer arbor support for horizontal milling
Outer arbor support for horizontal milling Item No.
Chip tray
Chip tray Item No.
Coolant system
Coolant system Item No.
Work lamp
Work lamp Item No.
Manual central lubrication
Manual central lubrication Item No.
Draw bar
Draw bar Item No.
Operating tools
Operating tools Item No.
Operating manual
Operating manual Item No.
Horizontal arbor Ø 32 mm
Horizontal arbor Ø 32 mm Item No.
