HZP Series

The machines in the HZP series are high-speed hydraulic presses with a stable C-shaped frame design, for producing complex parts with high quality. Their modern structure comprises top-quality components and is machined according to the highest European standards. Operation is user-friendly and is controlled through a state-of-the-art HMI touchscreen operator panel. In addition to a wide range of size and performance levels, we also offer custom solutions to satisfy specific customer requirements.
The machines in the HZP series are high-speed hydraulic presses with a stable C-shaped frame design, for producing complex parts with high quality. Their modern structure comprises top-quality compone...
read more
Models
HZP 60 HZP 100 HZP 150 HZP 200 HZP 250
Pressure force
60 t
100 t
150 t
200 t
250 t
Table dimensions
500 mm x 500 mm
800 mm x 500 mm
900 mm x 600 mm
900 mm x 600 mm
1000 mm x 600 mm
Stroke
400 mm
400 mm
400 mm
400 mm
400 mm
Clear opening
500 mm
500 mm
600 mm
600 mm
600 mm
Approach speed
100 mm/s
100 mm/s
110 mm/s
125 mm/s
125 mm/s
Working speed
10 mm/s
10 mm/s
15 mm/s
12 mm/s
10 mm/s
Return speed
150 mm/s
160 mm/s
150 mm/s
180 mm/s
180 mm/s
Motor rating
7.5 kW
7.5 kW
7.5 kW
15 kW
15 kW
Hydraulic tank volume
22 l
26 l
40 l
64 l
64 l
Overall dimensions (length x width x height)
1.5 m x 1.4 m x 2.6 m
1.6 m x 1.7 m x 2.93 m
2.1 m x 1.8 m x 3.4 m
2.1 m x 1.8 m x 3.4 m
2.1 m x 1.9 m x 3.6 m
Weight
3500 kg
5500 kg
12000 kg
13000 kg
14000 kg
View Machine
View Machine
View Machine
View Machine
View Machine
-
Pressure force
Table dimensions
Stroke
Clear opening
Approach speed
Working speed
Return speed
Motor rating
Hydraulic tank volume
Overall dimensions (length x width x height)
Weight
HZP 60
Pressure force 60 t
Table dimensions 500 mm x 500 mm
Stroke 400 mm
Clear opening 500 mm
Approach speed 100 mm/s
Working speed 10 mm/s
View Machine
HZP 100
Pressure force 100 t
Table dimensions 800 mm x 500 mm
Stroke 400 mm
Clear opening 500 mm
Approach speed 100 mm/s
Working speed 10 mm/s
View Machine
HZP 150
Pressure force 150 t
Table dimensions 900 mm x 600 mm
Stroke 400 mm
Clear opening 600 mm
Approach speed 110 mm/s
Working speed 15 mm/s
View Machine
HZP 200
Pressure force 200 t
Table dimensions 900 mm x 600 mm
Stroke 400 mm
Clear opening 600 mm
Approach speed 125 mm/s
Working speed 12 mm/s
View Machine

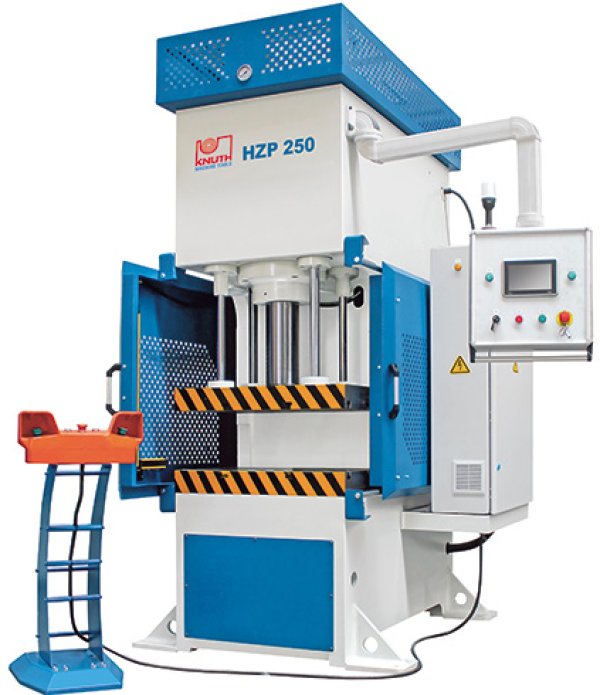

HZP 250
Pressure force 250 t
Table dimensions 1000 mm x 600 mm
Stroke 400 mm
Clear opening 600 mm
Approach speed 125 mm/s
Working speed 10 mm/s
View Machine
