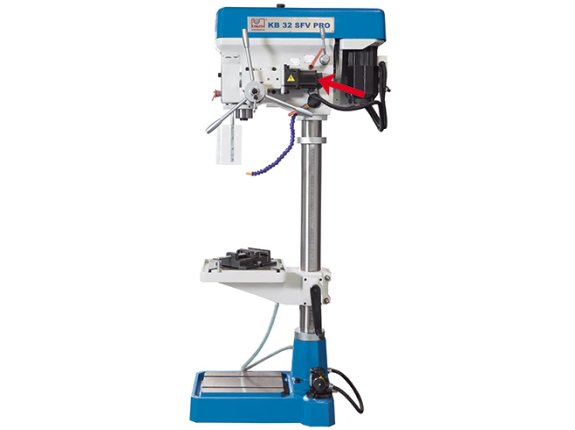

KB 32 SFV PRO - Top model of the KB drilling machines with infinitely variable speed adjustment, automatic feed and touchscreen control panel
Heavy, precision-ground work table features diagonal T-slots

Heavy, precision-ground work table features diagonal T-slots

Infinitely variable feed motor

Infinitely variable feed motor

Rigid design with extended working height

Rigid design with extended working height

Modern operating concept with rugged touchscreen display

Modern operating concept with rugged touchscreen display

Spindle speed infinitely variable

Spindle speed infinitely variable

Premium components ensure high reliability and powerful performance

Premium components ensure high reliability and powerful performance

Dual table clamping for guaranteed stability

Dual table clamping for guaranteed stability

KB 32 SFV PRO - Top model of the KB drilling machines with infinitely variable speed adjustment, automatic feed and touchscreen control panel
Heavy, precision-ground work table features diagonal T-slots
Infinitely variable feed motor
Rigid design with extended working height
Modern operating concept with rugged touchscreen display
Spindle speed infinitely variable
Premium components ensure high reliability and powerful performance
Dual table clamping for guaranteed stability

COLUMN DRILLING MACHINE

KB 32 SFV PRO

Item No. 170464
Drilling capacity
32 mm
Throat depth
245 mm
Spindle mount
3 MT
Motor rating main drive
3 kW
  • Included: Touchscreen control panel, Automatic quill feed, LED work lamp all 10 items
Call

Free and without obligation. You will receive price and delivery time by email.

Data sheet (PDF)

Your KNUTH advisory team
Questions about accessories or installation?

Working area
Drilling capacity 32 mm
Tapping capacity, steel M24
Table set up area 330 mm x 330 mm
Quill stroke 150 mm
Column diameter 100 mm
Throat depth 245 mm
Spindle nose-to-foot distance 1.235 mm
Spindle nose-to-table surface distance 800 mm
Table load capacity 50 kg
Headstock
Speed range, high 400 1/min - 2.250 1/min
Speed range, low 140 1/min - 400 1/min
Spindle mount 3 MT
Feed
Quill feed 24 mm/min - 243 mm/min
Drive capacity
Motor rating main drive 3 kW
Motor rating coolant pump 0,04 kW
Measures and weights
Overall dimensions (length x width x height) 0,9 m x 0,6 m x 1,9 m
Weight 310 kg

The KB SFV Pro Series Drill Presses are the newest versions of the robust, streamlined drill presses with automatic feeds. This series is especially suited for single part productions and manual series production in workshops and industrial operations. These are high-quality machines, and the infinitely variable drive is virtually maintenance-free. The control panel features a touchscreen, so all functions and options are easily accessible.

  • Automatic feed
  • Touchscreen
  • Thread cutting unit

Ideal for drilling, countersinking, reaming and tapping

  • Base, column, table and gear head are made of premium high-quality cast iron
  • Modern design, high-quality cast-iron, and excellent workmanship combined with superior rigidity, function and appearance
  • Heavy, precision-ground work table with diagonal T-slots
  • Large base plate with ground setup area and parallel T-slots
  • Spindle shank and spindle are hardened and ground
  • Robust, low-maintenance belt-driven spindle drive
  • High-performance coolant system integrated in the machine base
  • The standard LED work light is integrated in the drill head for maximum protection and ideal lighting

Electronically Controlled Quill Feed

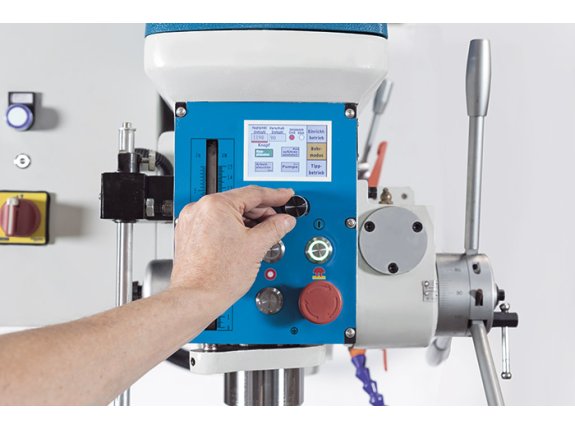

  • The color touchscreen conveniently displays all functions and features a rugged, resistant touch panel
  • The spindle speed can be controlled infinitely variable at the display and is easy to read
  • The automatic quill feed can also be infinitely adjusted and read at the display
  • The depth stop for automatic feed is set mechanically via a robust clamping mechanism
  • If the thread cutting function is enabled, the spindle rotation will automatically reverse upon reaching the set depth

Touchscreen control panel Item No.
Touchscreen control panel
Touchscreen control panel Item No.
Automatic quill feed
Automatic quill feed Item No.
LED work lamp
LED work lamp Item No.
Coolant system
Coolant system Item No.
Drill chuck
Drill chuck Item No.
Tool-holder bit
Tool-holder bit Item No.
Drill press vise
Drill press vise Item No.
Thread cutting function
Thread cutting function Item No.
  • The tapping mode can be selected from the control panel
  • In this mode, when the selected thread depth is reached, the machine automatically changes the direction of rotation of the main spindle
Operating tools
Operating tools Item No.
Operator manual
Operator manual Item No.
