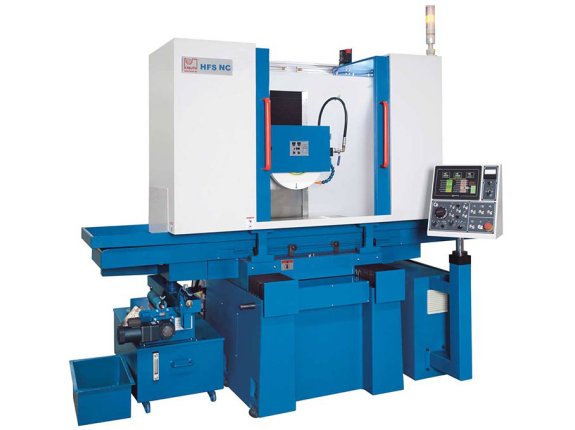

HFS 104 NC - High precision surface grinder with automatic cycles, including wheel dressing compensation

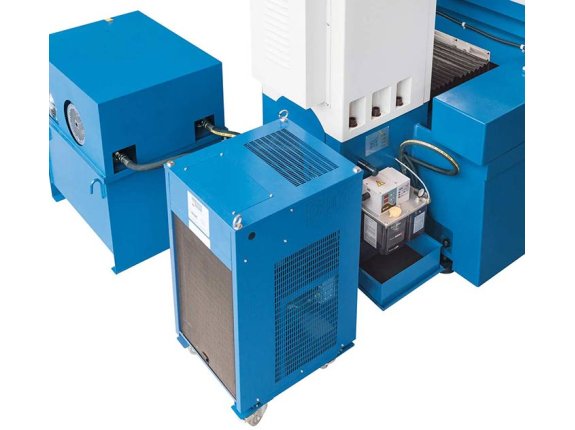

External hydraulic unit and oil cooler ensure thermal stability during continuous operation

External hydraulic unit and oil cooler ensure thermal stability during continuous operation

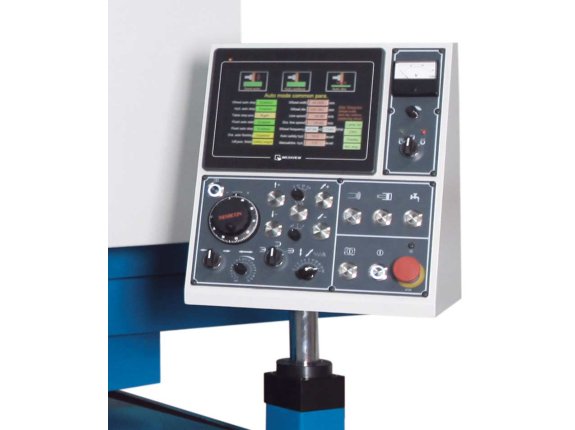

Touchscreen display for easy programming of grinding cycles

Touchscreen display for easy programming of grinding cycles

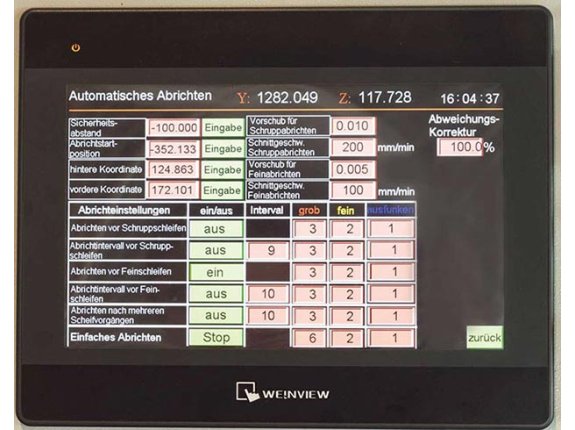

Dressing mode for grinding wheels with automatic dimension and speed (rpm) compensation ensures constant grinding rate and can be entered while in

Dressing mode for grinding wheels with automatic dimension and speed (rpm) compensation ensures constant grinding rate and can be entered while in

HFS 104 NC - High precision surface grinder with automatic cycles, including wheel dressing compensation
External hydraulic unit and oil cooler ensure thermal stability during continuous operation
Touchscreen display for easy programming of grinding cycles
Dressing mode for grinding wheels with automatic dimension and speed (rpm) compensation ensures constant grinding rate and can be entered while in

CONVENTIONAL GRINDING MACHINE

HFS 104 NC

Item No. 122425
Grinding wheel dimensions
400 mm x 127 mm x 40 mm
Dimensions magnetic clamping plate
1.000 mm x 400 mm
Travel X-axis
1.120 mm
Motor rating main drive
5,5 kW
  • Included: Magnetic clamping plate, Coolant system with magnetic separator, Central lubrication all 10 items
Call

Free and without obligation. You will receive price and delivery time by email.

Data sheet (PDF)

Your KNUTH advisory team
Questions about accessories or installation?

Working area
Grinding area (max.) 1.020 mm x 400 mm
Workpiece weights incl. magnetic clamping plate (max.) 680 kg
Spindle axis-to-table surface distance 640 mm
Dimensions magnetic clamping plate 1.000 mm x 400 mm
T-slots, width 14 mm
Number of T-slots 3 positions
Division (electronic hand-wheel) Y-axis 0,001 / 0,005 / 0,01 mm
Travels
Travel X-axis 1.120 mm
Travel Z-axis 430 mm
Headstock
Spindle speed 500 1/min - 2.300 1/min
Rapid feed
Rapid feed Y-/Z-axis 0 mm/min - 1.200 mm/min
Feed
Feed per rotation (electronic hand-wheel) - Y-axis 0,1 / 0,5 / 1,0 mm
Feed per rotation (electronic hand-wheel) - Z-axis mm
Feed speed - X axis (hydraulic) min. 3 / max. 25 m/min
Feed speed Z-axis 0 mm/min - 1.200 mm/min
Autom. feed - Micro-feed Y-axis 0,001 mm - 0,01 mm
Autom. feed - Coarse feed Y-axis 0,005 mm - 0,04 mm
Automatic Z-axis feed 0,1 mm - 25 mm
Drive capacity
Motor rating main drive 5,5 kW
Motor rating hydraulic pump 2,2 kW
Motor rating coolant pump 0,18 kW
Z and y axis servo motor 0,55 / 0,55 kW
Measures and weights
Grinding wheel dimensions 400 mm x 127 mm x 40 mm
Overall dimensions (length x width x height) 3,8 m x 2 m x 2,5 m
Weight 3.050 kg

The HFS NC series is a solution for automatic and semi-automatic surface and flute grinding. This machine offers advantages in terms of precision and efficiency thanks to grinding cycles that can be easily programmed via the touchscreen and the automatic grinding wheel dressing mode. This can be inserted into the machining cycles and compensates dimensions and speed fully automatically. The option of switching between semi-automatic and automatic operation also extends the range of applications from repair workshops and training to series production.

  • Automatic grinding wheel dressing cycle
  • Magnetic table and built-in demagnetization feature
  • Vertical axis with ball screw and servo motor for high precision
  • Easy auto-mode programming
  • Extensive standard equipment package

  • Designed for continuous operation at maximum speed, very quiet operation, maximum accuracy and minimal heat accumulation ensure optimum machining results

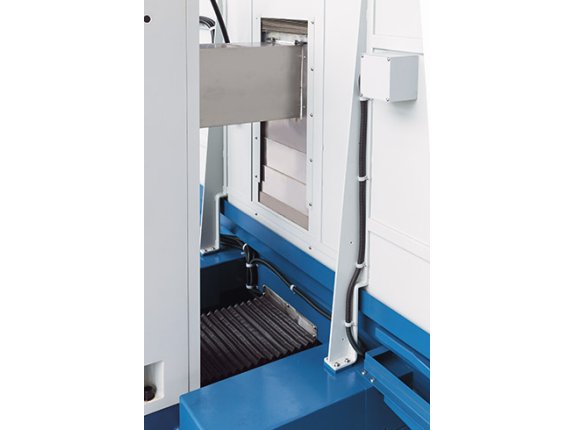

  • Dual guides for linear table motion
  • Spindle head and Z-axis move on precision linear guides with preloaded ball screws
  • Servo drives on Y- and Z-axis and hydraulic linear table movement can be adjusted via an infinitely variable electronic proportional valve for precise and consistent feed
  • 3-step electronic hand-wheel allows for precise positioning of the Y- and Z-axis
  • The heavy-duty, rigid grinding spindle head features maintenance-free preloaded high-precision angular ball bearings
  • External hydraulic unit and large oil cooler ensures thermal stability
  • Automatic central lubrication system
  • All models of this series, except HFS 160 NC, feature a fully enclosed workspace

Magnetic clamping plate Item No.
Magnetic clamping plate
Magnetic clamping plate Item No.
Coolant system with magnetic separator
Coolant system with magnetic separator Item No.
Central lubrication
Central lubrication Item No.
Hydraulic oil cooler
Hydraulic oil cooler Item No.
Grinding wheel flange
Grinding wheel flange Item No.
Diamond dresser with holder
Diamond dresser with holder Item No.
Balancing station
Balancing station Item No.
Setup feet
Setup feet Item No.
Tool box
Tool box Item No.
Operator manual
Operator manual Item No.
  • Intuitive dialog-guided programming for automatic and semi-automatic grinding and dressing of grinding wheels, optimized for surface grinding
  • Programming of grinding cycles via touchscreen
  • Easy adjustment of important parameters and feed rates during machining
  • Automatic function monitoring and error messages on the display
cooling water with magnetic and tape filtration for HFS NC
cooling water with magnetic and tape filtration for HFS NC Item No. 251573
cooling water with magnetic and tape filtration for HFS NC
