Roturn M Series

This ROTURN M Series machine has all the features of a classic compact CNC production lathe. Modern, rigid inclined-bed design with linear guides on all axes, powered collet chuck and hydraulically moved tailstock quill. Including C-axis, 12-station tool turret, and driven tools for axial and radial drilling and milling A link conveyor for chip removal and a highly efficient coolant system complete the equipment package. The Siemens 828 D Basic control meets all requirements for advanced control technology.
This ROTURN M Series machine has all the features of a classic compact CNC production lathe. Modern, rigid inclined-bed design with linear guides on all axes, powered collet chuck and hydraulically mo...
read more
Models
Workpiece length (max.)
340 mm
340 mm
Travel X-axis
150 mm
150 mm
Travel Z-axis
400 mm
380 mm
Lathe chuck diameter
200 mm
250 mm
Speed range
50 1/min - 3000 1/min
50 1/min - 2000 1/min
Spindle mount
A2-6
A2-8
Spindle bore
62 mm
86 mm
Spindle bore with draw tube
47 mm
75 mm
Number of tool stations
12 positions
12 positions
Main motor rating
15 / 11 kW
15 / 11 kW
-
Workpiece length (max.)
Travel X-axis
Travel Z-axis
Lathe chuck diameter
Speed range
Spindle mount
Spindle bore
Spindle bore with draw tube
Number of tool stations
Main motor rating
Roturn 400 M
Workpiece length (max.) 340 mm
Travel X-axis 150 mm
Travel Z-axis 400 mm
Lathe chuck diameter 200 mm
Speed range 50 1/min - 3000 1/min
Spindle mount A2-6
View Machine

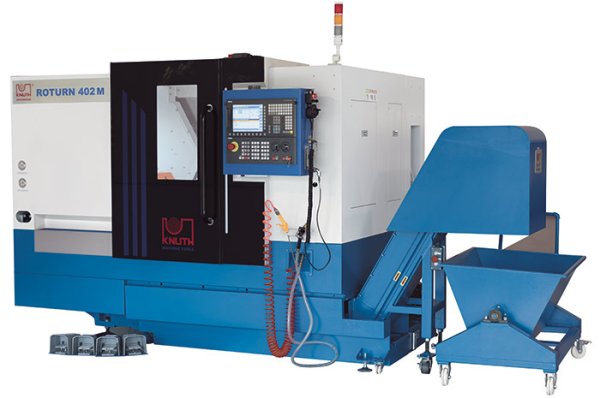

Roturn 402 M (Si 828D) Inclined Bed Lathe
Workpiece length (max.) 340 mm
Travel X-axis 150 mm
Travel Z-axis 380 mm
Lathe chuck diameter 250 mm
Speed range 50 1/min - 2000 1/min
Spindle mount A2-8
View Machine
