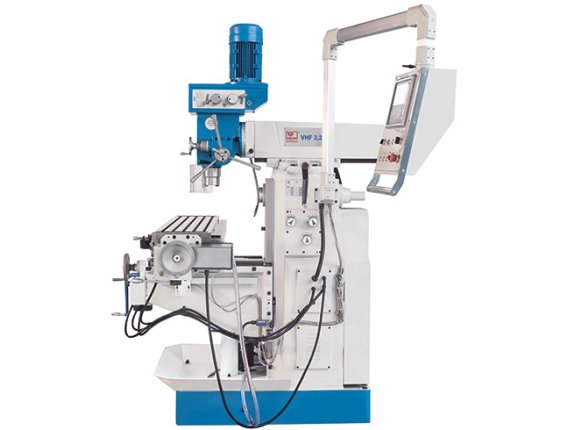

VHF 2.2 - Universal milling machine with swiveling cutter head,
automated feed in X and Y axes, horizontal spindle
and extensive standard equipment
VHF 2.2 - Universal milling machine with swiveling cutter head,
automated feed in X and Y axes, horizontal spindle
and extensive standard equipment

VHF 2.2

SKU : 362651

VHF series machines feature large travels, a vertical and horizontal spindle with separate drives for powerful machining The vertical head swivels out (±45°) and the quill is movable. All models of this series are ideally suited for applications in repair shops or training shops.

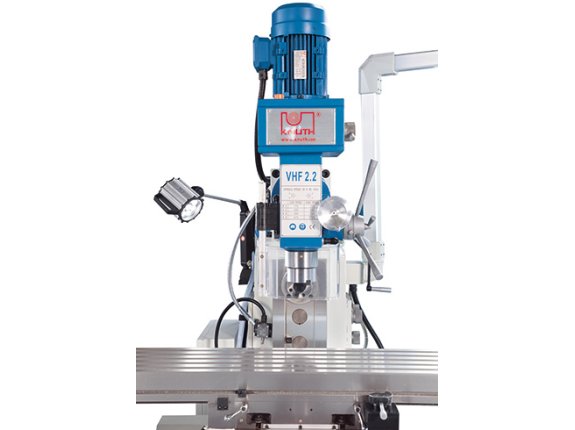

  • Tilting vertical milling head
  • Automatic feed in X and Y axes
  • Horizontal spindle with counter holder
  • Extensive package of standard accessories
Working area
Drilling capacity in steel 30 mm
Max. end mill diameter 25 mm
Tapping capacity, steel M 16
Max. end face mill diameter 100 mm
Table set up area 1270 mm x 280 mm
Table load capacity (max.) 150 kg
Travels
Travel X-axis 700 mm
Travel Y-axis 210 mm
Travel Z-axis 310 mm
Vertical milling head
Spindle speed (vertical) 115 1/min - 1750 1/min
Spindle mount SK 40 DIN 2080
Quill stroke 120 mm
Throat 200 mm - 650 mm
Spindle nose-to-table surface distance 50 mm - 375 mm
Milling head swivel range 45 deg
Rapid feed
Rapid feed Z-axis 380 mm/min
Horizontal Milling Spindle
Spindle speed (horizontal) 40 1/min - 1300 1/min
Spindle mount ISO 40
Horizontal spindle-to-table surface distance 0 mm - 310 mm
Feed
Feed speed X-axis 16 mm/min - 380 mm/min
Feed speed Y-axis 0 mm/min - 700 mm/min
Drive capacity
Motor rating horizontal spindle 2,2 kW
Motor rating vertical spindle 0,85 kW - 1,5 kW
Measures and weights
Overall dimensions (length x width x height) 1,7 m x 1,45 m x 2,45 m
Weight 1400 kg

  • This excellent price/performance ratio is made possible by high volume production with standardized VHF assemblies
  • Extremely rigid machine bed made of high-strength cast-iron with heavy ribbing
  • Precision-ground guideways with hardened surfaces for long-term accuracy and wear-resistance
  • The milling table features a large setup area
  • Vertical and horizontal spindles each have a separate drive with gearbox for maximum machining power
  • The vertical head swivels to both sides (± 45°), quill feed through capstan or with fine feed hand wheel
  • When working with the horizontal spindle, the complete top beam/head assembly can be rotated ±180° on the column
  • Standard outer arbor support with bronze plain bearings accommodates long milling arbors in the horizontal spindle
  • Feed system with manual gearbox on X-axis and infinitely variable feed unit on the Y-axis
  • Height adjustment of the work table via automatic feed - precision feed via smooth hand crank
  • Swiveling control panel with integrated position indicator for maximum operator comfort
  • Coolant system and chip tray are included

3-axis position indicator X.Pos 3.2 SKU:
  • New generation position indicator with integrated turning functions
3-axis position indicator X.Pos 3.2
3-axis position indicator X.Pos 3.2 SKU:
  • New generation position indicator with integrated turning functions
Coolant system
Coolant system SKU:
Work lamp
Work lamp SKU:
Operating tools
Operating tools SKU:
Operator instructions
Operator instructions SKU:
M16 draw bar
M16 draw bar SKU:
Outer arbor support for horizontal milling
Outer arbor support for horizontal milling SKU:
Chip tray
Chip tray SKU:
Cutter arbor Ø 27 mm
Cutter arbor Ø 27 mm SKU:
