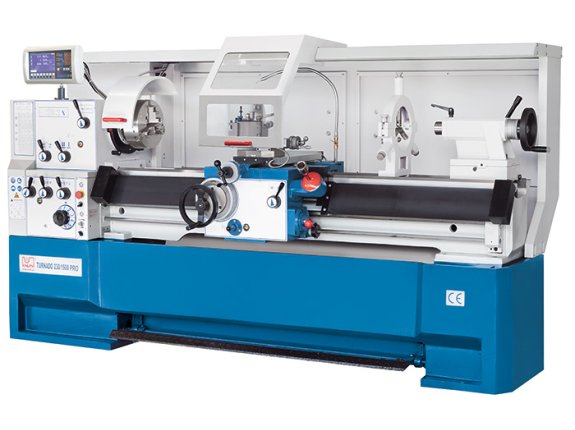

Turnado 230/1000 PRO - Top model of the Turnado series with infinitely variable spindle speed and constant cutting speed, as well as rapid traverse and modern ergonomic design
The extensive features of the X.Pos Position Indicator are complemented with a digital speed indicator and an easy to program auxiliary function

The extensive features of the X.Pos Position Indicator are complemented with a digital speed indicator and an easy to program auxiliary function

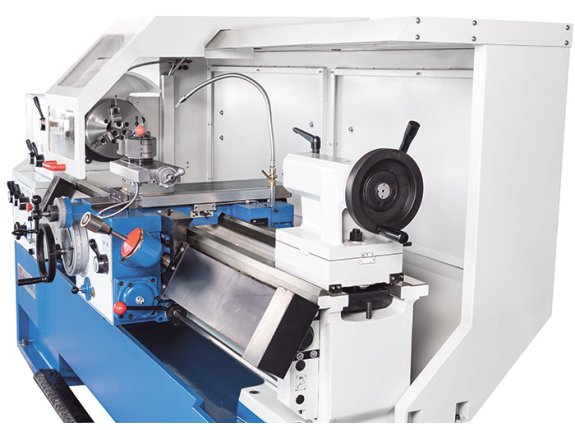

The tailstock can be repositioning for conical turning

The tailstock can be repositioning for conical turning

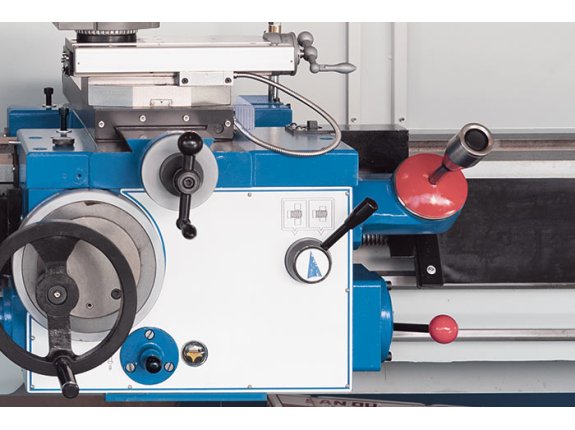

Support moves in linear and cross direction via motorized rapid feed for reduced down-time

Support moves in linear and cross direction via motorized rapid feed for reduced down-time

Turnado 230/1000 PRO - Top model of the Turnado series with infinitely variable spindle speed and constant cutting speed, as well as rapid traverse and modern ergonomic design
The extensive features of the X.Pos Position Indicator are complemented with a digital speed indicator and an easy to program auxiliary function
The tailstock can be repositioning for conical turning
Support moves in linear and cross direction via motorized rapid feed for reduced down-time

ENGINE LATHE

Turnado 230/1000 PRO

Item No. 320562
Turning-Ø over bed
460 mm
Center width
1.000 mm
Spindle bore
58 mm
Motor rating main drive
7,5 kW
  • Included: 3-axis position indicator, X.pos 3.2 VC, Quick-change toolpost head WB, Quick change tool holder WBD 25120 all 20 items
Call

Free and without obligation. You will receive price and delivery time by email.

Data sheet (PDF)

Your KNUTH advisory team
Questions about accessories or installation?

Working area
Center width 1.000 mm
Center height 230 mm
Turning-Ø over bed 460 mm
Turning diameter over gap bridge 690 mm
Turning-Ø over support 274 mm
Gap bridge length 155 mm
Bed width 300 mm
Travels
Travel X-axis 285 mm
Travel Z1-axis 128 mm
Swing range of top slide ± 52°
Headstock
Speed range, low 30 1/min - 600 1/min
Speed range, high 600 1/min - 3.000 1/min
Spindle bore 58 mm
Spindle mount Camlock D1-6
Spindle taper 6 MT
Feed
Feed X-axis 0,025 mm/R - 1,384 mm/R
Feed Z-axis 0,055 mm/R - 3,061 mm/R
Threading
Threading, metric 0,1 mm - 14 mm
Threading, diametric (50) 4-112 DP
Threading, module 0,1 mm - 7 mm
Threading, whitworth (60) 2-112 TPI
Tailstock
Tailstock quill diameter 60 mm
Tailstock taper MK 4
Tailstock quill stroke 120 mm
Tailstock traverse adjustment ± 13 mm
Drive capacity
Motor rating main drive 7,5 kW
Measures and weights
Overall dimensions (length x width x height) 2,2 m x 1,08 m x 1,57 m
Weight 1.720 kg

The machines of the Turnado PRO series are the modern version of the classic lathe. The PRO models are the latest generation of our universal lathes, which have been tried and tested for 20 years. With constant cutting speed, rapid traverses and an extended speed range that can be controlled by an inverter, these models are characterized by high-performance machining, excellent surface quality and time efficiency. They are easy to recognize by the new ergonomic cladding design, which integrates all functions into an overall concept.

  • Infinitely variable speed range
  • Apron with rapid feed motor
  • Extensive standard equipment
  • Constant cutting speed

  • With a new apron design, rapid feed and a modern ergonomic machine frame, the Turnado Lathe PRO series continues its success story
  • A heavily ribbed machine bed, rigid headstock and a massive one-piece cast-iron stand form a solid machine base
  • Removable bridge allows machining of short workpieces with large diameters
  • Back-gearing and an advanced electronic control technology of the powerful main spindle drive ensure high torque and a wide range of speeds
  • High-precision pre-loaded spindle bearings ensure superior concentricity and load capacity
  • All guides are adjustable
  • Gears, transmission shafts, and guideways are hardened and ground to guarantee quiet operation and long tool life
  • The apron runs in an oil bath for low maintenance and high reliability
  • A central lubrication system inside the support supplies all guideways with lubrication and simplifies maintenance
  • Micrometer bed stop ensures high repeatability on the Z-axis
  • The tailstock can be adjusted sideways for taper turning
  • The extensive features of the X.Pos Position Indicator are complemented here with a digital speed indicator and an easy to program auxiliary function
  • Constant cutting speed: During face turning, the spindle speed automatically adapts to the changing workpiece diameter – the constant cutting speed at the cutting edge of the turning tool ensures superior turning results with quality comparable to CNC lathes

3-axis position indicator, X.pos 3.2 VC Item No.
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.

Basic Functions

  • Resolution of 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function

Constant cutting speed

  • Allows you to have constant cutting speed during - the spindle speed automatically adjusts based on the turning diameter
3-axis position indicator, X.pos 3.2 VC
3-axis position indicator, X.pos 3.2 VC Item No.
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.

Basic Functions

  • Resolution of 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function

Constant cutting speed

  • Allows you to have constant cutting speed during - the spindle speed automatically adjusts based on the turning diameter
Quick-change toolpost head WB
Quick-change toolpost head WB Item No.

High quality German type quick change tool holder to easily switch the tools with a repeat accuracy of 0,01 mm.

Quick change tool holder WBD 25120
Quick change tool holder WBD 25120 Item No.
  •  Tool holder WBD 25120
  •  Side 25×120 mm
Rapid traverse for X- and Z-axis
Rapid traverse for X- and Z-axis Item No.

Joystick control for X and Z feeds is mounted directly on the support

3-jaw chuck Ø 250 mm
3-jaw chuck Ø 250 mm Item No.
  • self-centering 3 jaw chuck
  • size of Ø 250 mm
  • made of cast iron
  • delivered with one set of hard jaws
4-jaw face plate chuck Ø 300 mm
4-jaw face plate chuck Ø 300 mm Item No.
  • independent 4 jaw chuck
  • size of Ø 300 mm
  • made of cast iron
  • delivered with one set of hard jaws
Face plate Ø 350 mm
Face plate Ø 350 mm Item No.

Face plate diam. Ø350 mm

Follow and steady rests
Follow and steady rests Item No.
  • Steady rest - max. workpiece diameter: Ø140 mm
  • Follow rest - max. workpiece diameter: Ø110 mm
Coolant system
Coolant system Item No.
Micrometer longitudinal stop
Micrometer longitudinal stop Item No.

Increases the precision of operations and reduces downtimes spent for part measuring.

Thread gauge
Thread gauge Item No.
Reducing sleeve
Reducing sleeve Item No.
Dead center
Dead center Item No.
Traveling cover for the toolpost
Traveling cover for the toolpost Item No.
Chuck guard
Chuck guard Item No.
Foot brake pedal
Foot brake pedal Item No.
Fixed splash guard (wall)
Fixed splash guard (wall) Item No.
Work light
Work light Item No.
Tool kit
Tool kit Item No.
Operating manual
Operating manual Item No.

3-axis position indicator, X.pos 3.2 VC

  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • Integrating multiple functions, this new generation of 3 axis digital readouts significantly offer a much better control over the machining processes, greatly decreasing down-times and error rates
  • It features a totally sealed enclosure made of high quality polyester film which protects it against hazardous enviroments in shop floors, such as dust or fumes and offers excellent chemical resistance to most commonly used industry solvents
  • The optical scales provide 5 micron resolution (0.005 mm) with outside cover from aluminum for protection against oil, coolant and chips.

Basic Functions

  • Resolution of 0,005 mm
  • Spindle control ON/OFF
  • Unit measurement conversion Inch / Metric
  • Setting / Reseting current position
  • Coordinate display switching ABS / INC
  • Radius / Diameter display
  • Z1/Z2 Axes summing
  • Pocket calculator functions

Extended Functions

  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Radius / diameter toggle
  • Reference function for tool gauging
  • Taper turning function

Constant cutting speed

  • Allows you to have constant cutting speed during - the spindle speed automatically adjusts based on the turning diameter
