RSM 500 A - Inside and outside machining with manual feed on transverse axis

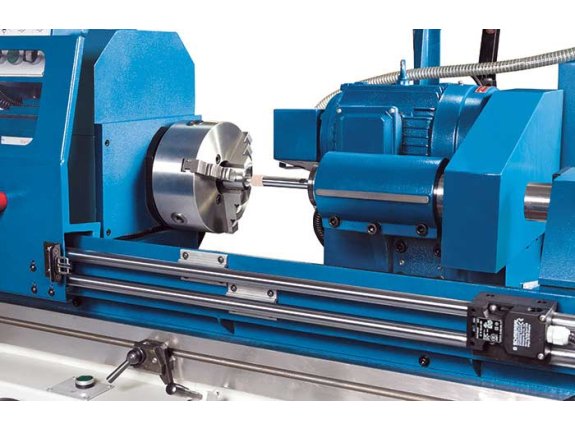

Grinding headstock can be rotated 180º to change from inside to outside grinding

Grinding headstock can be rotated 180º to change from inside to outside grinding

RSM 500 A - Inside and outside machining with manual feed on transverse axis
Grinding headstock can be rotated 180º to change from inside to outside grinding

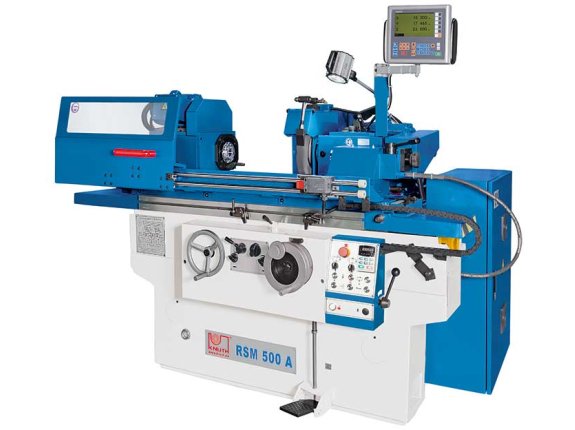

RSM 500 A

SKU : 302430

The machine frames of the RSM series are characterized by a heavy design and long, supporting guideways. The table can be swiveled and the finely adjustable hydraulic feed moves smoothly in the longitudinal direction. A large scale ring on the handwheel of the X-axis facilitates precise infeed and the zero stop guarantees compliance with the desired dimension. The standard position indicator with linear scales is used to check the actual values. The headstock is rotated 180 degrees for internal grinding. An extensive accessory package is standard.

  • Internal and external grinding
  • Hydrostatic bearings for high surface quality
  • Swiveling headstock for conical grinding of short parts
  • Integrated rapid feed on Z-axis with manual return
  • Extensive package of standard accessories
Working area
Center height 135 mm
Workpiece length (max.) 640 mm
Grinding length 500 mm
Grinding diameter 8 mm - 200 mm
Inside grinding diameter without rest 25 mm - 100 mm
Workpiece weight between centers (max.) 50 kg
Inside grinding depth 125 mm
Table swivel range (max.) -3° / +9° R / L
Wheel speeds 38 m/s
Feed
Table feed, infinitely variable 0,1 m/min - 4 m/min
Feed per scale division X-axis 0,005 mm
Headstock
Work spindle speeds 25 1/min - 380 1/min
Working headstock swivel range 0-45°
Spindle taper 4 MT
Grinding headstock
Inside grinding spindle speed 16000 1/min
Grinding headstock swivel range (r+l) ± 30°
Tailstock
Tailstock taper 4 MT
Drive capacity
Total power consumption 5,625 kVA
Measures and weights
Grinding wheel dimensions 400 mm x 50 mm x 203 mm
Grindstone dimensions, inside grinding (max.) 50 mm x 40 mm x 16 mm
Grindstone dimensions, inside grinding (min.) 45 mm x 35 mm x 10 mm
Overall dimensions (length x width x height) 2,5 m x 1,6 m x 1,5 m
Weight 2500 kg

  • Proven and extremely rigid machine frame made of premium cast-iron - this machine’s high intrinsic weight, diligent design and production create optimum conditions for excellent grinding and sanding results
  • Hydraulic linear feed features very precise, infinitely variable micro-feed
  • High-precision guideways of linear and transverse movement consisting of combined V-guides and box ways
  • Hydraulic adjustment of the grinding headstock simplifies set-up, workpiece exchanges and reduces downtime
  • Grinding spindle with segmented high-precision bearing, adjustable and low maintenance
  • Work spindle speeds are infinitely variable and can be easily adjusted and optimized during the machining process
  • Machine table swivels for taper grinding
  • Hydraulic tailstock with foot switch
