HB 250 A - Affordable workshop bandsaw with quick action clamping and mitre cutting
HB 250 A - Affordable workshop bandsaw with quick action clamping and mitre cutting

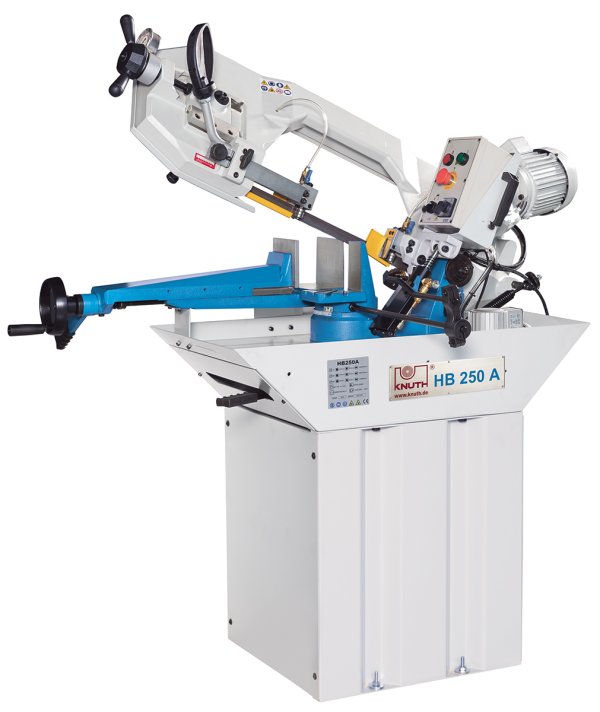

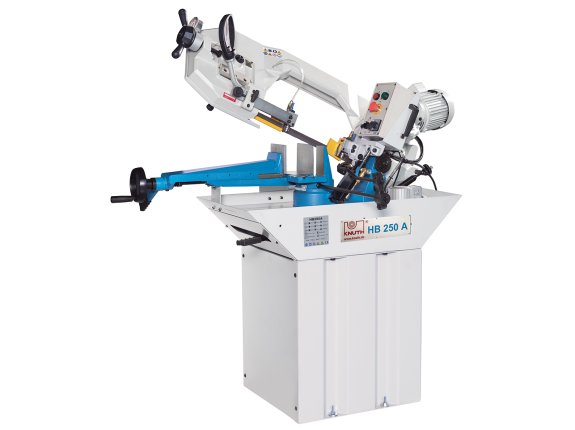

HORIZONTAL MITRE CUTTING BANDSAW

HB 250 A

SKU : 152796

The compact horizontal band saw with one-piece saw frame made of gray cast iron is suitable for mitre cuts and is a handy solution for every workshop.

  • Cast-iron saw frame, one-piece construction
  • Two speeds for cutting optimization
  • Vise with quick-action clamping feature
Working area
Working height 910 mm
Cutting Capacities
Cutting capacity 0° (round) 225 mm
Cutting capacity 0° (flat) 245 mm x 150 mm
Cutting capacity 45° (round) 145 mm
Cutting capacity 45° (flat) (length x width) 190 mm x 150 mm
Cutting capacity 60° - round 90 mm
Belt speed 40 / 90 m/min
Drive capacity

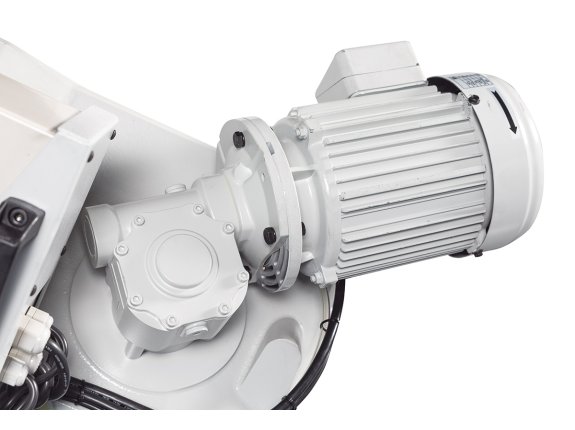

Main motor rating 1,1 kW
Measures and weights
Overall dimensions (length x width x height) 1,36 m x 0,58 m x 0,9 m
Weight 185 kg

  • Cast-iron saw frame, one-piece construction

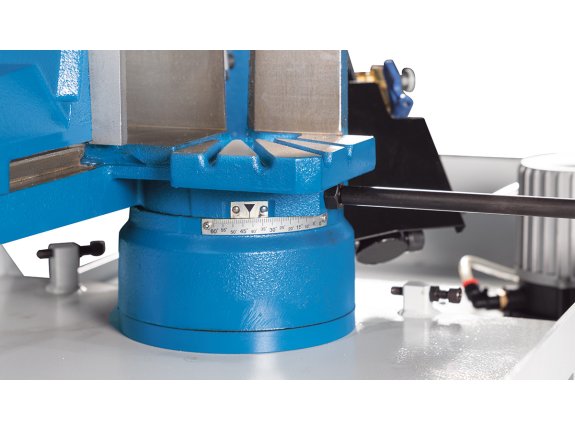

  • For mitre cuts, the operator moves the saw frame - not the material

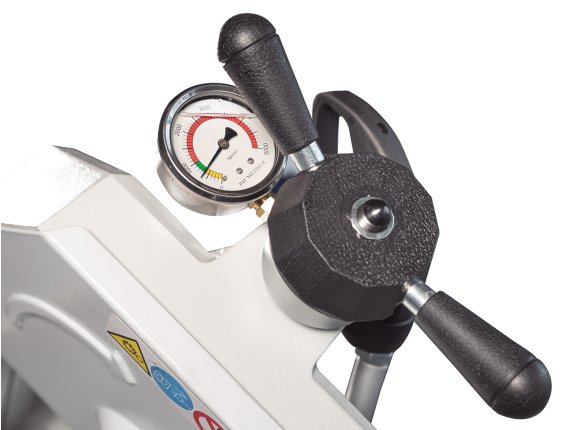

  • Hydraulic cylinder provides for infinitely variable support pressure and saw frame feed (HB 210 A / HB 250 A)
  • Vise with quick-action clamping feature

1 saw blade SKU:
1 saw blade
1 saw blade SKU:
Coolant system
Coolant system SKU:
Base
Base SKU:

Machine base with storage space

Hydraulic cylinder for saw frame
Hydraulic cylinder for saw frame SKU:
Operator instructions
Operator instructions SKU:
Quick-action vise
Quick-action vise SKU:

Resources & Downloads

Optional Accessories

Explore the range of compatible accessories in stock

Bandsaw Blades Bi-metal band saw blade, 2480x27x0.9 mm, 3/4 teeth
SKU : 119858
Roller Conveyor Feed roller track, 1000 mm
SKU : 170360
Roller Conveyor Feed roller track, 2000 mm
SKU : 170361
Roller Conveyor Feed roller track, 3000 mm
SKU : 170362
Roller Conveyor Discharge roller track, 1000 mm
SKU : 170363
Roller Conveyor Discharge roller track, 2000 mm
SKU : 170364
Roller Conveyor Discharge roller track, 3000 mm
SKU : 170365
