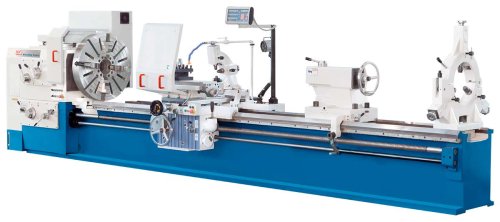

DL S 515/4000 - Designed for large workpieces, with a powerful motor and with a rapid feed on X and Z axes
For quick positioning and reduced down-times, the support is equipped with a rapid feed on X and Z

For quick positioning and reduced down-times, the support is equipped with a rapid feed on X and Z

Rigid rests are included in the machine's standard equipment

Rigid rests are included in the machine's standard equipment

Support and top slide are designed for high cutting forces

Support and top slide are designed for high cutting forces

DL S 515/4000 - Designed for large workpieces, with a powerful motor and with a rapid feed on X and Z axes
For quick positioning and reduced down-times, the support is equipped with a rapid feed on X and Z
Rigid rests are included in the machine's standard equipment
Support and top slide are designed for high cutting forces

HEAVY-DUTY LATHE

DL S 515/4000

Item No. 301516
Turning diameter over bed
1.000 mm
Workpiece length (max.)
4.000 mm
Spindle bore
100 mm
Motor rating main drive
22 kW
  • Included: 3-axis position indicator X.Pos 3.2, 4-jaw face plate chuck Ø 1000 mm, 4-station tool holder all 14 items
Call

Free and without obligation. You will receive price and delivery time by email.

Data sheet (PDF)

Your KNUTH advisory team
Questions about accessories or installation?

Working area
Workpiece length (max.) 4.000 mm
Turning diameter over bed 1.000 mm
Turning-Ø over support 720 mm
Turning diameter over gap bridge 1.350 mm
Workpiece weight (max.) 4.000 kg
Gap bridge length 470 mm
Bed width 600 mm
Travels
Travel X-axis 520 mm
Travel Z-axis 3.700 mm
Travel Z1-axis 250 mm
Swing range of top slide 90°
Headstock
Spindle speed 5 1/min - 630 1/min
Spindle bore 100 mm
Spindle mount A2-11
Rapid feed
Rapid feed X-axis 1.800 mm/min
Rapid feed Z-axis 3.640 mm/min
Feed
Feed speed X-axis 0,04 mm/min - 4,8 mm/min
Feed speed Z-axis 0,08 mm/min - 9,6 mm/min
Feed speed Z1-axis 0,02 mm/min - 2,4 mm/min
Tooling
Tool shank dimensions 32 mm x 32 mm
Threading
Threading, metric (53) 1-120 mm
Threading - inch (49) 30 - 1/4
Threading, diametric (56) 60-0,5 DP
Threading, module (54) 0,5 - 60 mm
Tailstock
Tailstock quill diameter 120 mm
Tailstock taper 6 MT
Tailstock quill stroke 250 mm
Drive capacity
Motor rating main drive 22 kW
Motor rating coolant pump 0,15 kW
Motor rating feed 1,1 kW
Total power consumption 23 kVA
Measures and weights
Overall dimensions (length x width x height) 6,15 m x 1,5 m x 1,6 m
Weight 8.400 kg

The DL S lathe series is slightly smaller than the DL E Heavy, but is also designed for large turning diameters and workpiece lengths. It is the solution for conventional machining of workpieces up to 5000 mm (197 in.) in length and over 720 mm (28 in.) in diameter. The particularly wide and heavily ribbed machine bed accommodates the heavy workpiece weights. The multi-disc clutch gives the operator control over the dynamics of the spindle start-up and the rapid traverse in the support is particularly effective with large bed lengths.

  • Center widths up to 5000 mm
  • Spindle bore of 100 mm
  • Powerful motor
  • Spindle speed can be adjusted in 4 steps
  • Rapid feed in X and Z direction
  • Complete with assembled 3-axis position indicator

  • Extra heavy, wide machine bed with heavy ribbing and one-piece mono-block construction
  • Induction-hardened and ground guide slots ensure long-term accuracy and minimum wear
  • Massive headstock with high-precision main spindle on a tapered roller bearing with 100 mm spindle bore for excellent stability under heavy loads
  • Very quiet operation at maximum spindle speed
  • Joystick control for X and Z feeds is mounted directly to support
  • Manually shifted 4-step gearbox with hiqh-quality frequency control combined with a powerful main spindle motor allow exact tuning of rpm and high torque to provide maximum power even under heaviest loads
  • Rapid feed for X and Z axis allow quick support positioning and less down-time
  • Adjustable overload clutch in apron protects the feed mechanics from damages and failures
  • Central, practical controls for feeds and thread leads
  • The auxiliary gearbox features a wide spectrum of diametric, inch, module, and metric threads
  • Support and top slide are designed for high cutting forces
  • More accuracy
  • Lower error rate
  • Increased productivity
  • Resulting in valuable time savings
  • For increased productivity
  • Easy to read display
  • Operator-specific features
  • Convenient keyboard layout
  • Resolution: 0.01/ 0.005 mm
  • Default coordinates
  • Axis position is maintained when display is turned off
  • Hole circle pattern calculation
  • Calculator function
  • Storage for 10 tools
  • Radius / diameter toggle
  • Mm/inch conversion
  • Easy expansion and maintenance-free operation
  • Display for top (Z0) and box way slide (Z1) both separate and in differential / cumulative mode for lathes

3-axis position indicator X.Pos 3.2 Item No.
  • New generation position indicator with integrated turning functions
3-axis position indicator X.Pos 3.2
3-axis position indicator X.Pos 3.2 Item No.
  • New generation position indicator with integrated turning functions
4-jaw face plate chuck Ø 1000 mm
4-jaw face plate chuck Ø 1000 mm Item No.
  • independent4 jaw chuck
  • size of Ø 1.000 mm
  • made of cast iron
  • delivered with one set of hard jaws
4-station tool holder
4-station tool holder Item No.
  • classic 4 station tool holder
  • section size 45×45
Steady rest 50-470 mm
Steady rest 50-470 mm Item No.
Follow rest 30-120 mm
Follow rest 30-120 mm Item No.
Dead centers
Dead centers Item No.
Reducing sleeve
Reducing sleeve Item No.
Chuck guard
Chuck guard Item No.

Chuck guard with integrated interlock system

Protective shield for the toolpost
Protective shield for the toolpost Item No.
Coolant system
Coolant system Item No.
Foundation bolts
Foundation bolts Item No.
Work lamp
Work lamp Item No.
Operating tools
Operating tools Item No.
Operating manual
Operating manual Item No.
Steady rest (300 - 720 mm)
Steady rest (300 - 720 mm) Item No. 251160
Steady rest (300 - 720 mm)
Motorized tailstock movement Item No. 251161
Motorized tailstock movement
3-jaw chuck (500 mm) Item No. 251162
3-jaw chuck (500 mm)
